      Adafruit 2180 (EDI1ARDUIN.AL.K)

      Intel® Edison Kit w/ Arduino Breakout Board (Adafruit 2180,  DEV-13097)

      Množstvo:

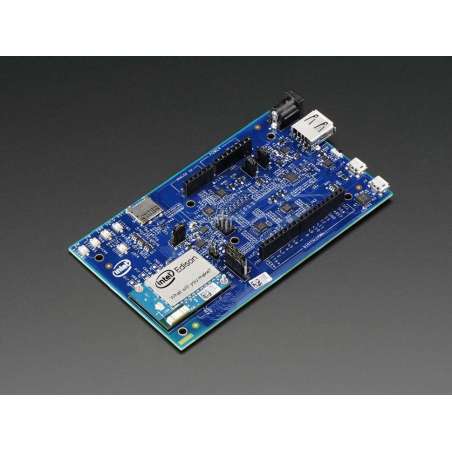

      Intel® Edison Kit w/ Arduino Breakout Board (Adafruit 2180)

      Edison: Standard Power On Board Antenna + Arduino  (EDI1ARDUIN.AL.K)

      • Te Intel® Edison kit for Arduino is a compact computing platform that's small by design so you can easily integrate it into projects.  It's primarily designed for "Internet of Things" projects and is pretty powerful for its small size.

        The Edison has a bunch of features that makes it appealing for makers of all skill levels.  It uses a 22 nm Intel SoC that includes a dual core, dual threaded Intel Atom CPU at 500MHz and a 32-bit Intel® Quark microctroller which runs at 100 MHz.  It's a lot of power for a board that's about the size of an LED Matrix.

        The board supports 40 GPIOs and includes 1 GB LPDDR3, 4 GB EMMC, and has dual-band WiFI and BTLE. However, to get to all those pins can be a hassle without a breakout board. That's why we have this kit! The Edison kit for Arduino comes with a breakout board that supports Arduino Sketch, Linux, Wi-Fi, and Bluetooth.  Best of all, it's mostly-compatible with the Arduino Uno layout (with 4 PWM instead of 6 PWM) so you can connect your Arduino breakout boards onto the Intel board to interact with the Edison.

        This Intel Arduino breakout also has an SD card connector, micro USB or standard sized USB-A connector, 6 analog inputs, and 20 ditial input/output pins, 1x UART, 1x I2C, and 1x ICSP 6-pin header (SPI) Power with 7V-15V DC input and you're ready to play with the Edison!

      Adafruit Industries
      Adafruit 2180 (EDI1ARDUIN.AL.K)

      Špecifické referencie

      upc
      735858286664
      ean13
      5032037066563
