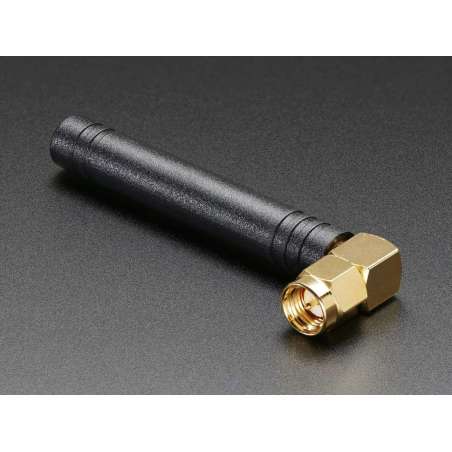

Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug (AF-1858)

Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug (AF-1858)

Reference: AF-1858

€6.34
Tax included
6.34 € tax excluded

Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug (AF-1858)

Quantity
Product available for orders



Secure shopping



Quick delivery



Help with buying

Right-angle Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug (AF-1858)

Description

This 2.2"/57mm long antenna has 2dBi of gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

Antenna comes with a Right-angle SMA connector. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.

Specifications:

  • Datasheet
  • Frequency: 850/900/1800/1900/2100 MHz
  • Gain: 2 dBi
  • V.S.W.R.: <=2:1
  • Polarization: Vertical
  • Connector: SMA Male Right Angle (Option)
  • Impedance: 50Ω
  • Operation Temperature: -20ºC ~ 60ºC
  • Storage Temperature: -30ºC ~ 75ºC



Dimensions:

AF-1858
