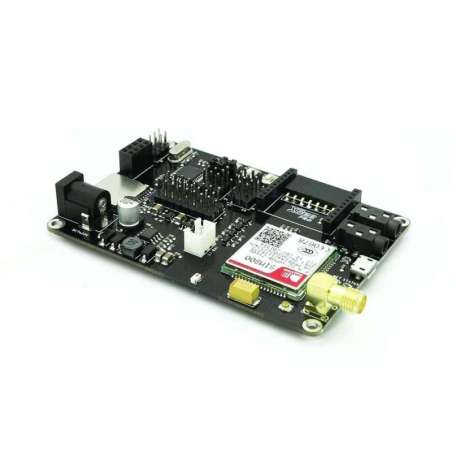

GBOARD 800 (Itead IM141125007) Arduino board SIM800 GSM/GPRS/BT XBee socket, nRF24L01+

Gboard 800 is a unique Arduino board which features a SIM800 GSM/GPRS/BT module, an XBee socket, nRF24L01+ module interface and an ATMega328P controller. This board can be added wireless XBee / nRF24L01+ control as well as GSM/GPRS connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

Gboard 800 can be used as a GSM/GPRS data transfer or wireless communication project development platform. Gboard supports wide range power supply and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, which offers an easy way for a quick prototyping. The board requires FTDI basic board to upload sketch, you can use our Foca board to do it.

Note:

  1. Gboard 800 has a micro USB connector only for debugging or firmware uploading.
  2. When you upload sketch to Gboard, please choose the board Arduino Duemilanove w/ ATmega328.
  3. The bootloarder file is ATmegaBOOT_168_atmega328.hex, you can find it in the directory arduinohardwarearduinobootloadersatmega
  4. The serial interface (bootloader connection) is 3.3v, not the typical 5v as on many Arduino boards - anyone using an alternative to the Foca board must take note not to risk damage.



Specification

PCB size 88.1mm X 60.7mm X 1.6mm
Power supply 7-23V DC
Microprocessor Atmega328
Indicators PWR, Status, NET
RoHS Yes



Electrical Characteristics

SpecificationMin.Typical ValueMax.Unit
Power Voltage 7 - 23 VDC
Input Voltage VH (Target Voltage = 3.3V) 3 3.3 3.6 V
Input Voltage VL: -0.3 0 0.5 V
Current Consumption - 100 500 mA



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials. For technical support, please open a ticket on Itead Support System.
