7inch Display 1024x600 Cap.Touch Screen 720P+Camera for Raspberry Pi/Mac/Windows (ER-RPD375105T)
ER-RPD375105T
€99.84
83.20 € tax excl.
7inch Display 1024x600 Cap.Touch Screen 720P+Camera for Raspberry Pi/Mac/Windows (ER-RPD375105T)
7inch Display 1024x600 Cap.Touch Screen 720P+Camera for Raspberry Pi/Mac/Windows (ER-RPD375105T)
Description

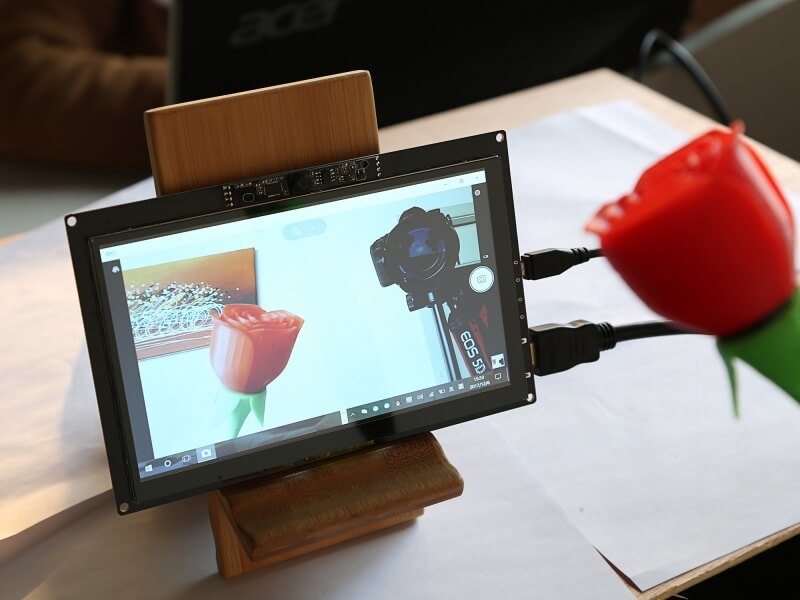

Look, this is a wonderful 7 inch HDMI monitor with capacitive touchscreen and 720p camera module and it’s driver free. It’s compatible for Raspberry Pi, beagle bone black, windows 10 and Mac book pro. It works well on these platforms, easy to plug and play, all you need to do is to adjust the resolution on Raspberry Pi. What exciting is that it has been extended with two USB HOST ports, that allows you connect more devices to your screen, such as the USB dongle or the USB mouse or keyboard.
If you want to use it with your Raspberry Pi, you could edit config.txt to set the HDMI to the native 1024 x 600 in case it doesn’t detect the resolution properly. The easiest way to edit config.txt is to insert the Pi TF card using any text editor and save the edit config.txt.
Features
- It supports multi-point touch.
- Low power consumption and compatible with UVC standard.
- USB capacitive touch control.
- Free driver, plug and play.
- Supports Raspbian, Ubuntu Mate, NOOBS with Raspberry Pi.
- Supports Debian, Angstrom with BeagleBone.
- Supports Windows / Ubuntu / Mac with PC.
- Supports Intel-Processor Base MiniPC.
- ULP (Ultra Low Power) consumption backlight.
- Extend Two USB HOST Ports.
Specifications
- Power: 5V power by USB Micro
- Current: max 500mA
- Display type: 7 inch TFT LCD
- Resolution: 1024 x 600
- Touch screen: USB capacitive
- Touch points: 10 points maximum
- Interface: HDMI, USB 2.0 full speed

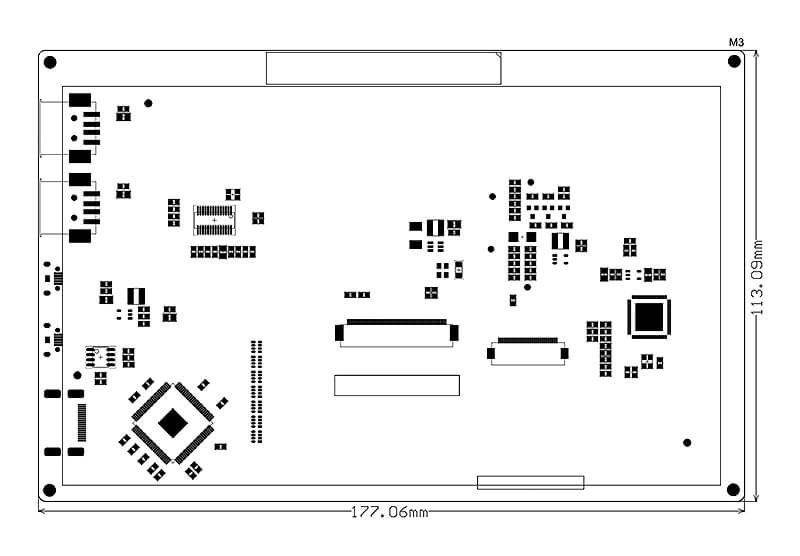

- Dimension: 177.06mm x 113.09mm x 15.2mm
Package list
- 7 Inch Capacitive HDMI Display 1x
- 30cm High Quality HDMI cable 1x
- Micro USB Cable 1x
Wiki & External links
ER-RPD375105T
