Octopus 9DOF MODULE (Elec EF04020) ITG3205 HMC5883L ADXL345

Octopus 9DOF MODULE (EF-04020) ITG3205 HMC5883L ADXL345

Reference: EF-04020 EF04020

€29.70
Tax included
29.70 € tax excluded

Octopus 9DOF MODULE (EF-04020) ITG3205 HMC5883L ADXL345

Quantity
Out-of-Stock



Secure shopping



Quick delivery



Help with buying

Octopus 9DOF MODULE (EF-04020) ITG3205 HMC5883L ADXL345

Octopus Electronic Bricks, you can use them build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos…even buttons, just plug and play.

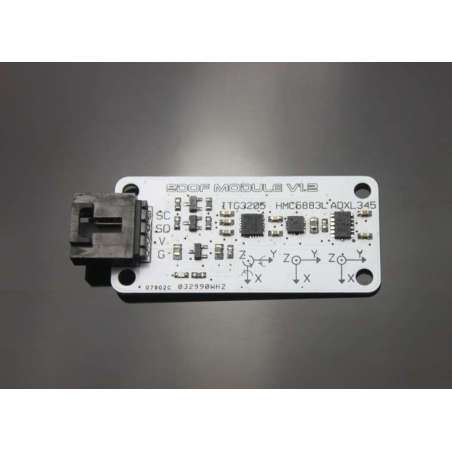

9 DOF sensor module is a triple version for ITG3205 triaxial gyroscope + HMC5883L triaxial magnetic field + ADXL345 triaxial acceleration. These three sensors can be used for measuring angles,the magnetic field direction,tilt, acceleration respectively,and now we can combine them on one board, so that we can achieve three sensor functional tests on one board. And our module requires only a simple 4-wire I2C interface connected with Arduino UNO, which can achieve functional tests, very simply and conveniently.

Features:

  • Power supply needs: 5V
  • Fast response and High sensitivity
  • Simple drive circuit
  • Stable and long life

Connecting method:

  • GND-GND VCC-5V SDA-A4 SCL-A5

Parts List:

  • 1 X 3-Axis GYRO Sensor
  • 1 x Analog Sensor Cable



Documents:

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.

EF-04020 EF04020
