32mm Square 8x8 LED Matrix - Super Bright RGB CIRCLE-DOT (ER-MAT06008B)
ER-MAT06008B
€10.68
8.90 € tax excl.
32mm Square 8x8 LED Matrix - Super Bright RGB CIRCLE-DOT (ER-MAT06008B)
32mm Square 8x8 LED Matrix - Super Bright RGB CIRCLE-DOT (ER-MAT06008B)
This is an awesome 32mm RGB LED Matrix with superbright and beautiful performance. There are totally 64 RGB LED in the Matrix, that can be controlled individually. There is also the 60mm RGB matrix for your choice.

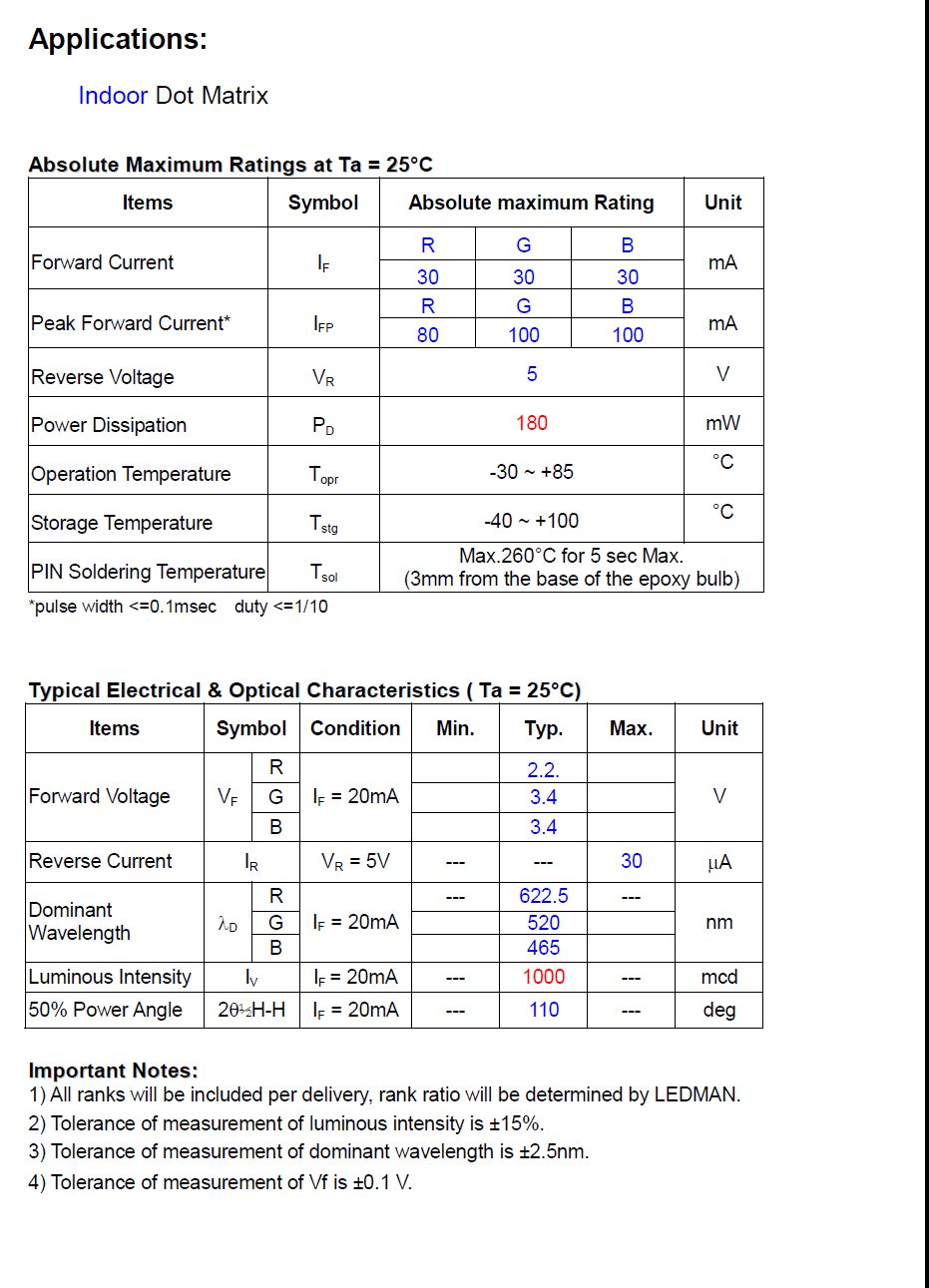

Specification
- Pixel Array: 8x 8
- Dimension: 32mmx 32mm
- Reverse Voltage(Max): 5V
- Forward Current(Max) : 30mA
- Peak Forward Current(Max): 100mA for G and B, 80 mA for R
- Power Dissipation(any seg): 180mW
- Operating Temperature(Max): -30~+85 Degree
- Lead Solder Temperature(Max): for 5 seconds at 260 Degree
Electric& Mechanical
ER-MAT06008B
