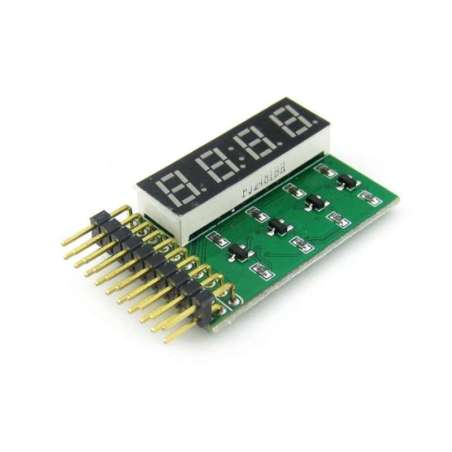

8 SEG LED Board (Waveshare 4653) 4-digit 8-segment LED display board, including decimal point

Overview

The 8 SEG LED Board enables you to easily add four 8-segment digits to your device. It is ideal for applications such as displaying the digits and/or time.

Features

four 8-segment digits, control interface (8 data pins & 5 control pins)

Photos

---

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/8_SEG_LED_Board
