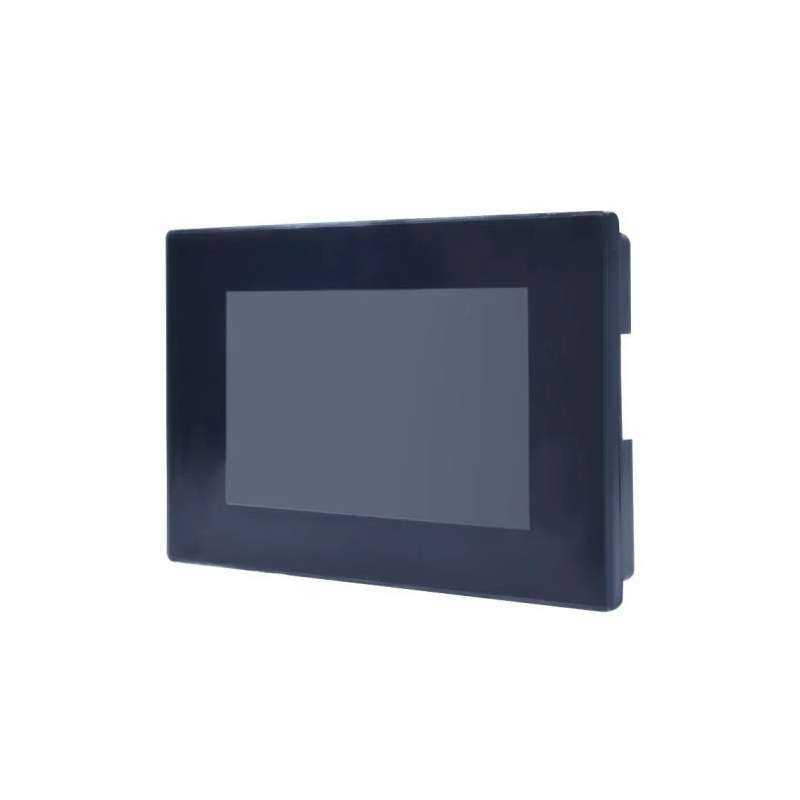

    Nextion NX8048P050-011C-Y 5.0" Intelligent Series HMI Capacitive Touch Display with Enclosure (6920075776553)
    Nextion NX8048P050-011C-Y 5.0" Intelligent Series HMI Capacitive Touch Display with Enclosure (6920075776553)

    Nextion NX8048P050-011C-Y 5.0" Intelligent Series HMI Capacitive Touch Display with Enclosure (6920075776553)

    NX8048P050-011C-Y
    €116.73

    94.90 € tax excl.

    Nextion NX8048P050-011C-Y 5.0" Intelligent Series HMI Capacitive Touch Display with Enclosure (6920075776553)

    Quantity :
    OUT OF STOCK

    Nextion NX8048P050-011C-Y 5.0" Intelligent Series HMI Capacitive Touch Display with Enclosure (6920075776553)

    1. Prehľad
    2. Modely Nextion
    3. Špecifikácie
    4. Elektronické vlastnosti
    5. Pracovné prostredie a spoľahlivosť Parametre
    6. Výkon rozhraní
    7. Vlastnosti pamäte
    8. Rozmery produktu

    Nextion je riešenie rozhrania človek-stroj (HMI), ktoré kombinuje integrovaný procesor a pamäťový dotykový displej so softvérom Nextion Editor pre vývoj projektov HMI GUI. Pomocou softvéru NEXTION Editor môžete rýchlo vyvinúť HMI GUI pomocou komponentov drag-and-drop (grafika, text, tlačidlá, posúvače atď.) a inštrukcií založených na texte ASCII pre kódovanie interakcie komponentov na strane displeja. Displej Nextion HMI sa pripája k periférnemu MCU prostredníctvom sériového rozhrania TTL (5 V, TX, RX, GND), aby poskytoval oznámenia o udalostiach, na ktoré môže periférny MCU reagovať. Periférny MCU môže jednoducho aktualizovať priebeh a stav späť na displej Nextion pomocou jednoduchých textových inštrukcií ASCII. Produkty radu Intelligent Series majú výkonnejší hardvér z hľadiska MCU, Flash pamäte a SRAM v porovnaní s radmi Basic Series a Enhanced Series. Čo je nové? Funkcie prehrávania zvuku, videa a animácií obohacujú interakciu používateľa s projektom HMI. Rad Intelligent Series podporuje pokročilé softvérové vlastnosti a funkcie, ako sú transparentné komponenty, efekt načítania stránky, presúvanie a ťahanie komponentov atď.

    Nextion Models

    Nextion Type Intelligent Series
    Nextion Models NX8048P050-011C-Y (5.0 inch capacitive touchscreen with enclosure)

    Specifications

    Data Description
    Color 65K 65536 colors 16 bit 565, 5R-6G-5B
    Layout size 160.04mm(L)×107.07mm(W)×21.2mm(H) NX8048P050-011C-Y
    Visual Area (V.A.) 120.7mm(L)×75.8mm(W)
    Active Area (A.A.) 108.00mm(L)×64.80mm(W)
    Resolution 800×480 pixel Also can be set as 800×480
    Touch type Capacitive
    Touches > 1 million
    Backlight LED
    Backlight lifetime (Average) >30,000 Hours
    Brightness  300nit 0% to 100%, the interval of adjustment is 1%
    Weight 224g

    Electronic Characteristics

    Test Conditions Min Typical Max Unit
    Operating Voltage 4.65 5 6.5 V
    Operating Current VCC=+5V, Brightness is 100% 220 mA
    SLEEP Mode 170 mA
    Power supply recommend:5V, 1.0A, DC

    Working Environment & Reliability Parameter

    Test Conditions Min Typical Max Unit
    Working Temperature 5V, Humidity 60% -20 25 70 °C
    Storage Temperature -30 25 85 °C
    Working Humidity 25°C 10% 60% 90% RH

    Interfaces Performance

    Test Conditions Min Typical Max Unit
    Serial Port Baudrate Standard 2400 9600 921600 bps
    Output High Voltage (TXD) IOH=1mA 3.0 5.0 Vin V
    Output Low Voltage(TXD) IOL=-1mA 0.1 0.2 V
    Input High Voltage(RXD) 3.0 5.0 Vin V
    Input Low Voltage(RXD) -0.7 0.0 1.3 V
    Serial Port Mode TTL (RX:3.3V/TX:5.0V)
    Serial Port 4Pin_2.54mm
    USB interface NO
    SD card socket Yes (FAT32 format), support maximum 32G Micro SD Card
    * presence of *.tft file on microSD: socket is exclusive to upgrade Nextion firmware/HMI design
    * Intelligent Series only: see Instruction Set / Editor Guide for microSD card runtime usage
    Extended IO 8 Digital extended GPIO
    IO0-IO7 support input, output and component binding event (3.3V)
    * IO pin / ports are not exclusive, limit current draw to 1mA recommended
    IO6-IO7 support PWM
    RTC built-in RTC support (Battery type: CR1220)

    Vin: the input voltage of power supply

    Memory Features

    Memory Type Test Conditions Min Typical Max Unit
    FLASH Memory Store fonts and images 120 MB
    User Storage EEPROM 1024 BYTE
    RAM Memory Store variables 512 KB
    Instruction Buffer Instruction Buffer 4096 BYTE

    Audio Features

    Speaker Parameter Min Typical Max Unit
    Power 16Ω 0.5W 0.5 W
    Size Φ40*5.2H mm

    Product Dimensions

    NX8048P050-011C-Y_Dimension

    Product Certificates

    CE-EMCRoHSDECLARATION OF CONFORMITY

    NEXTION, SONOFF, ITEAD STUDIO
    NX8048P050-011C-Y
