      LT24 Card  HMI TOUCHSCREEN 2.4" COLOR   (TERASIC) TA-P0185

      Quantity :
      OUT OF STOCK

      LT24 Card  HMI TOUCHSCREEN 2.4" COLOR   (TERASIC) TA-P0185

      The Terasic LT24 is a 2.4” LCD touch module with 240(H) x 320(V) display resolution. It can be bundled with various Terasic FPGA development boards through the 2x20 GPIO interface. The LT24 is powered directly from the FPGA mainboard. It doesn’t require any power adaptor. The kit contains complete reference design and source code for the Painter application.

      Features

      • 240(H) x 320 (V) pixel resolution LCD with 65K RGB color
      • Single resistive touch
      • 2x20 GPIO interface

      Block Diagram


      Connectivity

      • The LT24 Daughter Card connects to the DE2-115




      • The LT24 Daughter Card connects to the DE0-Nano



      • The LT24 Daughter Card connects to the DE1-SoC



      • The LT24 Daughter Card connects to the DE0


      • The LT24 Daughter Card connects to the DE1


      • The LT24 Daughter Card connects to the DE2


      • The LT24 Daughter Card connects to the DE2-70

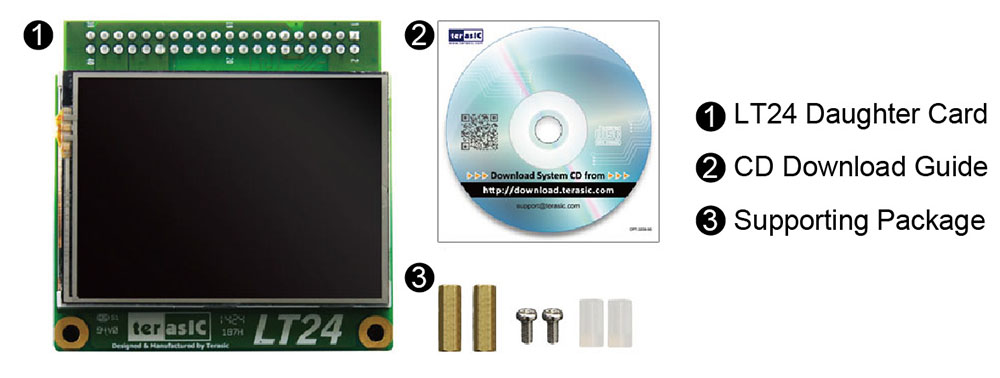

      Kit Contents

      • LT24 Daughter Card
      • CD Download Guide
      • Supporting Package
      Terasic
      TA-P0185

      Specific References
