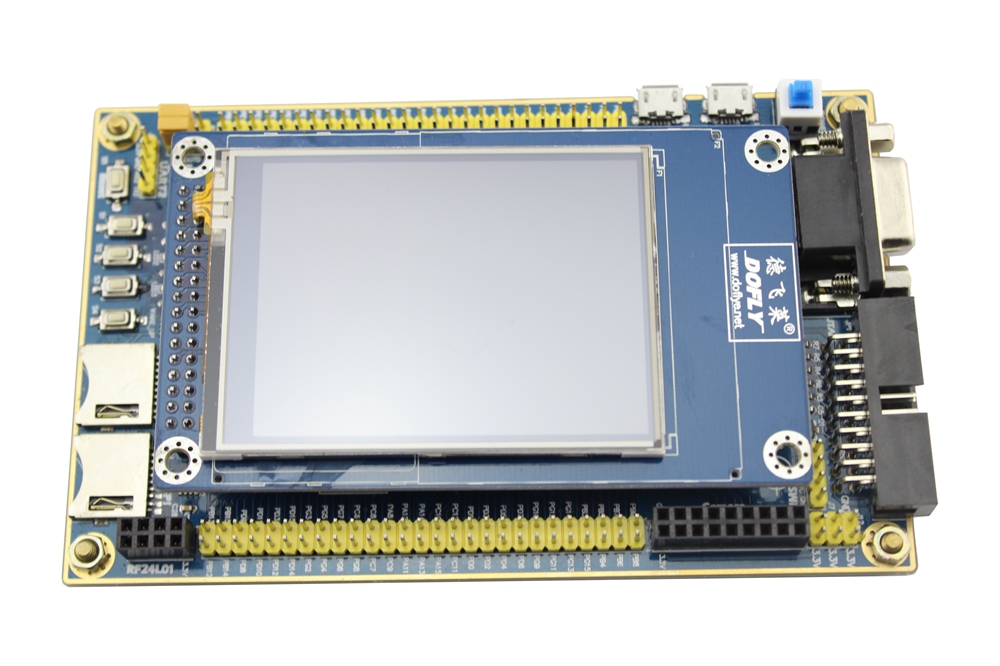

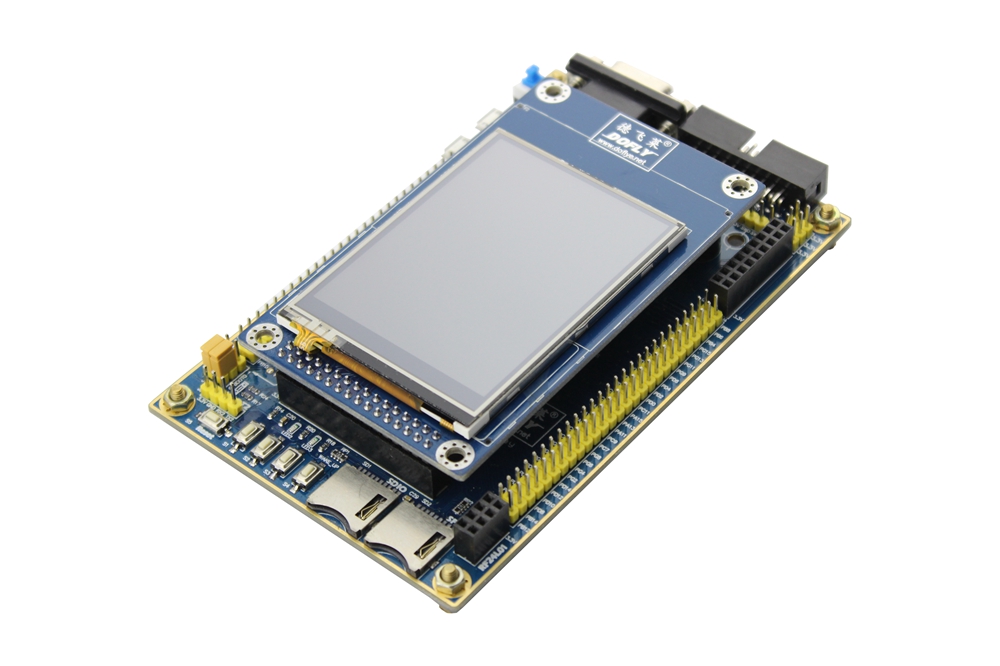

      STM32F103ZET6 Development Board (ER-DPO10336M)

      The STM32F103ZET6 performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN. The STM32F103ZET6 operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. These features make the STM32F103ZET6 high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC. This development board of STM32F103ZET6 provide more powerful functions than others. You can save more money and time.if you want some TFT display:

      • 3.2 Inch 320 x 240 TFT TouchScreen for STM32 Development Board
      • 2.8 Inch 320 x 240 TFT TouchScreen for STM32 Development Board

      Features

      • External crystal 8M, 32768Hz watch crystal
      • The standard 20P sockets, JTAG interface for Jlink, Ulink, ST-Link debugger and other download
      • The standard 4P pin, SWD interfaces, 2-wire communication debugging download
      • All I / O port pin leads, facilitate the expansion of the experiment
      • USB-TTL serial converter circuit, USB interface, serial communication
      • Automatic download adaptation circuit, using the serial download without frequent switching
      • MAX232 switching circuit for the external serial line
      • Integrated infrared receiver, the user function of infrared remote control receiver
      • DS18B20 plug directly into the chip enable digital temperature measurement function
      • With clock backup battery to keep the clock and important information regarding non-volatile
      • EEPROM chip 24c02, storing common user information, use IIC communication
      • FLASH W25Q64,8M memory chip can store a variety of information about this image, system data, the equivalent of a small SD card
      • SPI Mode SD card, using TF card, use the classic SPI communication
      • SDIO mode SD card, using TF card, dedicated SDIO interface, high speed, and stability.
      • RF24L01 socket for testing wireless communication
      • 3-way ordinary key input function, man-machine interfaces
      • 1 wake-up button, used to wake from low power or standby mode
      • 2 user LED lights, do basic status, operating instructions
      • 1 USB device interface for debugging USB device functions, such as card readers, usb serial transfer function

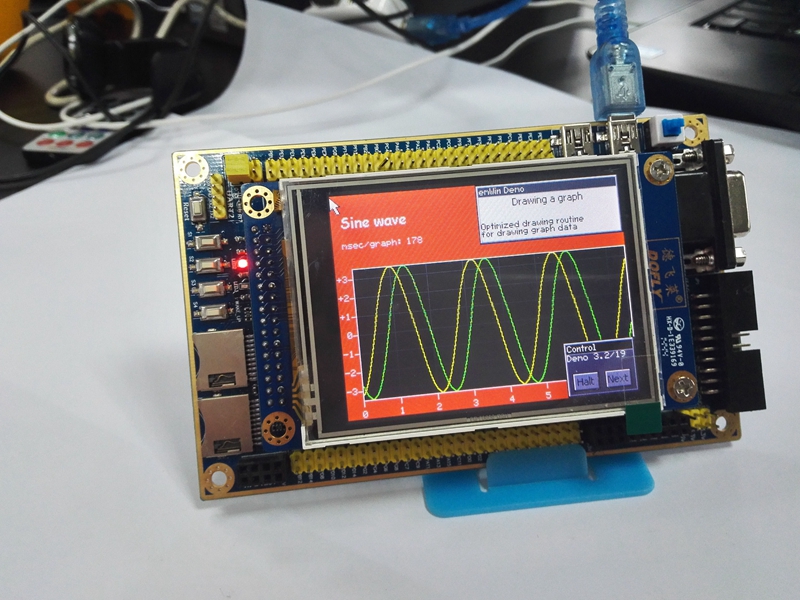

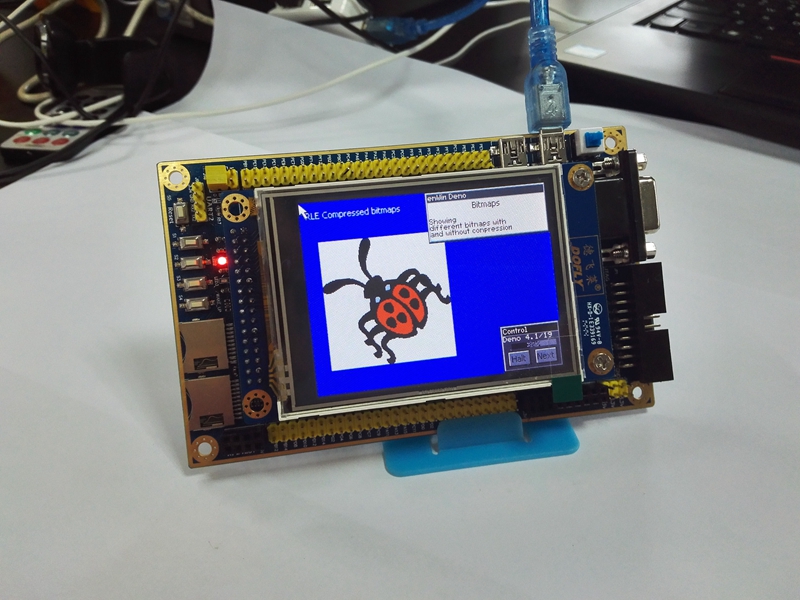

      • TFT color LCD interfaces, including touch-screen interface, can be used directly into supporting screen
      • Camera aside interface camera module supporting video presentation features
      • 3.3V and 5V power supply pin external expansion

      Specifications

      • PCB Size:131 x 81mm
      • Storage type: flash
      • Prog: 512k
      • RAM: 64K
      • Work frequency:72Mhz
      • Pins:144

      Package list

      • STM32F103ZET6 Development Board(DOES NOT CONTAIN BATTERY)  1x
      • Mini USB line  1x
