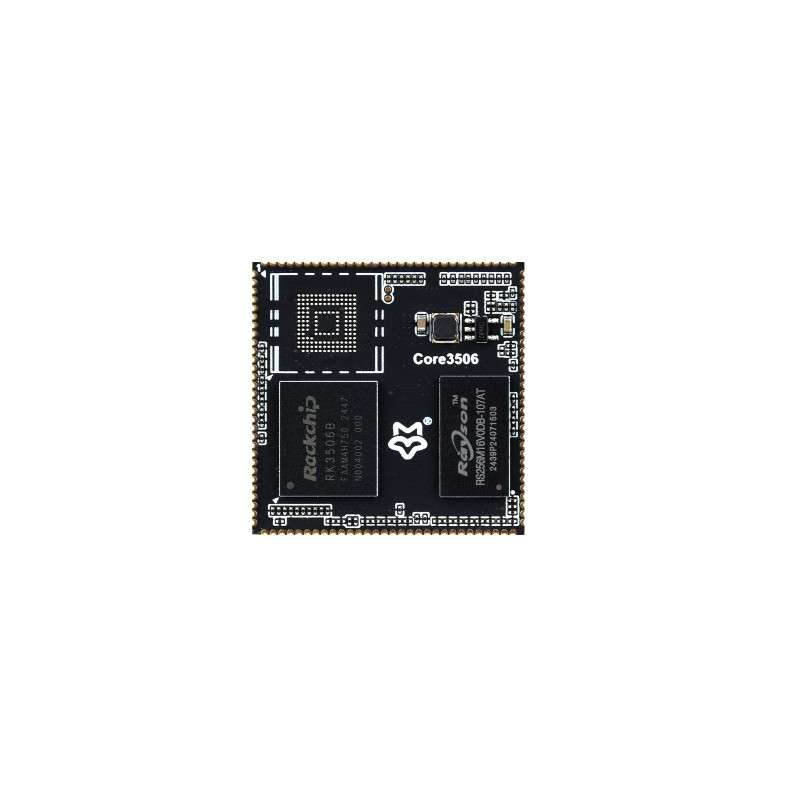

Luckfox Core3506 Core Board Rockchip RK3506B 512MB DDRL3, Triple-core ARM Cortex-A7, ARM Cortex-M0 (WS-31147)
WS-31147
€12.29
9.99 € tax excl.
Luckfox Core3506 Core Board Rockchip RK3506B 512MB DDRL3, Triple-core ARM Cortex-A7, ARM Cortex-M0 (WS-31147)
Luckfox Core3506 Core Board Rockchip RK3506B 512MB DDRL3, Triple-core ARM Cortex-A7, ARM Cortex-M0 (WS-31147)
- without eMMC
- Core35060800
Luckfox Core3506 Core Board Based On Rockchip RK3506B Chip, Onboard 512MB DDRL3, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors
Core3506
Based on the Rockchip RK3506B chip
The Core3506 is a core board based on the Rockchip RK3506B chip with high performance and high expandability, designed to simplify hardware development. Adapting various interfaces via castellated holes, such as MIPI DSI, RMII Ethernet interface, and USB, etc. which is suitable for various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. It enables quick design verification or direct integration into products, thereby shortening the R&D cycle. Provides option of onboard 8GB eMMC storage to meet different storage requirements.
Version options
Specifications
| Model | Core35060800 | Core35060808 |
| Processor | Rockchip RK3506B | |
| Memory | Onboard 512MB DDR3L | |
| Storage | - | Onboard 8GB eMMC |
Highly integrated and powerful performance
- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
- Supports DDR3L memory interface expansion, meeting various expansion needs
- The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
- Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Application Scenarios
Product Show
Development Resources
Complete software and hardware resources and an active community help secondary development
What's On Board
- eMMC
8GB eMMC (for Core35060808 version only) - RK3506B
Multi-core heterogeneous SoC with tri-core ARM Cortex-A7 + ARM Cortex-M0
- 512MB DDR3L
Parameter comparison
| Model | Core35060800 | Core35060808 |
| Processor | RK3506B | |
| CPU | Tri-Core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0 | |
| Memory | Onboard 512MB DDR3L | |
| USB | USB OTG2.0 × 2 | |
| Display interface | MIPI DSI 2-lane, up to 1280 × 1280@60fps | |
| RM_IO | 32 × Rockchip Matrix IO pins | |
| Ethernet port | 10M / 100M RMII interface × 2 | |
| Microphone | Analog differential MIC interface × 1 | |
| Storage | - | 8GB eMMC |
| Storage expansion support | SPI FLASH / eMMC / SDMMC | SPI FLASH |
| Other resources | ADC × 4, FSPI × 1, etc. | |
| Dimensions | 32 × 32 (mm) | |
| Castellated holes | 120PIN | |
* Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.
outline dimensions
Luckfox Lyra Product Selection
| PRODUCT | Main chip | Memory | DSI | USB | Default Storage | FEATURES |
|---|---|---|---|---|---|---|
 Luckfox Lyra |
RK3506G2 | 128MB DDR3L | 2-lane (1.5Gbps/lane) | 2 × USB OTG | TF card (Not included) | Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, reserved RMII interface, etc. |
Luckfox Lyra B |
SPI NAND FLASH (256MB) | |||||
 Luckfox Lyra Plus |
Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, etc. | |||||
 Luckfox Lyra Ultra |
RK3506B | 512MB DDR3L | eMMC (8GB) | Multi-core heterogeneous CPU, onboard DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc. | ||
 Luckfox Lyra Ultra W |
USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB |
Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc. | ||||
 Core35060800 |
USB OTG × 2 | - | Multi-core heterogeneous CPU, onboard DDR3L, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC and 10M/100M RMII, etc | |||
 Core35060808 |
eMMC (8GB) |
