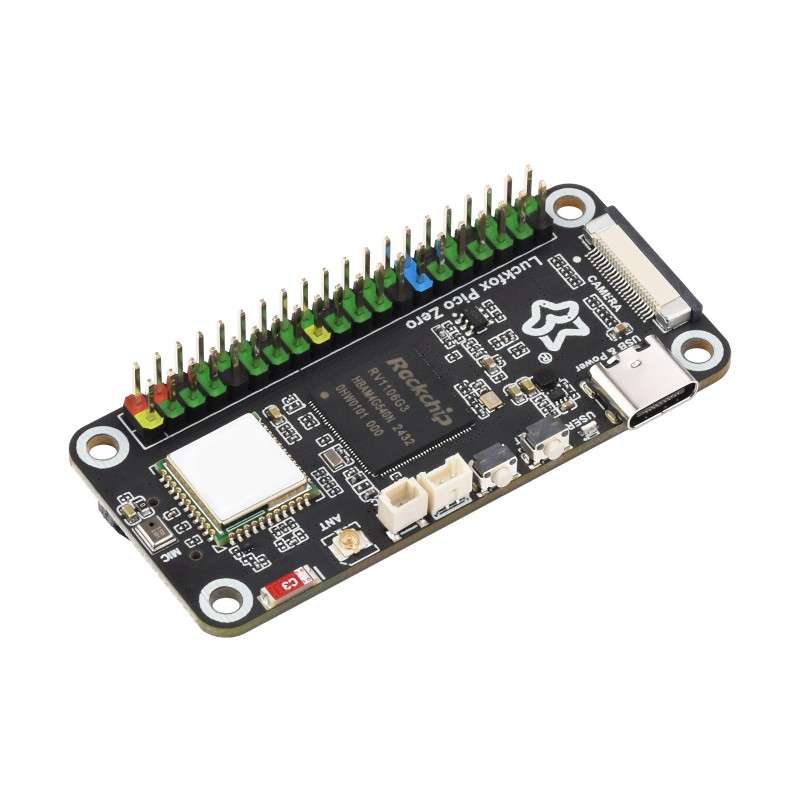

Luckfox Pico Zero Linux Micro Dev.Board, Luckfox RV1106G3, 1TOPS Computing Power, 8GB eMMC, Wireless (WS-32111)
WS-32111
€23.25
18.90 € tax excl.
Luckfox Pico Zero Linux Micro Dev.Board, Luckfox RV1106G3, 1TOPS Computing Power, 8GB eMMC, Wireless (WS-32111)
Luckfox Pico Zero Linux Micro Dev.Board, Luckfox RV1106G3, 1TOPS Computing Power, 8GB eMMC, Wireless (WS-32111)
Luckfox Pico Zero Linux Micro Development Board, Based On Luckfox RV1106G3 Chip, 1 TOPS Computing Power, 8GB eMMC, With Wireless Module
Luckfox Pico Zero
The Luckfox Pico Zero is a cost-effective Linux micro development board, based On Luckfox RV1106G3 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C and USB etc., with an onboard wireless module, which is ideal for a wide range of embedded applications.
Highly integrated and powerful performance
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
- Built-in self-developed third-generation ISP3.2, supports 8-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from the camera are high-definition with a smaller size
- Built-in 16-bit 256MB DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module
Providing Stable Connection And Efficient Transmission
Antenna Switching
Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios
MIPI CSI 4-lane Interface
Composed of dual MIPI-CSI (2-lane) interfaces
* for reference only, please refer to the Package Content for the detailed part list.
The resolution of the camera shown in the picture is 1280 × 1080. This product supports up to 3840 × 2160 (8M) @15FPS input.
Multiple Audio Interfaces
Onboard microphone + speaker header
meets a variety of audio application scenarios
meets a variety of application scenarios
Pin definition
What's On Board
- RV1106G3
Vision processor SoC, integrates ARM Cortex-A7 core - USB-C Port
for power supply and program burning - USER-LED
for indicating system operating status in the default image - RESET Button
- BOOT Button
Press it when powering on or resetting to enter download mode - Speaker Header
MX1.25 2P connector, supports 8Ω 1W speaker. - RTC Battery Header
- External Antenna Connector
- Onboard Antenna
- Wi-Fi / Bluetooth Module
2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module - Onboard Microphone
- 40PIN GPIO Header
Compatible with some Raspberry Pi HATs - Camera Interface
MIPI CSI (4-lane) - TF Card Slot
Supports storage expansion only - 8GB eMMC
outline dimensions
Certificate of Authorization
Balenie Obsahuje / Package Content
Luckfox Pico Zero x1
WS-32111
