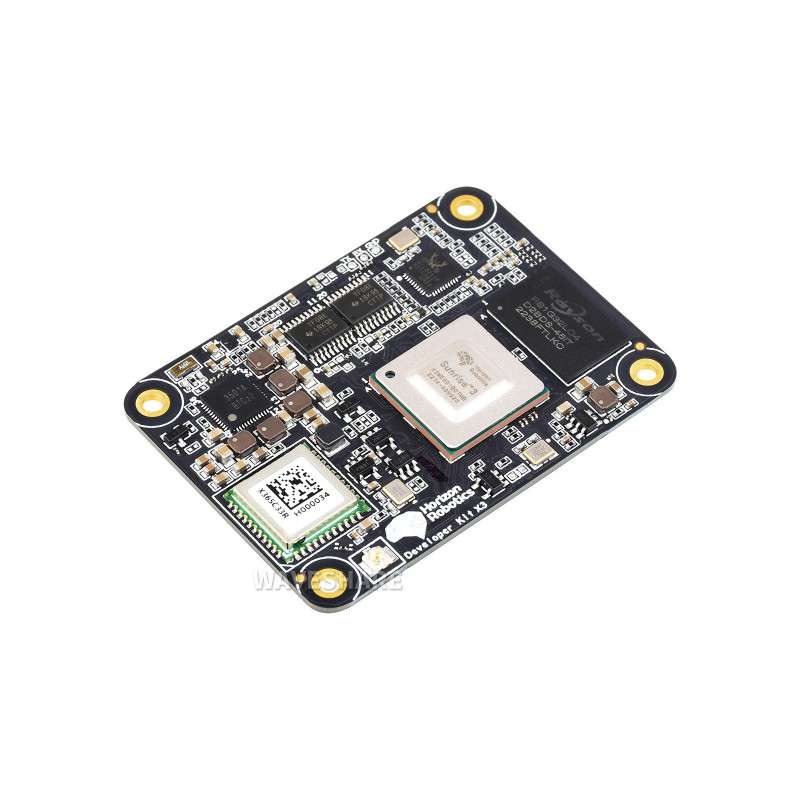

D-Robotics RDK X3 High-Performance AI Module, 5 TOPS Compatible with Raspberry Pi CM4 (WS-24842) 4/64GB

D-Robotics RDK X3 High-Performance AI Module, 5 TOPS Compatible with Raspberry Pi CM4 (WS-24842) 4/64GB

Name: D-Robotics RDK X3 High-Performance AI Module, 5 TOPS Compatible with Raspberry Pi CM4 (WS-24842) 4/64GB
Brand: D-Robotics
SKU: WS-24842
Price: 91.02 EUR
Availability: BackOrder

Reference WS-24842

€91.02

74.00 € tax excl.

Description
Product Details

D-Robotics RDK X3 High-Performance AI Module, 5 TOPS Compatible with Raspberry Pi CM4 (WS-24842) 4/64GB

Wireless withou
RAM 4GB
eMMC Flash 64GB

D-Robotics RDK X3 High-Performance AI Module, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4, RAM / eMMC

D-Robotics RDK X3 AI Module

5 TOPS AI Computing Power

Introduction

The RDK X3 AI Module is a fully-featured, high-performance intelligent module equipped with the D-Robotics X3 high-performance AI chip, delivering both general-purpose and AI computing power at the edge. Compatible with Raspberry Pi CM4, enabling quick integration and rapid product deployment for users. The module features a quad-core Cortex A53 ARM processor, supports 5TOPS computing power. It also supports 4K@60fps video encoding and decoding, providing a high-quality video experience.

The main interfaces include HDMI, Gigabit Ethernet, USB 3.0, MIPI CSI, and MIPI DSI for diverse peripheral connectivity. Provides options for Wireless / RAM / eMMC. Users can select different specifications based on their specific requirements, enabling more flexible and efficient solutions.

Specifications

CPU	Quad-core Cortex A53 64-bit SoC @1.5GHz
BPU	5 TOPS
RAM	Options for 2GB / 4GB LPDDR4
Storage	Options for 16GB / 32GB / 64GB eMMC Flash Memory
Connectivity	Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac WiFi and Bluetooth 4.2, with external antenna connector
	Supports Gigabit Ethernet port
	1 x USB 3.0 interface
	28 x GPIO pins
	SD card interface for SD card
Display	1 x HDMI port (supports 1080p@60)
Display	1 x MIPI DSI interface (supports 1080p@60)
Image	2 x 2-lane MIPI CSI camera interface
Image	1 x 4-lane MIPI CSI camera interface
Multimedia	4Kp60 H.264 / H.265 (Codec); MJPEG (Codec)
Power Input	5V/3A DC
Operating Temperature	-20°C ~ 60°C

High-Performance AI Core

Quad-core Cortex A53 64-bit processor, BPU 5 TOPS AI computing power

RDK-X3-MD Board, High-Performance Core, AI-Enhanced

High-Speed Wi-Fi & Bluetooth

Onboard dual-band Wi-Fi and Bluetooth module AP6253, enabling seamless connectivity anytime and anywhere

Supports External Antenna

* for reference only, please refer to the package content for detailed part list.

What's On Board

Model Numbering Rules

Model	Wireless	RAM	eMMC Flash
RDK X3 MD	1 = Yes 0 = No	02 = 2GB 04 = 4GB	016 = 16GB 032 = 32GB 064 = 64GB
Example: RDK X3 MD 102016, RDK X3 Module with onboard wireless, 2GB RAM, and 16GB eMMC Flash
RDK X3 MD	1	02	016

Part Number	Wireless	RAM	eMMC
RDK X3 MD 002016	NO	2GB	16GB
RDK X3 MD 002032	NO	2GB	32GB
RDK X3 MD 004032	NO	4GB	32GB
RDK X3 MD 004064	NO	4GB	64GB
RDK X3 MD 102016	YES	2GB	16GB
RDK X3 MD 102032	YES	2GB	32GB
RDK X3 MD 104032	YES	4GB	32GB
RDK X3 MD 104064	YES	4GB	64GB

Compatible with CM4-IO-BASE-B

The CM4-IO-BASE-B is a Raspberry Pi CM4 baseboard launched by Waveshare, compatible with RDK X3 Module. It can serve as a development system for the RDK X3 Module, or be integrated as a carrier board into end products, helping users quickly verify and develop products by connecting Raspberry Pi HATs and modules.
