Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, 1920×1080@60fps HDMI Video Input And HID (WS-32220)
WS-32220
€34.32
27.90 € tax excl.
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, 1920×1080@60fps HDMI Video Input And HID (WS-32220)
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, 1920×1080@60fps HDMI Video Input And HID (WS-32220)
- Basic version
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control
Luckfox PicoKVM
Version options
Luckfox PicoKVM
Full version
(with metal case and 1.54inch touch display)

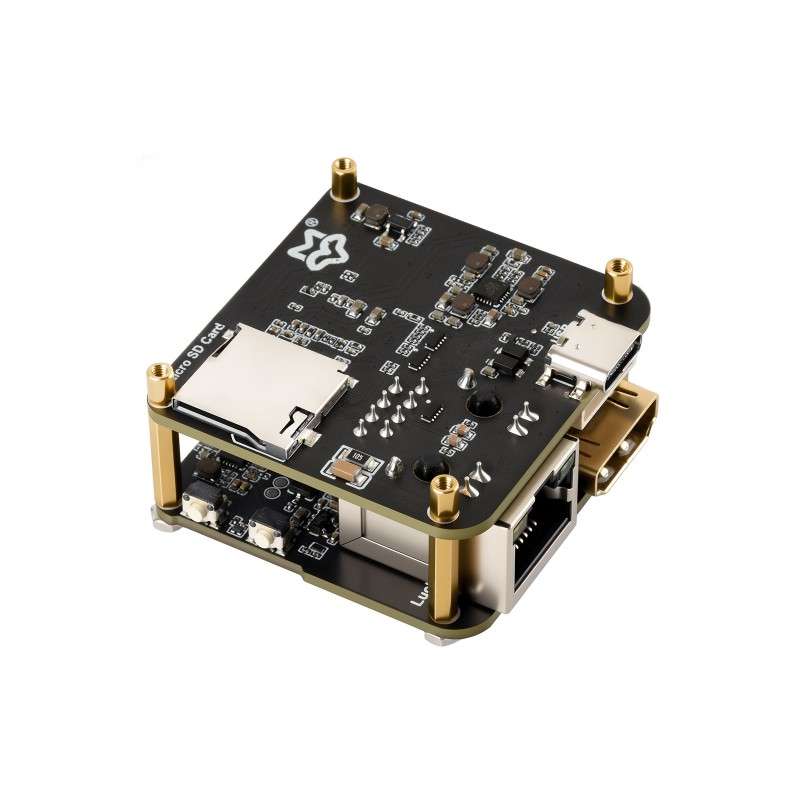

Luckfox PicoKVM Base
Basic version
Features
The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.
Key Features:
- Onboard HDMI input interface: recognized by PC as a display for video capture
- Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
- Onboard 100Mbps Ethernet port: for video and control signal transmission
- 1.54inch touch display: for displaying IP address, connection status, and system operating status
- TF card slot: supports storage expansion
- I/O expansion interface: for host power ON/OFF control
Specifications
| Product | Luckfox PicoKVM |
| Processor | RV1106G3 |
| Core | 1 × A7@1.2G |
| Memory | 256M DDR3 |
| Storage | 8G eMMC |
| System | PicoKVM |
| Resolution | 1080P@60fps |
| Video Encoding | H264 |
| Video Latency | 80ms ~ 200ms |
| Audio Transmission | √ |
| UEFI / BIOS Support | √ |
| USB Keyboard & Mouse Emulation | √ |
| USB Storage Emulation | √ |
| UEFI / BIOS Scope | √ |
| Wake-on-LAN (WOL) | √ |
| Web Terminal | √ |
| Custom Script | √ |
| Serial Terminal | 1-Ch |
| Storage Expansion | TF card |
| Power Control | GPIO control |
| Ethernet | 100Mbps |
| LCD Display | 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version) |
| Power Input | Type-C |
| Outline Dimension | Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm) |
| Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm) |
Comparison with Commercial Remote Control Software
* for reference only, the above host boards are NOT included.
Function Demonstrations
What's On Board
- HDMI IN interface
for connecting to the HDMI output interface of the controlled host - I/O expansion interface
- USB Type-C port
for power supply, simulating HID/UMS devices, and programming - 10/100Mbps RJ45 Ethernet port with indicator
- 1.54inch touch LCD
- BOOT button
press it when powering on or resetting to enter download mode - RESET button
- TF card slot
Pin definition
outline dimensions
Luckfox PicoKVM
Luckfox PicoKVM Base
Certificate of Authorization
Resources & Services
Balenie Obsahuje / Package Content
Luckfox PicoKVM Base x1
WS-32220
