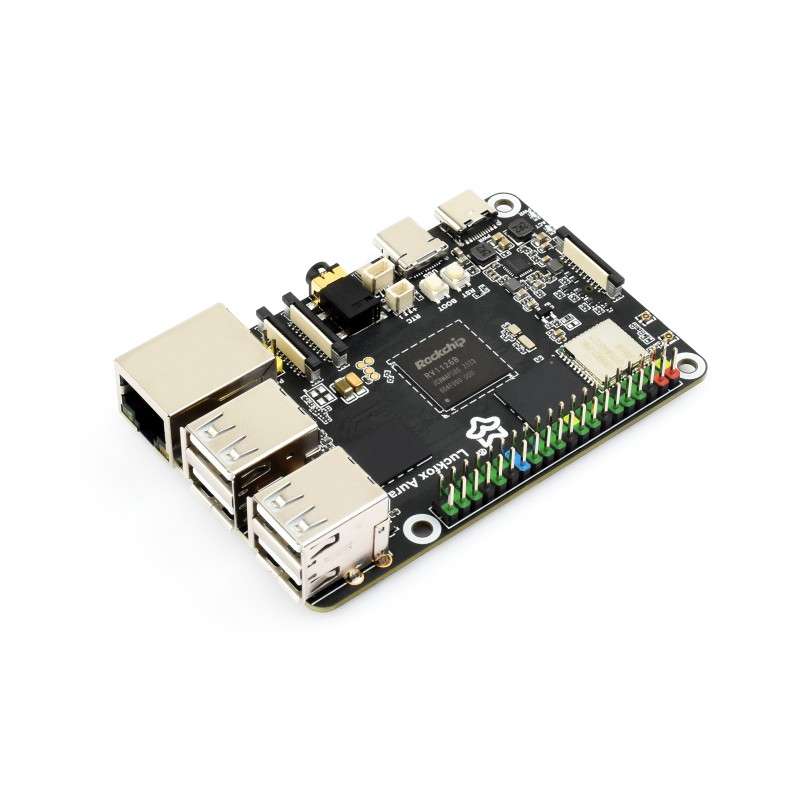

Luckfox Aura High-Performance Linux Dev.Board, Rockchip RV1126B, 3TOPS, 4K, 2GB RAM, 64GB eMMC (WS-33328)
WS-33328
€72.57
59.00 € tax excl.
Luckfox Aura High-Performance Linux Dev.Board, Rockchip RV1126B, 3TOPS, 4K, 2GB RAM, 64GB eMMC (WS-33328)
Luckfox Aura High-Performance Linux Dev.Board, Rockchip RV1126B, 3TOPS, 4K, 2GB RAM, 64GB eMMC (WS-33328)
- Part No.: Luckfox-Aura-02064
Luckfox Aura High-Performance Linux Development Board, Rockchip RV1126B Quad-Core 1.6GHz Processor, 3 TOPS Computing Power, 4K Encoding And Decoding, Options For RAM And eMMC
Luckfox Aura
High-Performance Linux Development Board Based on Rockchip RV1126B
Version Options
Specifications
| Processor | Quad-core Arm Cortex-A53@1.6GHz |
| RAM | Options for 2GB / 4GB LPDDR4X RAM |
| Flash Memory | Options for 0GB / 64GB eMMC Flash |
| NPU | 3 TOPS@INT8, supports INT4, INT8, INT16, FP16 mixed operation |
| ISP | Supports 12MP cameras, supports multiple algorithm accelerators, including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, and gamma correction, integrates 8MP AI-ISP for enhanced spatial noise reduction and image enhancement effect |
| Video | Decoding: 4K@30fps (H.265/HEVC, H.264/AVC) Encoding: 4K@30fps (H.265/HEVC, H.264/AVC) |
| Storage | TF card slot |
| Video Output | 4-lane MIPI DSI (1920x1080@60fps) interface × 1 |
| Video Input | 4-lane MIPI CSI camera interface × 2 |
| USB | USB3.0 OTG Type-C port × 1 USB2.0 HOST Type-A port × 4 |
| Audio | Onboard microphone 3.5mm headphone / microphone jack |
| GPIO | 40PIN header (compatible with some Raspberry Pi HATs) |
| System | Buildroot, Debian |
| Power Input | 5V DC |
| Others | 2PIN SH1.0 RTC Batt header |
| SARADC × 7 |
Low Power quad-Core AIoT Processor
Equipped with high-performance RV1126B processor, integrated with quad-core Cortex-A53 processor, providing strong performance and high energy efficiency
3 TOPS Computing Power
Equipped with 3 TOPS computing power, easy to convert a variety of neural network models based on TensorFlow, MXNet, PyTorch, and Caffe frameworks, supports running large language models and Visual Language Models
Object Recognition
Face Recognition
Vehicle Recognition
Pedestrian Detection
Large Language Model
Visual Language Model
Supports 4K encoding and decoding
Supports 4K@30fps H.264/H.265 hardware encoding and decoding capabilities,
easy to deal with HD video tasks
MIPI DSI 4-lane Interface
Powerful performance, easy to drive large screens
* Supports up to 1920 × 1080@60Hz resolution.
for reference only, the 13.3inch DSI LCD is not included.
MIPI CSI 4-lane dual camera interfaces
Suitable for AI vision applications such as visual robotics,
depth vision, and stereo vision
*for reference only, please refer to the package content for detailed part list.
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.4/BLE Bluetooth Module,
Providing Stable Connection And Efficient Transmission
Gigabit PoE Ethernet port
Supports 10M/100M/1000M Ethernet port to meet file transfer and video streaming needs, with reserved PoE module header for more flexible power supply
Audio interfaces
Onboard Microphone + 3.5mm Headphone / Microphone Jack, meets a variety of audio application scenarios
Application Examples
Pin definition
What's On Board
- RV1126B
built-in quad-core ARM Cortex-A53 - eMMC (options for 0GB / 64GB)
- Wi-Fi / BT module
2.4GHz / 5GHz Wi-Fi 6 + BT 5.4 / BLE module - Wi-Fi / BT module antenna connectors
- DSI display interface
- USER-LED
for indicating system operating status in the default image - POWER-LED
for indicating power supply status - USB-PWR
for 5V DC power supply - RESET button
- BOOT button
Press it when powering on or resetting to enter download mode - USB3.0 OTG Type-C port
for programming, emulating USB devices, or connecting USB peripherals
- RTC header
- Onboard microphone
- DEBUG header
- 3.5mm headphone / microphone jack
supports audio capture or output - CSI-0 camera interface
enabled by default - CSI-1 camera interface
- PoE module header
- Gigabit RJ45 Ethernet port with LED indicators (PoE-enabled)
supports power supply via PoE switch with network cable - USB2.0 HOST Type-A ports
expands 4-ch Type-A ports via USB-HUB chip - LPDDR4X (options for 2GB / 4GB)
- 40PIN GPIO header
compatible with some Raspberry Pi HATs - TF card slot
- SARADC interface
outline dimensions
Certificate of Authorization
Balenie Obsahuje / Package Content
Luckfox-Aura-02064/04064
- Luckfox-Aura-02064
- SH1.0 3PIN cable ~100mm x2
- IPEX 4 to SMA cable x2
- 6DB antenna x2
- USB Type-A to Type-C cable ~1m x1
