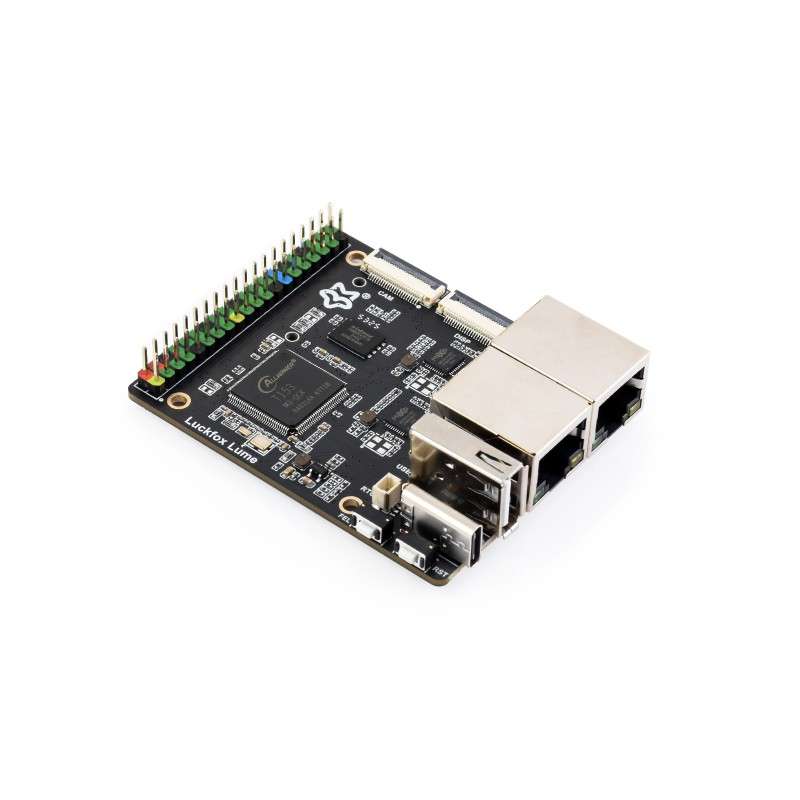

Luckfox Lume High-Performance Linux Dev.Board, Allwinner T153 Industrial Processor, 128MB DDR3 256MB Flash (WS-34119) PoE
WS-34119
€30.63
24.90 € tax excl.
Luckfox Lume High-Performance Linux Dev.Board, Allwinner T153 Industrial Processor, 128MB DDR3 256MB Flash (WS-34119) PoE
Luckfox Lume High-Performance Linux Dev.Board, Allwinner T153 Industrial Processor, 128MB DDR3 256MB Flash (WS-34119) PoE
- Part No.:Luckfox Lume PoE Kit
- PoE module : Included
Luckfox Lume High-Performance Linux Development Board, Based On The Allwinner T153 Multi-core Heterogeneous Industrial Processor, Dual Gigabit Ethernet Ports, Built-in 128MB DDR3 Memory And 256MB Flash Storage
Luckfox Lume
Based on the Allwinner T153 multi-core heterogeneous industrial processor
Version Options
Luckfox Lume
Standard version
Luckfox Lume PoE Kit
Comes with a PoE module
Specifications
| Processor | Quad-core Arm Cortex-A7 + Single-core RISC-V E907 | |
| Memory | 128MB DDR3 | |
| Storage | SPI NAND FLASH (256MB) | |
| Display Interface | MIPI DSI 4-lane | |
| Camera Interface | MIPI CSI 2-lane | |
| USB | USB2.0 Type-C port × 1, USB2.0 Type-A port × 1 |
|
| GPIO | 40PIN GPIO header | |
| Ethernet | 1000M Ethernet port × 2 | |
| External Storage | onboard TF card slot | |
| Power Input | 5V DC | |
| Others | 2PIN SH1.0 RTC batt header | |
High-Performance Industrial Processor
Features a quad-core Arm Cortex-A7 and a single-core RISC-V E907
MIPI DSI 4-lane interface
powerful performance, easy to drive large screens
* Supports up to 1920 × 1080 at 60Hz resolution.
For reference only, the 10.1-DSI-TOUCH-A is NOT included.
Dual Gigabit Ethernet Ports
Supports dual-port policy-based routing, enabling physical isolation between internal and external network traffic, ensuring critical data security and improving management efficiency
* Note: the PoE module is required for ETH0 PoE power supply function.
Onboard TF card slot
allows storage expansion via TF card
Suitable for more application examples
Pin definition
What's On Board
- T153M3-QCX
- SPI NAND FLASH (256MB)
- CSI camera interface
- DSI display interface
- RJ45 1000M Ethernet port with indicator
with PoE support - RJ45 1000M Ethernet port with indicator
- PoE module header
- USB2.0 HOST Type-A port
- Dual-color status LED
The red light indicates power supply status, and the green light indicates system operation status in the default image.
- Type-C port
for power supply and program burning - RESET button
- FEL button
Press it when powering on or resetting to enter download mode - RTC Batt header
- 40PIN GPIO header
- TF card slot
outline dimensions
Certificate of Authorization
Balenie Obsahuje / Package Content
Luckfox Lume PoE Kit
- Luckfox Lume x1
- PoE module x1
- Screws pack x1
- USB Type-A to Type-C cable ~1m x1
