Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)
      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)
      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)
      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)
      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)

      Keyduino NANO (ER-CDK07525N) Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)

      ER-CDK07525N
      €35.99

      29.99 € tax excl.

      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)

      Quantity :
      OUT OF STOCK

      Keyduino NANO (ER-CDK07525N)  Arduino with built-in NFC, NXP PN532, ATMEGA32u4 (Leonardo bootloader)

      Descrtiption

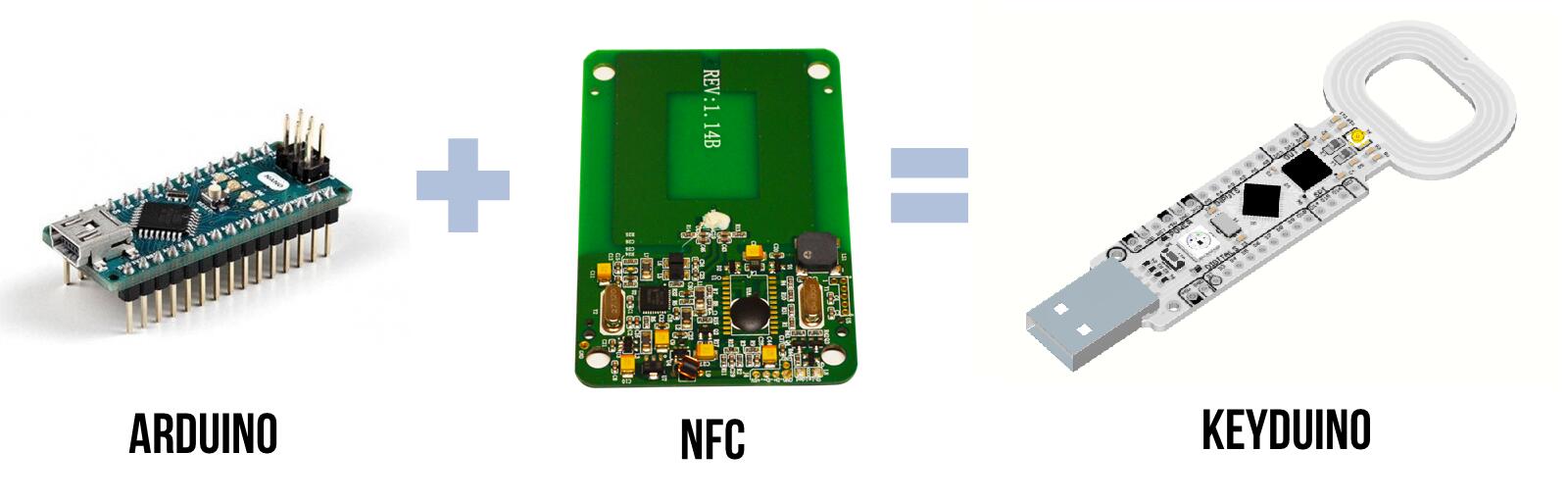

      KeyDuino NANO is an Arduino compatible ultra small development board with built-in NFC (Near-Field Communication).

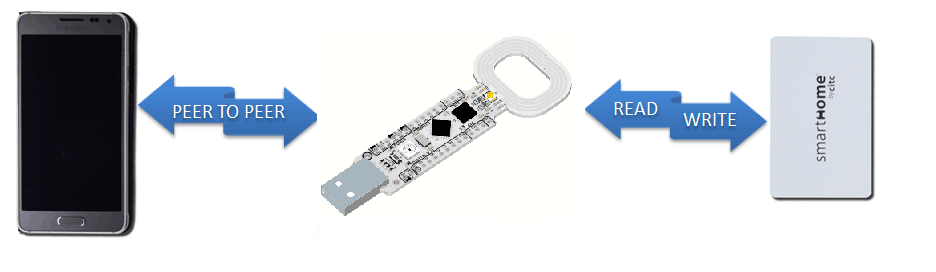

      This board will be the bridge that helps you wirelessly interact with your environment, drive motors, unlock strikes, control relays, read from a temperature sensor and all thanks to built in NFC connectivity, right out of the box. Reading & writing the content of an NFC tag or establish a peer to peer communication between KeyDuino and an NFC smartphone is easy !
      Keyduino_NANO_1
      Keyduino_NANO_2

      Features

      • Uses NXP PN532 chip for NFC
      • Processor : ATMEGA32u4 (Arduino Leonardo bootloader)
      • Input Voltage (Jack) – 7-12volts
      • On board 5v & 3.3v regulator
      • GPIO Pins – 20
      • Analog input channels – 12
      • DC Current per I/O Pin - 40 mA

      Package list

      • KeyDuino with USB cable x 1
      • NFC tags (NTAG213) x 1
      • Deported antenna with cable x 1

      Documentations

      ELECROW
      ER-CDK07525N
