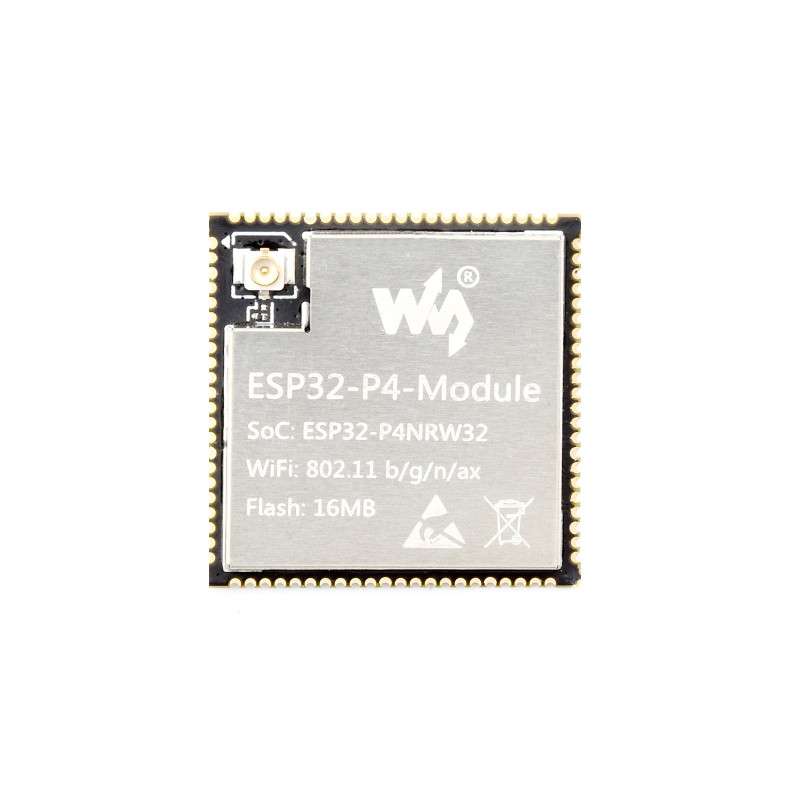

ESP32-P4-Module

Based On ESP32-P4 And ESP32-C6 Dual Chips



Features at a glance

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• Integrated ESP32-C6 chip with support for 2.4GHz Wi-Fi, compliant with 802.11 b/g/n/ax standards
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Specifications

Main Control Chip	ESP32-P4NRW32
RF chip	ESP32-C6H8
PSRAM	32MB
Flash	16MB
RF Band	802.11 b/g/n/ax; 2.4GHz Wi-Fi; Bluetooth 5.3
Operating Voltage	3.3V
Connector	castellated edge, pitch 1mm
Dimensions	25 × 25 (mm)

Pinout definition

High-quality Components

For stable performance of communication module

Original chip
ESP32-P4



Two connection methods for Antenna
IPEX / Castellated hole



Professional shield
Anti-interference & ESD protection

Application examples

Image Recognition, Smart Watches, Smart Industry, Human-Machine Interface (HMI), Voice Recognition, and IoT Applications

Outline Dimensions

Resources & Services

---

WIKI: www.waveshare.com/wiki/ESP32-P4-Module
