ThinkNode M5 Meshtastic (LoRa) Signal Transceiver |ESP32-S3 | 1.54” Screen | GPS Function-868 MHz (ILM13205D)

[LoRa signálny transceiver] Firmware sa prispôsobuje protokolu Meshtatic, umožňuje efektívny prenos a príjem signálov LoRa

[1,54-palcový EPD displej] Zobrazenie údajov a stavu zariadenia v reálnom čase

[Funkcia GPS polohovania] Vstavaný modul GPS poskytuje funkcie polohovania, vrátane GPS, GLONASS, BeiDou, QZSS

[Nabíjateľná lítiová batéria] Veľkokapacitná batéria s kapacitou 1200 mAh, môže pracovať nepretržite a spĺňa požiadavky dlhodobého používania vonku

[Hodiny RTC] Vstavané hodiny RTC, rýchlejší štart zariadenia, podpora prerušenia/prebudenia;

[Kompatibilné s aplikáciou Meshtastic] Pomocou aplikácie Meshtastic môžete nastaviť parametre zariadenia, spravovať informácie atď.

ThinkNode M5: High-performance LoRa communication device

Elecrow ThinkNode-M5 is a high-performance multi-function device that integrates advanced wireless communication technology and various sensors.

The device is powered by the ESP32-S3 processor and supports Bluetooth connectivity. Users can easily configure and monitor it via their mobile phones.

M5 comes pre-installed with Meshtastic firmware. Combined with the SX1262 wireless chip, the device can efficiently send and receive LoRa signals.

ThinkNode M5 is perfectly compatible with the Meshtatic official App. Users can use the App to configure and manage device parameters, message communication, map and location sharing, network status monitoring, data recording and exporting, custom settings, etc.

The ThinkNode-M5 features a 1.54-inch EPD display that allows users to view data and device status in real-time.  It is equipped with a 1200mAh rechargeable battery and can operate outdoors for an extended period.

The built-in GPS module of M5 ensures accurate positioning in any environment and can be used as an independent communication tool in the absence of network coverage or in emergencies to protect the safety of users.

The external LoRa antenna supports different frequency selection. The device adopts an integrated closed shell design, which is compact, easy to carry, and durable.

With a highly integrated design concept, ThinkNode-M5 integrates advanced communication technologies such as LoRa and GPS to achieve efficient connection and data exchange between devices. Whether in remote areas where cellular networks are not covered or in emergency situations, M5 can serve as a reliable independent communication tool.

Self-developed by Elecrow with exclusive design. Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com

Meshtastic App Compatible

Users can use the App to configure and manage parameters of the M5 device, communicate messages, share maps and locations, monitor network status, record and export data, customize settings, etc.

Low power consumption and long battery life

With a built-in 1.54" EPD display

ThinkNode M5 with GPS Positioning Function

Different applications of ThinkNode M5

Hardware Overview of ThinkNode M5

Feature

• Thinknode M5’s firmware is adapted to the Meshtastic protocol, it can realize efficient and stable transmission and reception of LoRa signals.
• Built-in GPS module, providing accurate positioning functions including GPS, GLONASS, BeiDou, QZSS;
• RTC clock can keep accurate time records even when power is off, and can realize faster hot start of the device, support interruption/wake-up.
• 1.54-inch EPD display screen for real-time viewing of data and device status;
• Built-in 1200mAh lithium battery, it can work continuously.
• Low power consumption, the maximum working current is about 340mA (CPU+LoRa transceiver), and the low power consumption is about 34uA.
• Compatible with the Meshtatic official App. Users can use the App to configure and manage parameters of the M5 device, communicate messages, share maps and locations, monitor network status, record and export data, customize settings, etc..
• The closed shell with integrated design is compact and portable, easy to carry and durable;
• External LoRa antenna ensures the stability and efficiency of signal transmission.



Target Group

Outdoor enthusiasts, emergency responders, rural and remote residents, technology enthusiasts and developers, logistics and transportation companies, community organizations;

Application

Outdoor adventure/Emergency communications/Community networking/Technology enthusiasts/Fleet management





Specification

Main Processor（ESP32-S3）
CPU/SoC	High-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz
System Memory	512KB SRAM、8M PSRAM
Storage	4M Flash, 384KB ROM
Firmware	Meshtastic firmware is fully compatible, and the signal is transmitted in LoRa mode
Display
Size	1.54 inch-EPD(monochrome ink screen)
Display Materials	E-lnk（Electronic Ink）
Resolution	200*200 or more
Driver Chip	SSD1681 (Via SPI or I2C interface)
Global Fresh Time	2s
Wireless Communication
Bluetooth	Bluetooth Low Energy and Bluetooth 5.4 (phone configuration)
LoRa	SX1262 LoRa Transceiver、US 915MHz / EU 868MHz（External antenna）
Hardware
Interface	Type-C Interface、RP-SMA Interface
Function	GPS Location(GPS, GLONASS, BeiDou, QZSS)、EPD Display、RTC、USB2.0、 PMU power management (built-in 1200mAh lithium battery), buzzer, etc.
Button	Knob Switch, Function Button,Toggle Button, GPS Switch, Reset Button
LED Indicator	Power supply, GPS/LoRa indication
Other
Power Input	5V/1A, supports USB or lithium battery power supply
Power consumption	The maximum working current is about 340mA (CPU+LoRa transceiver), and the low power consumption is about 34uA
Operating Temperature	-10~50°C
Storage Temperature	-20~60 °C
Relative humidity	10%-95%, @ 40°C (non-condensing)
Size	82*51.6*26.3m
Enclosure	ABS Plastic
Net weight	58g (Without case); 81g (With case)



Package List

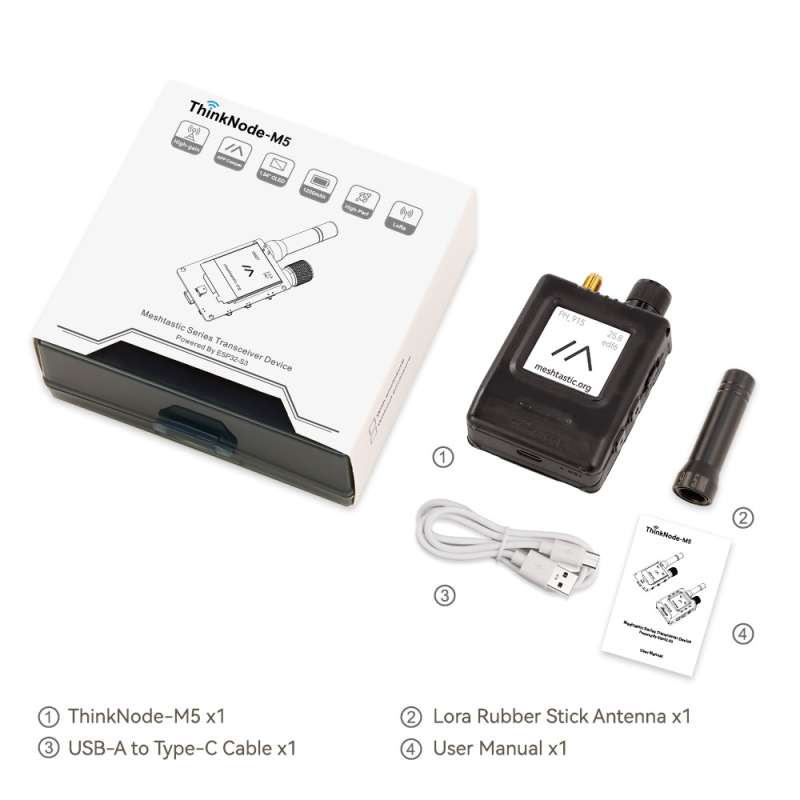

• 1x ThinkNode M5 LoRaWAN Gateway
• 1x USB-A to Type-C Cable
• 1x Lora Rubber Stick Antenna
• 1x User Manual
