ESP32-P4-WIFI6-DEV-KIT "C" High-Performance Dev.Board, Based On ESP32-P4 and ESP32-C6, Wi-Fi6/BT5 (WS-32057)
WS-32057
€92.13
74.90 € tax excl.
ESP32-P4-WIFI6-DEV-KIT "C" High-Performance Dev.Board, Based On ESP32-P4 and ESP32-C6, Wi-Fi6/BT5 (WS-32057)
ESP32-P4-WIFI6-DEV-KIT "C" High-Performance Dev.Board, Based On ESP32-P4 and ESP32-C6, Wi-Fi6/BT5 (WS-32057)
- Part No.:ESP32-P4-WIFI6-DEV-KIT-C
ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5 / BLE 5
ESP32-P4-WIFI6-DEV-KIT
Development Board
Development Board
High-performance Development Board Based On ESP32-P4 And ESP32-C6
Rich Human-machine Interfaces
Development Board Introduction
This product is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and SDIO Host 3.0 for high-speed connectivity.
The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
Key features include:
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
- Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Kit Selection
Kit Connection Examples
DSI Capacitive Touch Display Comparison
Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience
| Model | 7-DSI-TOUCH-A | 10.1-DSI-TOUCH-A |
|---|---|---|
| Resolution | 720 × 1280 (H×V) | 800 × 1280 (H×V) |
| Communication Interface | MIPI 2-lane | |
| Brightness | 450cd/m² (supports customization for 1000cd/m² high brightness version) | 400cd/m² (supports customization for 1000cd/m² high brightness version) |
| Touch Chip | GT9271 | |
| Outline Dimension | 120.24 × 189.32 (mm) | 147.0 × 239.0 (mm) |
| Display area | 88.0 × 155.0 (mm) | 135.36 × 216.58 (mm) |
| Pixel pitch | 0.12075 (H) × 0.12075 (V)(mm) | 0.1692 (H) × 0.1692 (V) (mm) |
| Contrast ratio | 800:1 | |
| Operation temperature | 0℃~60℃ | |
* the DSI LCD is only included in the ESP32-P4-WIFI6-DEV-KIT-B and ESP32-P4-WIFI6-DEV-KIT-C.
Raspberry Pi Camera (B)
5MP | Manual Focus
Compatible with Raspberry Pi series boards
| Sensor | OV5647 | CMOS size | 1/4inch |
|---|---|---|---|
| PIXELS | 5MP | Aperture | F2.0 |
| Focal length | 6mm | Field of view | 60.6° |
| Night Vision function | Not support | FOCUSING | Manual Focus |
Highly integrated and powerful performance
Adopts ESP32-P4 Module, onboard ESP32-C6 and 16MB Nor Flash
WiFi 6 and Bluetooth module
Onboard ESP32-C6 chip to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE
for ESP32-P4-WIFI6-DEV-KIT, using SDIO interface protocol for communication,
stable connection and efficient transmission
Reserved PoE Module Header
More Flexible for Power Supply
Connect to a PoE Module for PoE Power Supply
Provides Both Network Connection And Power Supply for ESP32-P4-WIFI6-DEV-KIT board with Only One Ethernet Cable
* the PoE HAT (C) and the switch in the picture above are NOT included.
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
* The DSI LCD is only included in the ESP32-P4-WIFI6-DEV-KIT-B/C
What's On Board
- ESP32-P4NRW32
ESP32-P4 chip, with 32MB PSRAM - ESP32-C6
SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4 - 16MB Nor Flash
- ESP32-C6 UART pads
- PoE module header
connect to external PoE module (NOT included) for PoE power supply function - 40PIN GPIO header
- 100M RJ45 Ethernet port
- USB OTG function selection
switching to HOST end for expanding USB ports - USB-A ports
USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper - Speaker header
MX1.25 2P connector, supports 8Ω 2W speaker - Onboard microphone
- 3.5mm audio jack
Supports audio playback via connected headphones
- Camera interface
MIPI-CSI (2-lane), supports OV5647 camera, etc - Display interface
MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screen - I2C interface
- I3C interface
- Type-C UART port
for power supply, program burning and debugging - Type-C USB port
for power supply, program burning - RTC battery header
for connecting rechargeable RTC battery (supports rechargeable RTC batteries only) - PWR
Power indicator - ESP32-C6 SMD antenna
- BOOT Button
Press it when powering on or resetting to enter download mode - RST Reset button
- TF card slot
SDIO 3.0 interface protocol
Pin definition
outline dimensions
Balenie Obsahuje / Package Content

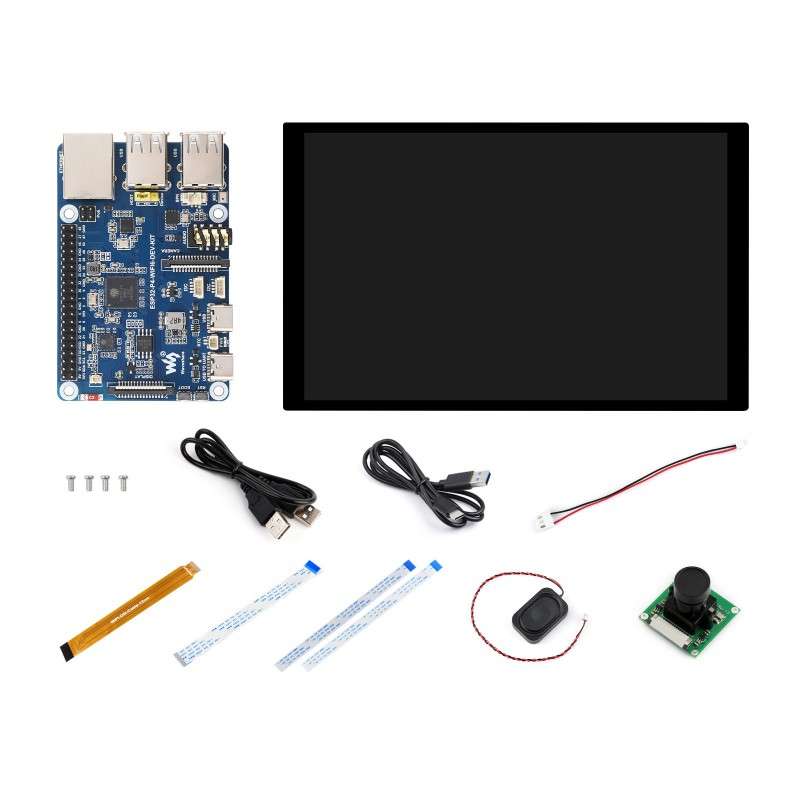

ESP32-P4-WIFI6-DEV-KIT-KIT-C
- ESP32-P4-WIFI6-DEV-KIT x 1
- 10.1-DSI-TOUCH-A x 1
- RPi Camera (B) x 1
- 8Ω 2W speaker x 1
- FFC 15PIN cable x 1
- MIPI-DSI-Cable-12cm x 1
- FFC 22PIN cable x 2
- MX1.25 2PIN to SH1.0 2PIN cable ~80mm x 1
- MX1.25 2PIN to 2.54 3PIN cable ~110mm x 1
- USB Type-A dual-plug cable x 1
- USB Type-A to Type-C cable x 1
- Standoffs x 1
- Screws pack x 1
