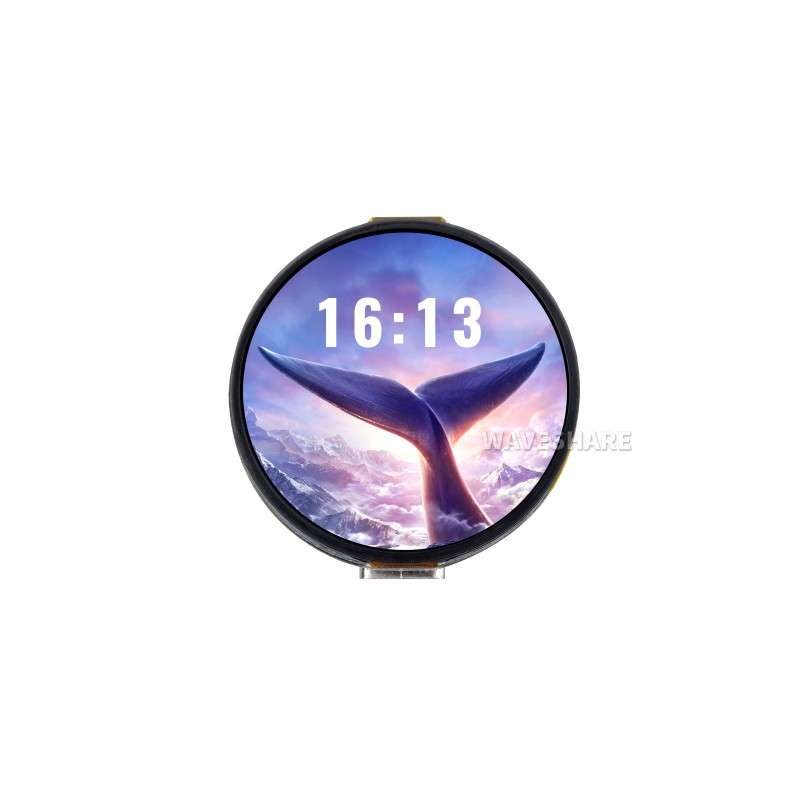

ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI , Wi-Fi/BT5 (WS-32767)
WS-32767
€25.71
20.90 € tax excl.
ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI , Wi-Fi/BT5 (WS-32767)
ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI , Wi-Fi/BT5 (WS-32767)
ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and Bluetooth 5
ESP32-S3 1.32inch AMOLED Display Development Board
Embedded with CO5300 Display Driver and CST820 Capacitive Touch Chip
Features
The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.
- Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
- Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash memory
- Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
- Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
- Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
- Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
- Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
AMOLED parameters
| Display Panel | AMOLED | Display Size | 1.32 inch |
|---|---|---|---|
| Resolution | 466 × 466 pixels | Display Colors | 16.7M |
| Brightness | 500 cd/㎡ | Contrast Ratio | 10000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | CST820 |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-machine Interaction Function. Supports connecting to a Batt. for independent operation
Adopts AMOLED screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images
178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
Onboard audio codec chip
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, dev resources, tutorials to help you easily get started
Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support,
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
What's On Board
- ESP32-S3-PICO-1-N8R8
Wi-Fi and Bluetooth SoC, up to 240MHz operating frequency, with onboard 8MB PSRAM and 8MB Flash memory - PWR button
for power supply ON/OFF when powered by Lithium Batt., driver required - BOOT button
Press and hold the BOOT button, then power up again to enter download mode - MX1.25 2PIN Lithium Batt. header
for 3.7V Lithium Batt., supports charging and discharging - MX1.25 2PIN speaker header
Audio signal output, supports connecting external speakers
- SH1.0 12PIN interface
for external device connection and debugging, allowing flexible configuration of peripheral functions - Type-C port
for program burning and log printing - Digital microphone
for audio capture - Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) - ES8311
High-performance and low-power audio codec chip
interface definition
outline dimensions
Balenie Obsahuje / Package Content
- ESP32-S3-Touch-AMOLED-1.32 x1
- 8Ω 2W speaker x1
- SH1.0 12PIN cable x1
WS-32767
