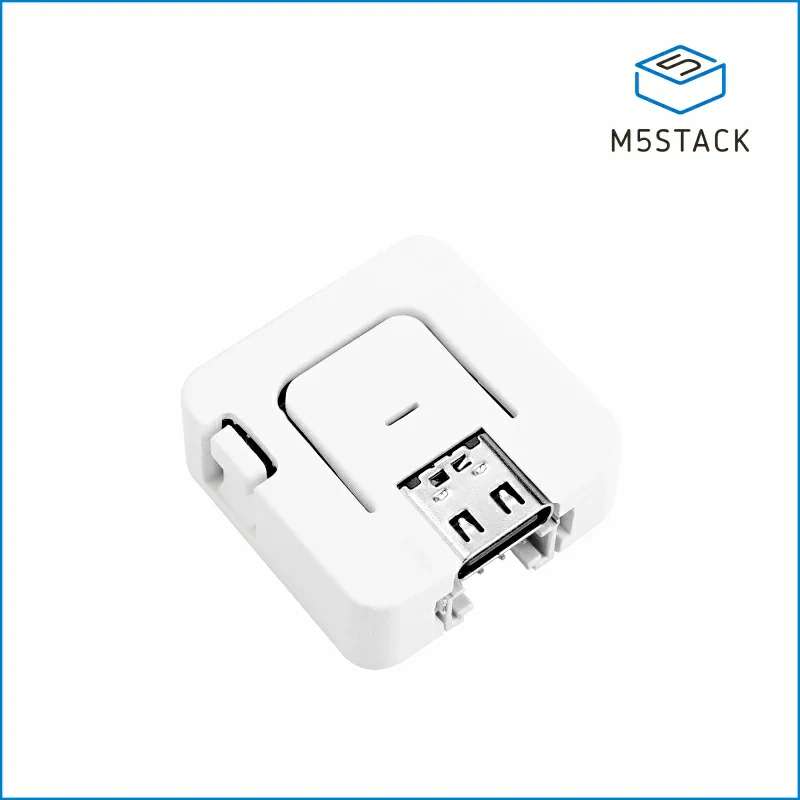

AtomS3 Lite ESP32S3 Dev Kit (M5-C124) based on ESP32-S3FN8

Description

ATOM S3 Lite is a versatile programmable controller that belongs to the Atom Series in the M5Stack Development Kit lineup. Powered by the ESP32 S3 FN8 scheme, this compact controller measures only 24x24x9.5mm, making it an ideal choice for space-constrained projects. It boasts an impressive 8MB SPI flash memory, providing ample storage capacity for your applications. With integrated Wi-Fi functionality and a built-in 3D antenna, the ATOM S3 Lite ensures seamless connectivity and reliable wireless communication. Equipped with a 5V to 3.3V power circuit, the ATOM S3 Lite offers stable and efficient power management. It features useful components such as infrared emitting light, RGB status indicators, a programmable button, and versatile GROVE/HY2.0-4P interfaces. These features enable easy integration with various sensors, actuators, and external devices, expanding the possibilities for your projects. The product also includes a power supply and 6 GPIO headers on the bottom, facilitating convenient and flexible expansion applications. With a convenient Type-C interface, the ATOM S3 Lite allows hassle-free program downloading and seamless serial port communication. The device also comes with an M2 screw hole on the back, providing a secure mounting option for your projects. Whether you're working on embedded smart devices, IoT applications, or prototyping projects, the ATOM S3 Lite is a reliable and compact solution that empowers your creativity and enables endless possibilities.

Features

• Developed based on ESP32-S3FN8
• Comes with USB download function
• Programmable button
• Infrared emission function
• Expandable pins and interfaces
• Development platform: Arduino, UIFlow

Includes

• 1x AtomS3 Lite

Applications

• IoT node
• Microcontroller
• Wearables

Specification

• MCU ESP32-S3FN8
• RGB WS2812B-2020
• DCDC SY8089
• Operating temperature 0°C ~ 40°C
• Supply voltage 5V
• Power supply mode TYPE C
• Output voltage 3.3V
• IO interface × 6 G5/G6/G7/G8/G38/G39
• Product Size 24mm × 24mm ×9.5mm
• Package Size 65mm × 44.5mm × 14mm
• Product Weight 5.3g
• Package Weight 9.5g
