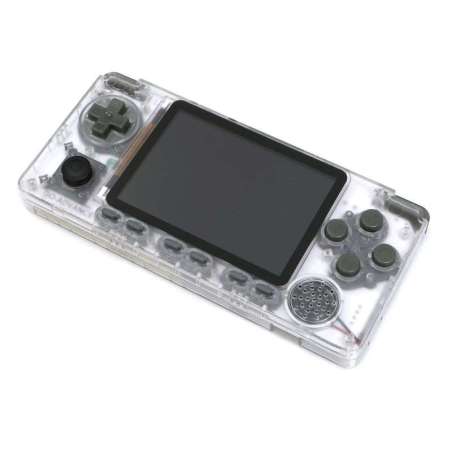

ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)
      ODROID-GO Advance Black Edition Clear White (G200513062628)

      ODROID-GO Advance Black Edition Clear White (G200513062628)

      HK-ODROID-GO-ADV-CLR

      ODROID-GO Advance Black Edition Clear White (G200513062628)

      Quantity :

      ODROID-GO Advance Black Edition Clear White (G200513062628)

      PACKAGE INCLUDE

      A USB Type-C Power Cable J D-PAD rubber
      B Top enclosure K A, B, X, Y button rubber
      C Bottom enclosure L battery sticker
      D Plastic L/R/L2/R2 trigger, X, Y, power Buttons M Analog joystick
      E Plastic D-pad, A, B Buttons N 320×480 TFT LCD
      F ODROID-GO-Advance board O 0.5W speaker
      G 3000mAh battery P 1.7×5 screws (7 pcs)
      H LCD window Q 1.7×8 screws (4 pcs)
      I I ~ VI button rubber R Driver



      * 8GB or higher capacity MicroSD card is additionally required.

      You can download the OS image and then, you will write the image to your SD card. There are some ways to write the OS image. For beginners, we recommend the use of an Etcher tool.

      THE EMULATOR SUPPORTS

      atari2600
      atari5200
      atari7800
      atarilynx
      gamegear
      gb
      gba
      gbc
      mastersystem
      megadrive
      nes
      pcengine
      pcenginecd
      psx
      segacd
      snes
      psp

      And more

      SPECIFICATIONS

      Processor CPU : RockChip RK3326(Quad-Core ARM Cortex-A35 1.3GHz)
      GPU : Mali-G31 Dvalin
      Memory 1GB (DDR3L 786Mhz, 32 Bits bus width)
      Storage SPI Flash(16Mbytes Boot), Micro SD Card slot(UHS-1 Capable interface)
      Display 3.5inch 320×480 TFT LCD (ILI9488, MIPI interface)
      Audio Earphone Jack, 0.5Watt 8Ω Mono
      Battery Li-Polymer 3.7V/3000mAh, Up to 9 hours of continuous game playing time
      DC Jack 5V input, USB-C power connector: A USB-C charging cable is included in the package.
      External I/O USB 2.0 Host x 1, 10Pin port(I2C, GPIO, IRQ at 3.3Volt)
      Input Buttons F1, F2, F3, F4, F5, F6, A, B, X, Y, Direction Pad, Left Shoulder, Right Shoulder, Left Shoulder2, Right Shoulder2, Analog joystick
      Wireless Built-in 2.4Ghz 802.11b/g/n (ESP-WROOM-S2)
      Power consumption Game emulation: 300 ~ 550mA (depends on backlit brightness and type of game emulations and the wireless usage)
      Power off mode: <1mA
      If you turn off the WiFi, the power consumption will be same as the previous Revision 1.0.
      Charging time 2.5~3 hours when the device turns off. When you play game, it takes 4~5 hours.
      Dimensions 155x72x20 mm (6.1×2.8×0.8 inch), Weight: 180 g (6 oz)



      DIAGRAM



       BOARD DETAIL

      A CPU : Rockchip RK3326 K USB-C power Jack
      B RAM : 1GB DDR3L L 10pin expansion port
      C SPI Flash(16Mbytes Boot) M Audio jack
      D MicroSD card slot N 20pin LCD connector
      E Forced SD card boot(without spirom) O PWR switch
      F UART port(But not mounted default) P Analog joystick connector
      G Speaker connector Q Left trigger button
      H Battery connector R Right trigger button
      I USB 2.0 type-A Host S Wireless module ESP-WROOM-S2
      J Statue LED(charger, alive, power)

      Hardkernel
      HK-ODROID-GO-ADV-CLR
