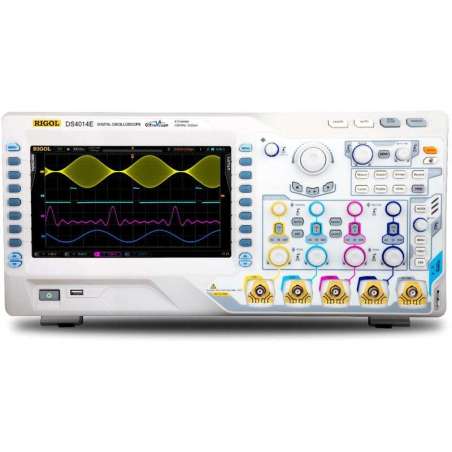

DS4014E (Rigol) 4x100MHz , 2GSa/s sample rate, 14mil. memory points, 60.000 Waveforms/s

DS4014E (Rigol) 4x100MHz , 2GSa/s sample rate, 14mil. memory points, 60.000 Waveforms/s

Reference: DS4014E

€1,695.00
Tax included
1695.00 € tax excluded

DS4014E (Rigol) 4x100MHz , 2GSa/s sample rate, 14mil. memory points, 60.000 Waveforms/s

Quantity

  • Secure shopping Secure shopping
  • Quick delivery Quick delivery
  • Help with buying Help with buying

DS4014E (Rigol) 4x100MHz , 2GSa/s sample rate, 14mil. memory points, 60.000 Waveforms/s

The DS4000E series digital oscilloscope is a versatile, high performance oscilloscope focused on the mainstream embedded applications. Featuring bandwidths of 100 MHz and 200 MHz, sample rates up to 2GSa/s and up to 4 analog channels, the DS4000E provides excellent value for embedded test applications including communications, defense, aerospace, industrial electronics, R&D and educational fields.

  • 100 MHz bandwidth
  • 2 GSa/s sample rate
  • 4 Analog channels available
  • 14 million memory points, standard
  • 60,000 Waveforms per second
  • Original Ultravision technology
  • Hardware allows for real-time, continuous waveform recording and waveform analysis
  • Download datasheet

Bandwidth 100 MHz
Analog Channels 4
Vertical Sensitivity 1 mV/div - 10V/div
Real-time Sample Rate 2 GSa/s
Memory Depth 14 Million Points
Waveform Acquisition Rate 60,000 Waveforms per Second
Standard Interface USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution 8 bits
Math +, -, ×, FFT, customizable user defined
Cursor Measurements Manual, Track and Auto Measure modes

DS4014E
