Features

• Master: ESP-01/ ESP-01S (the module does not include ESP-O1/ ESP-01S)
• Temperature and humidity sensor: DHT11

Specifications

• Working voltage: DC 3.7V-12V (it can be powered by 3.7v lithium battery)
• Measuring range: 10-90% RH 0-50℃
• Measuring accuracy: Temperature: ±2℃ Humidity: ±5% RH

Application Examples

• 1. Power supply: 3.7V-12V DC power supply connected to VCC GND (2.54mm pin)
• 2. Download the program to ESP-01S

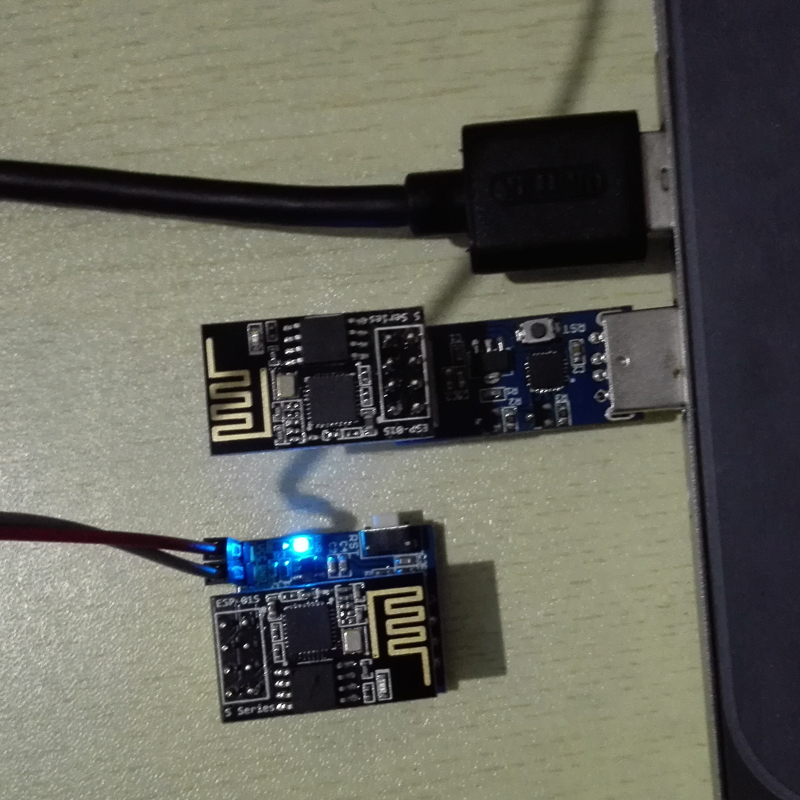

• 3. Insert ESP-01/ ESP-01S into the 2 * 4 Pin (in the direction of the arrow), show as below:

• 4. Temperature and humidity sent to another WiFi module, the serial display: show as below:

Package list

• ESP8266 esp-01/ ESP-01S DHT11 Temperature Humidity Module  1x
