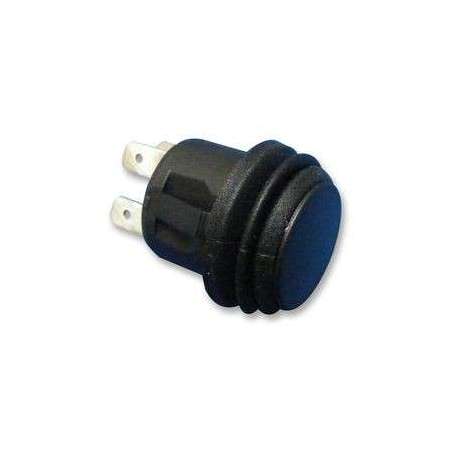

R13-527A2-02-BB (SCI) IP65 Water Resistant Push Button Panel Mounting
R13-527A2-02-BB
R13-527A2-02-BB (SCI) IP65 Water Resistant Push Button Panel Mounting
R13-527A2-02-BB (SCI) IP65 Water Resistant Push Button Panel Mounting
| Manufacturer | SCI |
| Switch type | push-button |
| Mounting | panel mounting |
| AC contacts rating* | 6 A / 250 V AC |
| Flammability rating | UL94V-2 |
| Max. contact resistance: | 50 mΩ |
| AC test voltage | 1.5 kV |
| Terminals plating | silver plated |
| Body material | polyamide |
| Body dimensions | Ø17.5 x 18 mm |
| Panel thickness | max 3 mm |
| Mounting hole diameter | Ø20.2 mm |
| Operating temperature | -25...70°C |
| Sealing | IP65 |
