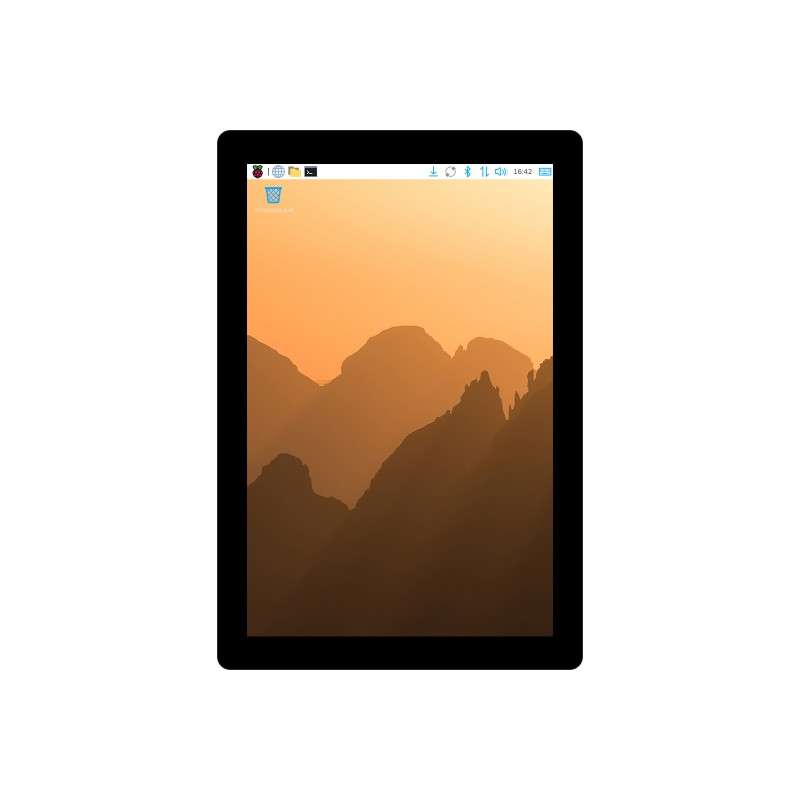

Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 Resolution, 10-Point Touch, IPS Display Panel (WS-35353)
WS-35353 (SC2005)
€97.66
79.40 € tax excl.
Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 Resolution, 10-Point Touch, IPS Display Panel (WS-35353)
Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 Resolution, 10-Point Touch, IPS Display Panel (WS-35353)
Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 resolution, 10-Point Touch, IPS display panel
Raspberry Pi 10.1" Touch Display 2
designed by Raspberry Pi
- Size
10.1" - Resolution
1200 × 1920 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
I2C - Brightness
400cd/㎡
- Size
Product Introduction
10.1inch Raspberry Pi Touch Display 2 is a 10.1inch touchscreen display for Raspberry Pi. Featuring an IPS display panel with a 1200 × 1920 resolution and 10-point capacitive touch support, it provides a smooth and convenient human-machine interaction experience for Raspberry Pi projects.
The display connects to the Raspberry Pi via the MIPI DSI interface and is powered through the GPIO header, offering a simple and reliable connection. When used with Raspberry Pi OS, the display supports touch functionality and an on‑screen keyboard, without requiring additional drivers or complex configuration.
With a large display area and flexible touch interaction, it is suitable for various applications such as smart home control panels, information display terminals, self-service kiosks, and robot interaction interfaces.
* for reference only, the above controller boards or hosts are NOT included.
Device & System Support
Raspberry Pi 5 / CM5 / CM4
Supports Raspberry Pi OS, 10-point touch
Note: CM4 only supports 4-lane DSI on DSI1. When using this display, a CM4 baseboard that supports 4-lane DSI is also required for proper operation. Some baseboards with a 15pin DSI connector may not be compatible.
Connection Examples
Working with Raspberry Pi 5
Working with Compute Module 5
* for reference only, the above controller boards or hosts are NOT included.
How to install
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
* for reference only, the Raspberry Pi boards above are NOT included.
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
up to 10-point touch, depending on the operating system
Interface Introduction
Dimensions
Balenie Obsahuje / Package Content
- 10.1inch Raspberry Pi Touch Display 2 x1
- 22PIN to 22PIN FPC cable x1
- GPIO cable x1
- Screws pack x1
