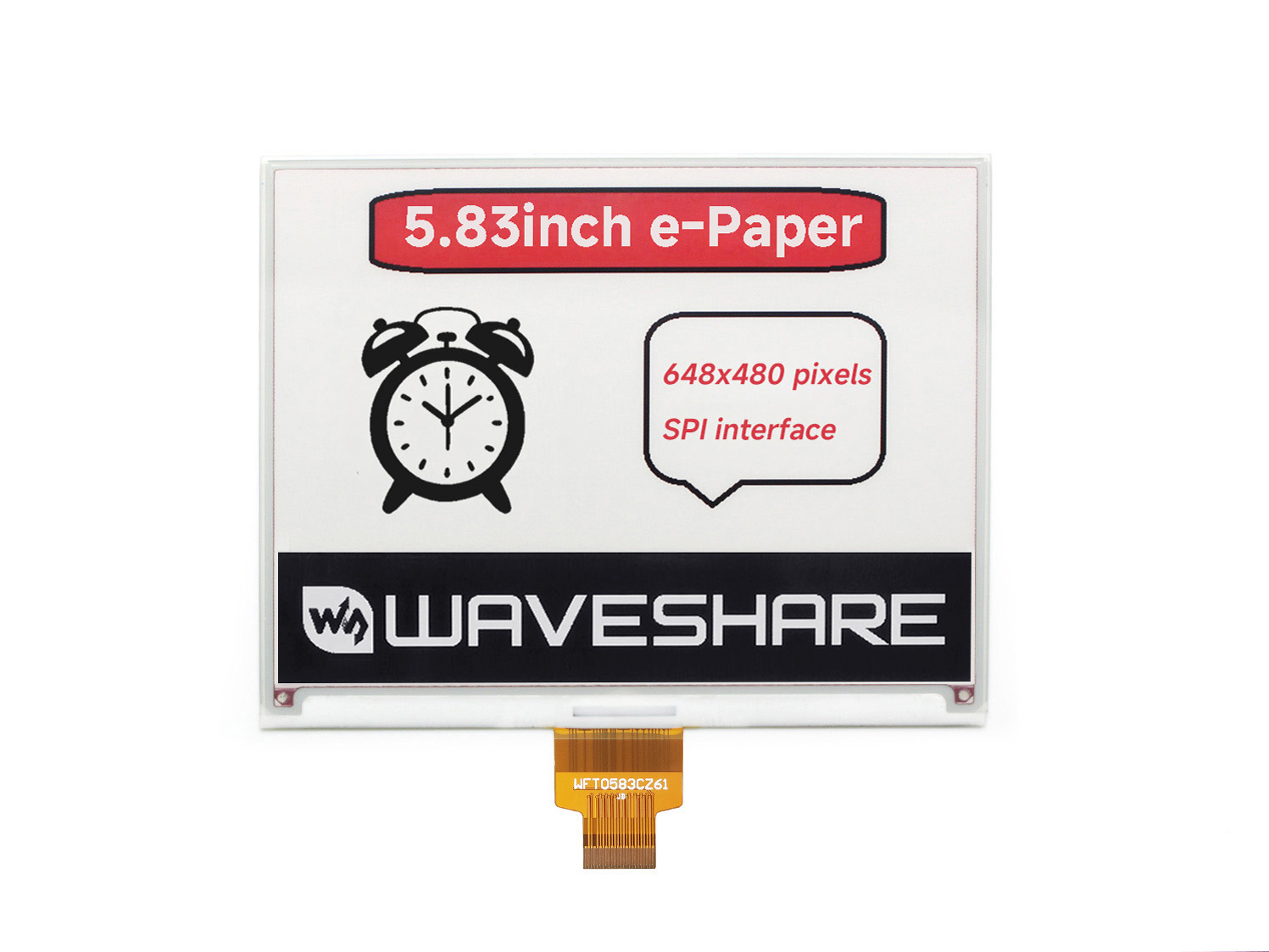

E-Ink display 600x448, 5.83inch HAT for Raspberry Pi, red/black/white three-color (WS-14600) 5.83inch e-Paper

600x448, 5.83inch E-Ink display HAT for Raspberry Pi, red/black/white three-color, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V~5V
• Interface: SPI
• Outline dimension: 125.40mm × 99.50mm
• Display size: 118.80mm × 88.26mm
• Dot pitch: 0.198 × 0.197
• Resolution: 600 × 448
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 14s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

SYMBOL	DESCRIPTION
VCC	3.3V~5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, low active

Dimensions

Package Content

1. 5.83inch e-Paper (B) x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1

Development Resources

Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(B)_

Selection Guide

Part Number	Colors	Grey Level	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh Time (s)	Interface	Pi Header1
1.54inch e-Paper Module	black, white	2	200x200	27.60 × 27.60	48.0 × 33.0	2	0.3	SPI	×
1.54inch e-Paper Module (B)	red, black, white	2	200x200	27.60 × 27.60	48.0 × 33.0	8	N/A	SPI	×
1.54inch e-Paper Module (C)	yellow, black, white	2	152x152	27.51 × 27.51	48.0 × 33.0	27	N/A	SPI	×
2.13inch e-Paper HAT	black, white	2	250x122	48.55 × 23.71	65.0 × 30.2	2	0.3	SPI	√
2.13inch e-Paper HAT (B)	red, black, white	2	212x104	48.55 × 23.71	65.0 × 30.2	15	N/A	SPI	√
2.13inch e-Paper HAT (C)	yellow, black, white	2	212x104	48.55 × 23.71	65.0 × 30.2	15	N/A	SPI	√
2.7inch e-Paper HAT	black, white	2	264x176	57.29 × 38.19	85.0 × 56.0	6	N/A	SPI	√
2.7inch e-Paper HAT (B)	red, black, white	2	264x176	57.29 × 38.19	85.0 × 56.0	15	N/A	SPI	√
2.9inch e-Paper Module	black, white	2	296x128	66.89 × 29.05	89.5 × 38.0	2	0.3	SPI	×
2.9inch e-Paper Module (B)	red, black, white	2	296x128	66.89 × 29.05	89.5 × 38.0	15	N/A	SPI	×
2.9inch e-Paper Module (C)	yellow, black, white	2	296x128	66.89 × 29.05	89.5 × 38.0	15	N/A	SPI	×
4.2inch e-Paper Module	black, white	2	400x300	84.80 × 63.60	103.0 × 78.5	4	N/A	SPI	×
4.2inch e-Paper Module (B)	red, black, white	2	400x300	84.80 × 63.60	103.0 × 78.5	15	N/A	SPI	×
4.2inch e-Paper Module (C)	yellow, black, white	2	400x300	84.80 × 63.60	103.0 × 78.5	15	N/A	SPI	×
4.3inch e-Paper UART Module	black, white	4	800x600	88.00 × 66.00	118.0 × 75.0	1.5	N/A	UART	×
5.83inch e-Paper HAT	black, white	2	600x448	118.8 × 88.26	125.4 × 99.5	3.5	N/A	SPI	√
5.83inch e-Paper HAT (B)	red, black, white	2	600x448	118.8 × 88.26	125.4 × 99.5	14	N/A	SPI	√
5.83inch e-Paper HAT (C)	yellow, black, white	2	600x448	118.8 × 88.26	125.4 × 99.5	26	N/A	SPI	√
7.5inch e-Paper HAT	black, white	2	640x384	163.20 × 97.92	170.2 × 111.2	6	N/A	SPI	√
7.5inch e-Paper HAT (B)	red, black, white	2	640x384	163.20 × 97.92	170.2 × 111.2	16	N/A	SPI	√
7.5inch e-Paper HAT (C)	yellow, black, white	2	640x384	163.20 × 97.92	170.2 × 111.2	16	N/A	SPI	√

1. Standard Raspberry Pi header on module, allowed to be attached onto Pi directly, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
