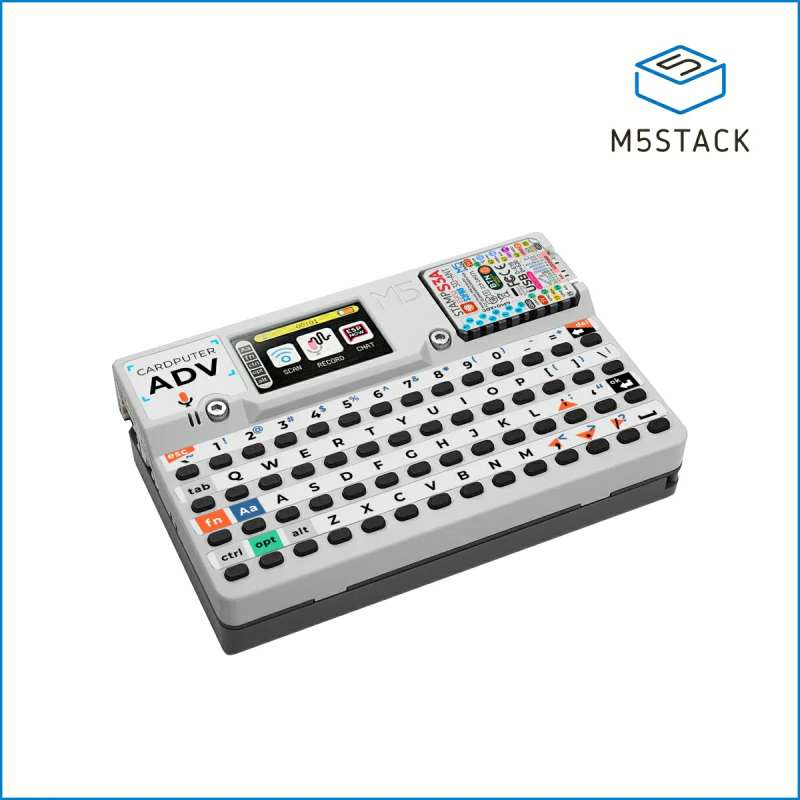

M5Stack Cardputer Adv Version ESP32-S3 (M5-K132-ADV)  powered by the Stamp-S3A core

Description

Cardputer-Adv is a programmable card-sized computer powered by the Stamp-S3A core module (based on ESP32-S3FN8). It integrates a 1.14" LCD display and a 56-key minimalist keyboard for convenient interaction and input operations.

In terms of audio, it features an ES8311 audio codec, a high SNR MEMS microphone, an NS4150B amplifier, and a 1W speaker, providing high-quality audio input and output capabilities. Additionally, it has a 3.5mm audio output jack for connecting external headphones or speakers.

Internally, it is equipped with a 1750mAh high-capacity lithium battery, combined with a low-power design and an independent power switch to ensure good battery life. It integrates a 6-axis motion sensor BMI270, an infrared emitter, a microSD card slot, and also provides an HY2.0-4P Grove port and an EXT 2.54-14P expansion bus for connecting sensors and other peripherals.

The base contains magnets for metal attachment and is compatible with LEGO hole extensions. This product is suitable for quick function prototyping, industrial control, home automation, and other scenarios.

Features

• Stamp-S3A core controller
• 56-key keyboard
• 1.14" LCD display
• 160gf comfortable keypress feel
• ES8311 audio codec
• High SNR MEMS microphone
• NS4150B amplifier + 1W speaker
• 3.5mm audio output interface
• Infrared emitter
• 6-axis motion sensor BMI270
• HY2.0-4P Grove port
• EXT 2.54-14P expansion bus
• microSD card slot
• Built-in 1750mAh Li-ion battery
• Magnetic back design
• LEGO hole compatible
• Development Platform
  • Arduino
  • UiFlow2
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Cardputer-Adv

Applications

• Rapid prototyping and functional verification
• Industrial control and automation
• Embedded systems development and learning
• Wireless communication and IoT projects

Specifications

• SoC ESP32-S3FN8 @ Dual-core Xtensa LX7, up to 240MHz
• Flash 8MB
• External Storage microSD
• Display ST7789V2@1.14", 240 x 135px
• Keyboard 56 keys (4 x 14)
• Key Actuation 160gf
• Expansion Ports HY2.0-4P + EXT 2.54-14P
• IR 1x IR emitter
• Audio Codec ES8311
• Speaker NS4150B amplifier + 8Ω@1W speaker
• Microphone MEMS microphone, SNR: 65 dB
• IMU BMI270
• Battery Capacity 1750mAh
• Operating Temp. 0 ~ 40°C
• Product Size 84.0 x 54.0 x 19.6mm
• Product Weight 81.0g
• Package Size 145.7 x 95.0 x 20.7mm
• Gross Weight 98.5g
