What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.

Power switch operation：

• Power on ：Long press power button for 2 seconds

• Power on ：Short press power button for 6 seconds

Notice:

• Baudrate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K

• Only Orange type is available for now

• If you find out your M5StickC couldn’t power on without a USB in, it might because the battery enter the battery protection mode, caused by low-volatge, over-charged, ver-heat … To exit the battery protection mode, please keep charging the battery for around 40 mins. Our team is working on the solution.



Product Features

• 5V DC power supply
• USB Type-C
• ESP32-based
• 4 MByte Flash
• 6-Axis IMU MPU6886
• Red LED
• IR transmitter
• Microphone
• 2 Buttons, LCD(0.96 inch), 1 Reset
• 2.4G Antenna: Proant 440
• 80 mAh Lipo Battery
• Extendable Socket
• Grove Port
• Wearable & Wall mounted
• Development Platform UIFlow, MicroPython, Arduino

ESP32 Features

• 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual mode Bluetooth (classic and BLE)
• Hall sensor
• 10x capactive touch interface
• 32 kHz crystal oscillator
• PWM/timer input/output available on every GPIO pin
• SDIO master/salve 50MHz
• SD-card interface support

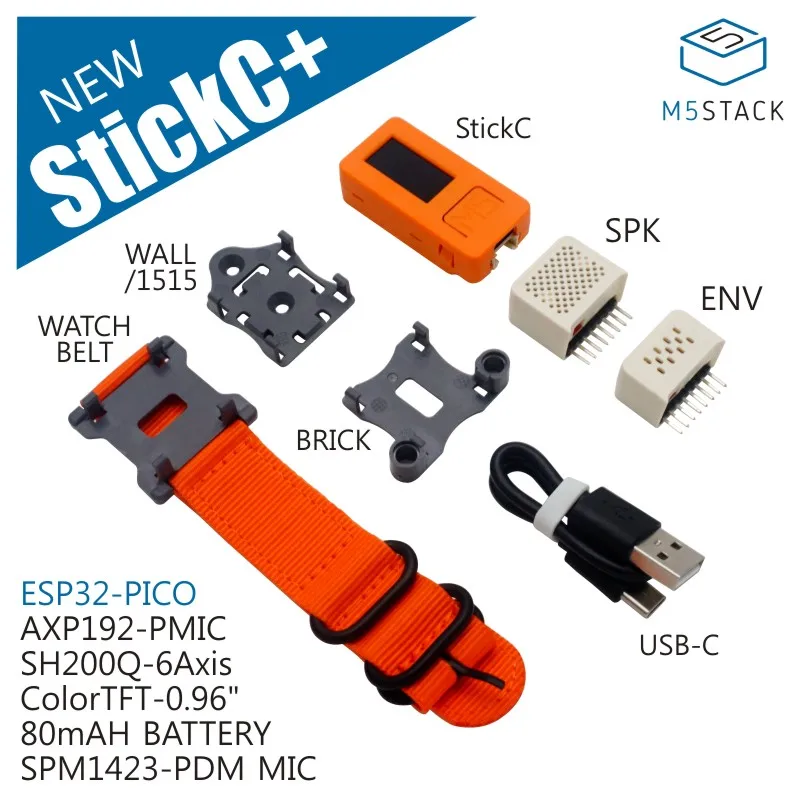

Kit with 2 hat:

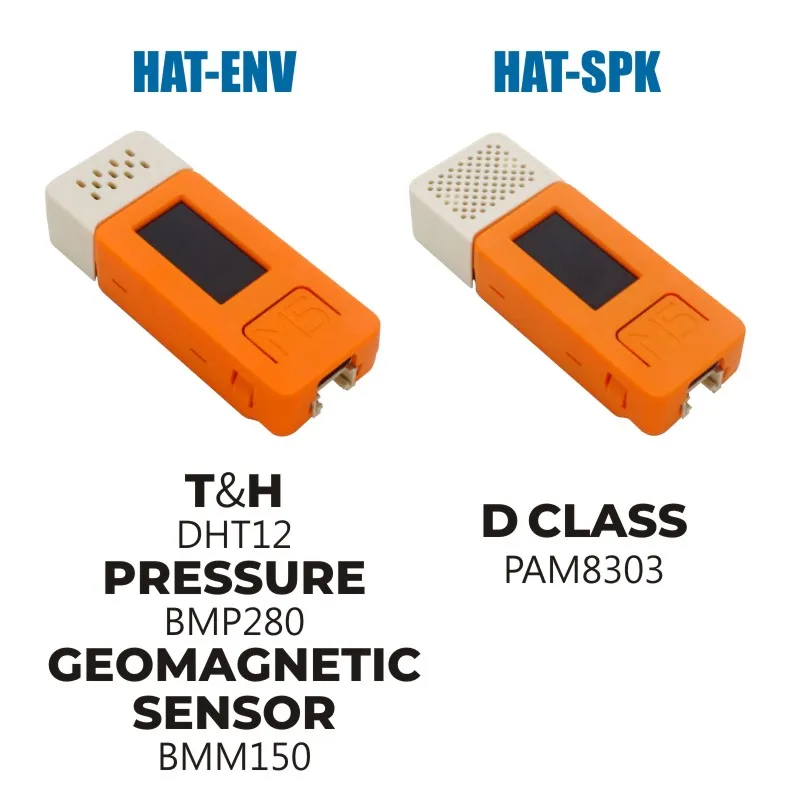

Hat ENV It is able to detect the temperature, humidity, air pressure and magnetic field. This product relates via I2C protocol which allows you to obtain 4 types of environment data thru just 2pins, together with the tiny body, makes it a powerful application for envitonment data collecting. Hat SPK is an M5StickC compatible speaker, integrated PAM8303 amplifier (3w single channel type D power amplifier), High PSRR and differential inputs eliminate noise and rf interference, thus it has the characteristics of simple functions and high audio reproduction.

Documents / Download

• Download
• Projects
• Documents
• GitHub
• Videos
• YouTube

Package Include
