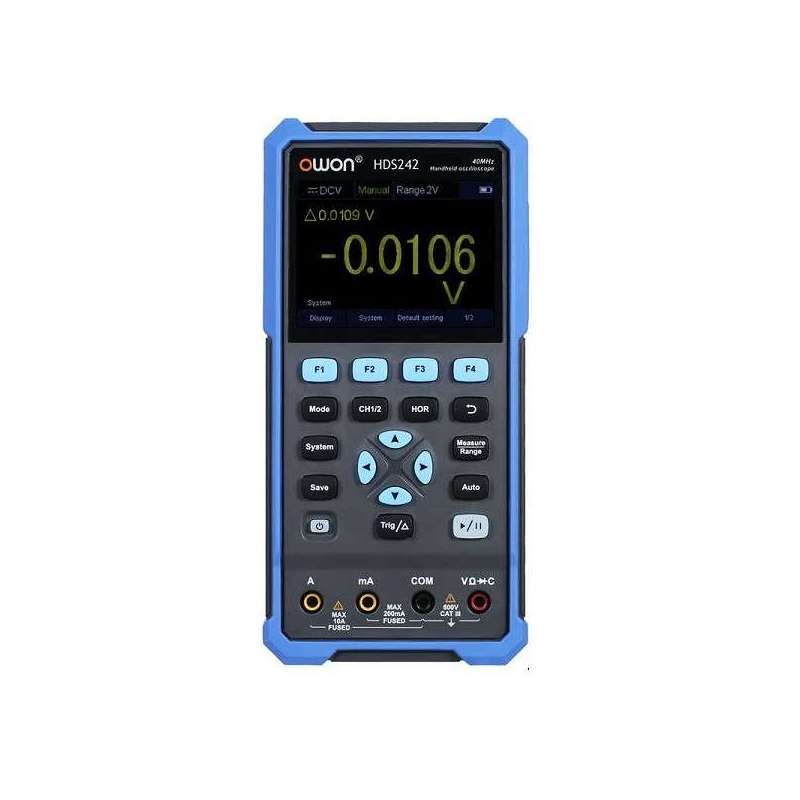

    HDS242 (Owon) 2x40MHz, 250MS/s ,Multimeter, 3.5-inch LCD, USB Type-C

    HDS242
    €172.80
    Tax included

    144.00 € tax excl.

    HDS242 (Owon) 2x40MHz, 250MS/s ,Multimeter, 3.5-inch LCD, USB Type-C

    Quantity :
    • Secure purchase
    • Fast delivery
    • Purchase help

    HDS242 (Owon) 2x40MHz, 250MS/s ,Multimeter, 3.5-inch LCD, USB Type-C

    「Oscilloscope」Specifications

    Model HDS242 HDS272 HDS2102 HDS242S HDS272S HDS2102S
    Bandwidth 40MHz 70MHz 100MHz 40MHz 70MHz 100MHz
    Channels 2-CH Oscilloscope 2-CH Oscilloscope+1-CH Generator
    Sample Rate 250MS/s 500MS/s 250MS/s 500MS/s
    Acquisition Model Normal, Peak detect
    Record Length 8K
    Display 3.5-inch LCD
    Waveform Refresh Rate 10,000 wfrms/s
    Input Coupling DC, AC, and Ground
    Input Impedance 1 MΩ±2%, in parallel with 16pF±10pF
    Probe Attenuation Factors 1X,10X,100X,1000X,10000X
    Max. input Voltage 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
    Bandwidth Limit (typical) 20MHz
    Horizontal Scale 5ns/div - 1000s/div, step by 1 - 2 - 5 2ns/div - 1000s/div, step by 1 - 2 - 5 5ns/div - 1000s/div, step by 1 - 2 - 5 2ns/div - 1000s/div, step by 1 - 2 - 5
    Vertical Sensitivity 10mV/div - 10V/div
    Vertical Resolution 8 bits
    Trigger Type Edge
    Trigger Modes Auto, Normal, single
    Automatic Measurement Period, Frequency, Mean, PK-PK, Max, Min
    Cursor Measurement ΔV, ΔT, ΔT&ΔV between cursors
    Communication Interface USB Type-C

    「Multimeter」Specifications (Standard)

    Max. Resolution 20,000 counts
    Testing Mode Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
    Input Impedance 10MΩ
    Max Input Voltage AC 750V, DC 1000V
    Max Input Current DC : 10A AC : 10A
    Diode 0 - 2V


    Support
    Balenie Obsahuje / Accessories
    1. Quick Guide
    2. USB Cable
    3. Probe Adjust
    4. Multimeter Lead
    5. Soft Bag
    6. 1x Oscilloscope Probe
    7. BNC to Alligator Clip
