• [Vysokorýchlostný prenos na veľké vzdialenosti] Technológia Wi-Fi HaLow, dosah viac ako 1 km, vysoká rýchlosť 32 Mbps
• [Silná priepustnosť a nízka spotreba energie] Pásmo pod 1 GHz, silná priepustnosť cez steny, konštrukcia s nízkou spotrebou energie
• [Flexibilné dvojpásmové sieťové pripojenie] Podporuje režim Wi-Fi HaLow + 2,4 GHz, podporuje sieťové pripojenie AP/STA/Mesh
• [Masívny prístup zariadení] Kapacita prístupu jednej brány je viac ako 4-násobná v porovnaní s tradičným Wi-Fi
• [Priemyselný dizajn pre široký teplotný rozsah] Rozsah prevádzkových teplôt od -20 °C do 70 °C, prispôsobiteľný náročným prostrediam
• [Pohodlná prevádzka a údržba] Inštalácia na stenu, konfigurácia cez webové rozhranie, vzdialená aktualizácia OTA

Čo je Wi-Fi HaLow?

Wi-Fi HaLow (založené na štandarde IEEE 802.11ah) je bezdrôtová komunikačná technológia s nízkou spotrebou energie a veľkým dosahom, ktorú vyvinula organizácia Wi-Fi Alliance špeciálne pre scenáre v oblasti internetu vecí (IoT). Na rozdiel od tradičnej Wi-Fi technológie pracuje v nelicencovanom frekvenčnom pásme pod 1 GHz (hlavne v pásme 900 MHz). Táto frekvencia jej poskytuje silnejšie difrakčné schopnosti a priepustnosť, čo jej umožňuje efektívne prenikať budovami, vegetáciou a inými prekážkami, čím prekonáva inherentné obmedzenia tradičného Wi-Fi z hľadiska pokrytia a priepustnosti prostredím. B Brána ThinkNode G4 Wi-Fi HaLowB je B bezdrôtové komunikačné zariadenie s veľkým dosahom a vysokou rýchlosťouB , navrhnuté pre B aplikácie IoT.B Na základe technológie IEEE 802.11ah (Wi-Fi HaLow) pracuje v nelicencovanom frekvenčnom pásme pod 1 GHz. Teoreticky môže dosiahnuť prenosovú vzdialenosť viac ako 1 kilometer a podporuje prenosové rýchlosti až 32 Mbps, čím dokonale vyplňuje technologické medzery medzi krátkym pokrytím tradičného Wi-Fi a nízkymi rýchlosťami LoRa. Brána je vybavená vysokovýkonným mikrokontrolérom (MCU) a pokročilým RF front-endom, podporuje dvojpásmový dizajn pre Wi-Fi HaLow aj 2,4 GHz Wi-Fi a poskytuje Ethernetové rozhranie pre flexibilnú integráciu do existujúcej sieťovej infraštruktúry. Konfiguráciu a OTA aktualizácie je možné vykonať prostredníctvom jednoduchého webového rozhrania. Podporuje rôzne sieťové metódy ako AP, STA a Mesh a jediná brána sa môže pripojiť k veľkému počtu zariadení, čo z nej robí ideálnu voľbu pre scenáre inteligentnej výroby, inteligentných miest a inteligentného poľnohospodárstva.

Hardware Overview

Feature

• Long-distance, high-speed transmission: Utilizing Wi-Fi HaLow technology, the theoretical line-of-sight distance can exceed 1 kilometer, maintaining a rate of 150 Kbps even at extreme distances, and reaching up to 32 Mbps at close range, balancing coverage and data throughput.
• Strong penetration and low power consumption: Operating in the Sub-1GHz band, it can effectively penetrate obstacles such as buildings and vegetation; its low-power design is suitable for long-term deployment in outdoor and industrial environments.
• Dual-band flexible networking: Supports dual-band design of Wi-Fi HaLow and 2.4GHz Wi-Fi, and is equipped with an Ethernet interface, supporting various networking methods such as AP, STA, and Mesh, flexibly adapting to the network architecture requirements of different scenarios.
• Massive device access: A single gateway can support a large number of terminal devices connecting simultaneously, with an access capacity more than 4 times that of traditional Wi-Fi access points, meeting the needs of large-scale IoT node deployment.
• Wide-temperature industrial-grade design: Operating temperature range of -20℃ to 70℃, adaptable to harsh outdoor and industrial environments, ensuring long-term stable operation of the device.
• Easy installation and maintenance: The lightweight and stylish wall-mounted design makes installation simple; it supports Web UI configuration and OTA remote upgrades, reducing on-site operation and maintenance costs.

Scenarios

• Remote camera monitoring
• WiFi-HaLow gateway
• Industrial automation control
• Asset management and tracking
• Smart home
• Smart city
• Wi-Fi/Ethernet/Wi-Fi-HaLow extension and bridging
• Rural internet access
• LAN construction
• Network blind spot coverage

Makers, embedded/IoT engineers, and people in fields such as smart agriculture, security monitoring, smart cities, industrial IoT, and photovoltaic and water conservancy.

Specification

Main Chip
CPU/SoC	HLK-7628N Module
System memory	DDR2128MB
Storage	32MB
WiFi HaLow Communication
Chip	FGH100M
WiFi Protocol	IEEE 802.11ah
WiFi Band	850~950 MHz
Wifi Modulation Method	OFDM/ BPSK/ QPSK/ 16QAM/ 64QAM
Encryption mode	AES, SHA-256, SHA-384, SHA-512, WPA3
Work mode	AP/ STA / Mesh
Physical layer maximum rate	802.11ah: 32.5 Mbps
Maximum output power	21dbm
Other Communication
WiFi	Supports 802.11 b/g/n protocols (2.4 GHz band), with a maximum speed of 300 Mbps. 802.11n: Maximum 150 Mbps (single stream), dual antennas combined to 300 Mbps. 802.11g: Maximum 54 Mbps. 802.11b: Maximum 11 Mbps.
Ethernet	Up to 100 Mbps per port, supports switch functionality.
Encryption Method	WEP64/128, TKIP, AES, WPA, WPA2, WAPI
Hardware
Interface	Type-C Interface, Ethernet Port, WiFi HaLow Antenna Interface, WiFi Antenna Interface
CFG Button	Enter configuration mode / Restart gateway / Restore factory settings
LED Indicator
Power Indicator Light	Red. Indicates normal power-on status
HaLow Indicator Light	Blue When data transmission is in progress, the blue light remains constantly on.
Link Indicator Light (configuration status)	Green 1. Device configuration status: flashing green for 0.5s intervals; 2. Successful device configuration: both LINK and Halow indicator lights remain constantly on for 3 seconds, then turn off simultaneously. 3. Failed device configuration: the LINK indicator light remains flashing green for 0.5s intervals.
Link Indicator Light (IP address acquisition status)	Green 1. After successful configuration, the IP address will be successfully obtained, and the LINK indicator light will be solid green. 2. If the IP address acquisition fails after successful configuration, the LINK indicator light will be off. Reconfiguration is required to reconnect to the network.
Other
Power supply voltage	Typical 5.0 V-1A
Installation Method	Wall-mounted screw holes (M2 screws)
Operating Temperature	-20~70℃
Storage Temperature	-20~70℃
Relative Humidity	10%~90%, non-condensing
Size	75*75*30mm (Exclude Antenna)
Net Weight	80g



As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

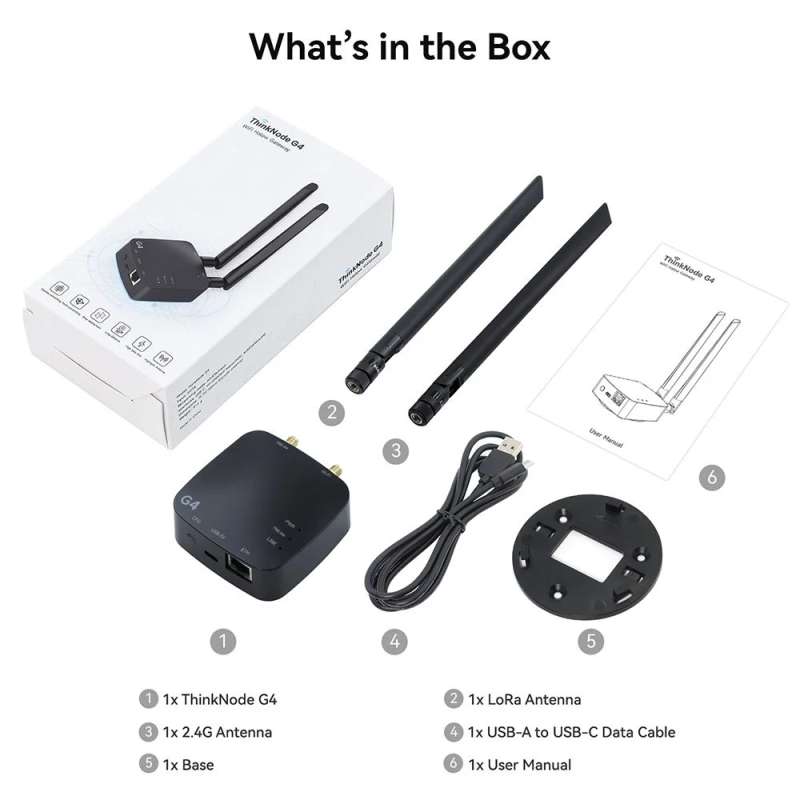

• 1x ThinkNode G4 Wi-Fi HaLow Gateway
• 1x Wi-Fi HaLow Antenna
• 1x 2.4GHz Antenna
• 1x USB-C Cable(1m)
• 1x Base

Wiki & External links

• Wiki
• User Manual
