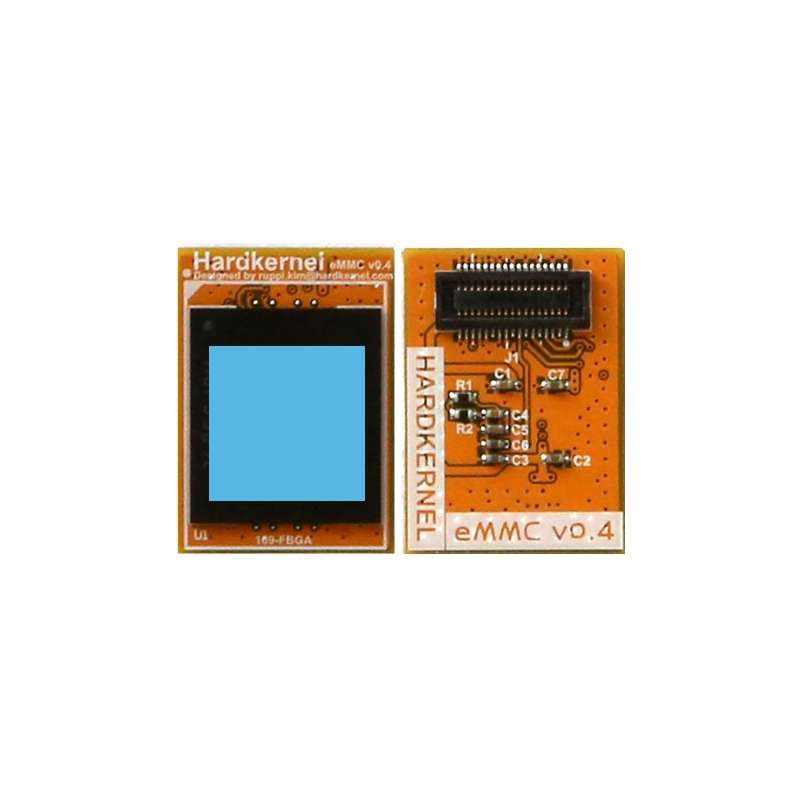

16GB eMMC Module C5 (G250512122501)

*16GB eMMC module uses both eMMC 5.1 chipset and the Phison eMMC chipset.

OS Preinstalled
Ready to run out of the box

eMMC storage performance
Sequential read and write speed is over 165MB/s and 125MB/s respectively.
4K random access performance is reasonably fast too. iozone test result are as follows.

*WiKi : https://wiki.odroid.com/accessory/emmc/emmc

*Schematics : http://dn.odroid.com/eMMCModule/

* You need eMMC Module Reader or USB3.0 eMMC Module Writer 2 to flash or update the OS of the eMMC Module.(sold separately)

Transcend USB multi-slot SD Card reader in the below picture is not included.
LIST OF eMMC reader (converter) VERIFIED MicroSD adapter.

** USB3.0 eMMC Module Writer 2 : Works with ODROID Orange, Red and Blue eMMC modules

(It is not compatible with the Black eMMC Modules)



GTIN : 8809543644182
