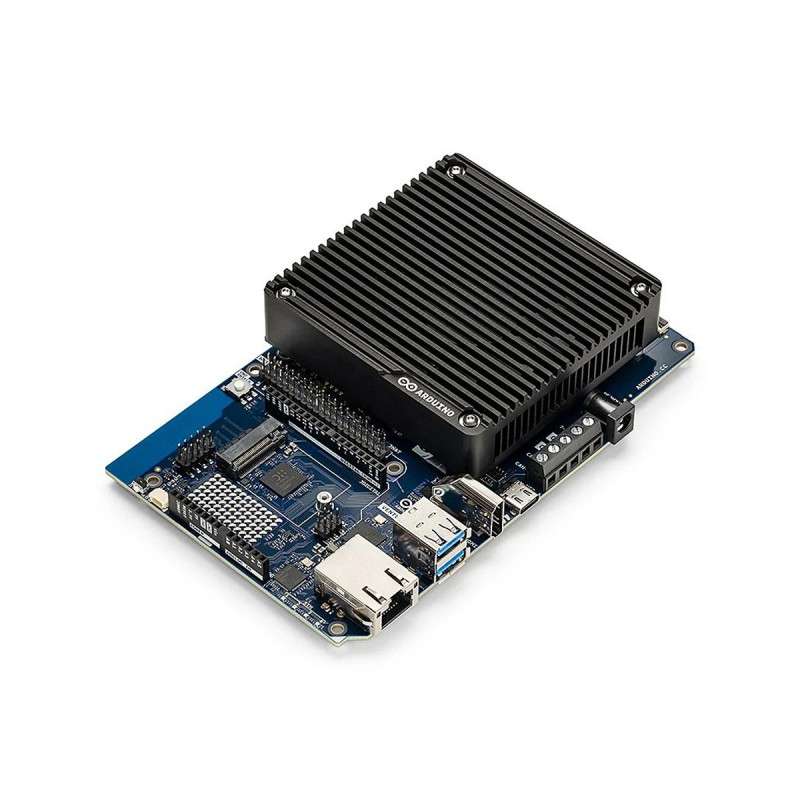

Arduino VENTUNO Q Edge AI Computer Qualcomm + STM32 Dual-Brain, 40Dense TOPS, Extensive Expansion for Industrial and Robotics
ABX00181
€306.27
249.00 € tax excl.
Arduino VENTUNO Q Edge AI Computer Qualcomm + STM32 Dual-Brain, 40Dense TOPS, Extensive Expansion for Industrial and Robotics
Arduino VENTUNO Q Edge AI Computer Qualcomm + STM32 Dual-Brain, 40Dense TOPS, Extensive Expansion for Industrial and Robotics
Arduino VENTUNO Q Edge AI Computer with Qualcomm + STM32 Dual-Brain Architecture, 40 Dense TOPS, Extensive Expansion for Industrial and Robotics Applications
Arduino VENTUNO Q Edge AI Computer
The Arduino VENTUNO Q combines a high-performance Qualcomm Dragonwing IQ8 MPU with an STM32H5F5 real-time MCU on a single board. The MPU runs Ubuntu Linux for local LLM and VLM inference, computer vision, networking, and multimedia. The MCU runs Arduino Core on Zephyr OS, handling GPIO, PWM, ADC, CAN-FD, and motion control. The two processors communicate through Arduino Bridge (RPC).
The board features 16GB LPDDR5 RAM, 64GB eMMC storage, and a Hexagon NPU delivering up to 40 dense TOPS. It also provides 2.5Gbit Ethernet, tri-band Wi-Fi 6, Bluetooth 5.3, an M.2 NVMe Gen 4 slot, HDMI, USB-C DisplayPort Alt Mode, three MIPI-CSI camera interfaces, and a range of expansion connectors.
Key Features
Dual-Brain MPU + MCU Architecture
The Qualcomm Dragonwing IQ8 runs Linux and handles AI, vision, networking, and multimedia. The STM32H5F5 MCU provides deterministic real-time I/O and control.
Up to 40 Dense TOPS for Edge AI
The Hexagon NPU supports on-device computer vision, speech processing, LLMs, VLMs, and multimodal applications. The onboard 16 GB LPDDR5 RAM and 64 GB eMMC provide memory and storage for the system, models, and application data.
Extensive Expansion for Robotics and Industrial Control
Provides tri-band Wi-Fi 6, Bluetooth 5.3, 2.5 Gbit RJ45, M.2 2230 NVMe, HDMI, three MIPI-CSI interfaces, CAN-FD, UNO Shield, 40PIN JHAT, Qwiic, and other interfaces.
Dual-Architecture Design
| AI Compute Core | Real-Time Control Core | |
|---|---|---|
| Processor | Qualcomm Dragonwing IQ8 (QCS8275) | STM32H5F5 |
| Key Resources | Octa-core Arm Cortex CPU; Adreno 623 GPU; Adreno VPU 623; Hexagon NPU; Qualcomm Spectra 692 ISP |
Arm Cortex-M33 up to 250 MHz; 4MB Flash; 1.5MB RAM |
| Software | Ubuntu Linux OS (Debian also supported) | Arduino Core on Zephyr OS |
| Primary Tasks | Local AI, computer vision, networking, multimedia processing, and Linux applications | Real-time control of GPIO, PWM, CAN-FD, ADC, sensors, and actuators |
| Coordination | The two processors exchange commands, status, and data through Arduino Bridge (RPC) | |
Specifications
| Product Model | Arduino VENTUNO Q |
|---|---|
| Main MPU | Qualcomm Dragonwing IQ8 (QCS8275); Octa-core Arm Cortex CPU; Adreno 623 GPU; Adreno VPU 623; Hexagon NPU; Qualcomm Spectra 692 ISP |
| AI Acceleration | Hexagon Tensor AI Processor, up to 40 dense TOPS |
| Real-time MCU | STM32H5F5, Arm Cortex-M33, up to 250 MHz; 4MB Flash; 1.5MB RAM |
| System | MPU: Ubuntu Linux preinstalled, with Debian also supported; MCU: Arduino Core on Zephyr OS |
| RAM / Storage | 16GB LPDDR5 (2 × 8GB) / 64GB eMMC |
| Storage Expansion | M.2 Key M 2230, PCIe Gen 4 ×4, NVMe support; For storage expansion only, with no NVMe boot support |
| Wireless Connectivity | Tri-band Wi-Fi 6 (2.4/5/6 GHz) with two onboard antennas; Bluetooth 5.3 with an onboard antenna |
| Wired Networking | 1 × 2.5 Gbit RJ45 Ethernet |
| USB | 1 × USB-C with host/device role switching, power role switching, and video output; 2 × USB 3.0 Type-A; 2 × USB 3.0 on JOMEGA header |
| Camera | 3 × MIPI CSI connectors muxed with 2 × MIPI CSI on JMEDIA header; USB camera support |
| Video | 1 × HDMI; USB-C DisplayPort Alt Mode; JMEDIA MIPI DSI (muxed with HDMI) |
| Audio | MAX98091 audio codec; JMISC: 1 × mono line out, 1 × mono speaker out, 1 × stereo headphone out, and 1 × microphone input; JOMEGA: 1 × microphone input |
| CAN-FD | 1 channel with PHY on screw terminal; 3 channels (no PHY) on JOMEGA header; 1 channel (no PHY) on UNO Shield headers |
| Onboard Controls and Indicators | 8 × 13 monochrome blue LED matrix; 4 × user-programmable RGB LEDs; Power indicator; USB-C PD fault indicator; User button; Reset button |
| Input Power | USB-C PD: 9~20 V, up to 3A; DC power jack: 7~24 V, up to 5A; Screw terminal: 7~24 V, up to 10A |
| Operating Temperature | -10°C to +60°C |
| PCBA Dimensions | 160 × 100 × 25.8 mm (Height excludes the heatsink and fan) |
Interface Overview
Triple MIPI-CSI camera support
Three 4-lane interfaces for 360° awareness, stereo depth perception, and multi-angle inspection.
Display outputs
MIPI-DSI for touchscreens and interactive panels, HDMI for monitors and projectors, USB-C DisplayPort Alt Mode for versatile video output.
Wireless & wired networking
Tri-band Wi-Fi 6 (2.4/5/6 GHz) and Bluetooth 5.3 for wireless connectivity, 2.5 Gb Ethernet for wired networking.
Universal USB connectivity
USB-C for high-speed vision and audio data transfer. Dual USB-A 3.0 ports for peripherals and storage.
Industrial I/O & control
CAN-FD for professional motor controllers and industrial networks. PWM and deterministic GPIO for sub-millisecond response.
* The UNO Shield interface uses 3.3V logic. Most digital pins are 5V tolerant, except A0 and A1 (not 5V tolerant). Please check voltage, pinout, and current requirements before installing an expansion board.
Product Show
Product Dimensions
Balenie Obsahuje / Package Content
Arduino VENTUNO Q
ABX00181
