      JOYSTICK BREAKOUT MODULE
      • JOYSTICK BREAKOUT MODULE

      JOYSTICK BREAKOUT MODULE

      IM120525009

      JOYSTICK BREAKOUT MODULE

      Quantity :
      • Secure purchase
      • Fast delivery
      • Purchase help

      JOYSTICK BREAKOUT MODULE

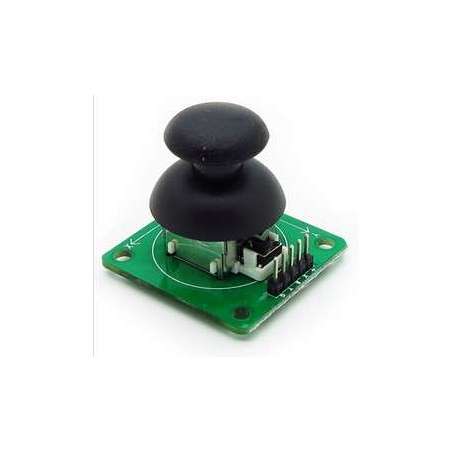

      The joystick on this module is very similar to the 'analog' joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is pressed down. There are 5 pins on board: VCC, GND, X, Y and Button. Connect the module with 5V power suppy with VCC and GND, you can read out the joystick status by X,Y and button pins.

      Specification

      Module Type Input
      Weight 20.00g
      Model IM120525009
      Board Size 3.8 x3.5 x 3.5cm
      Version 1
      Operation Level Analog
      Power Supply
      • External 24V
      • External 7V
      • External 9V
      • External 12V
      • External 3.3V
      • External 5V





      Documents

      Schematic

      ITEAD STUDIO
      IM120525009
