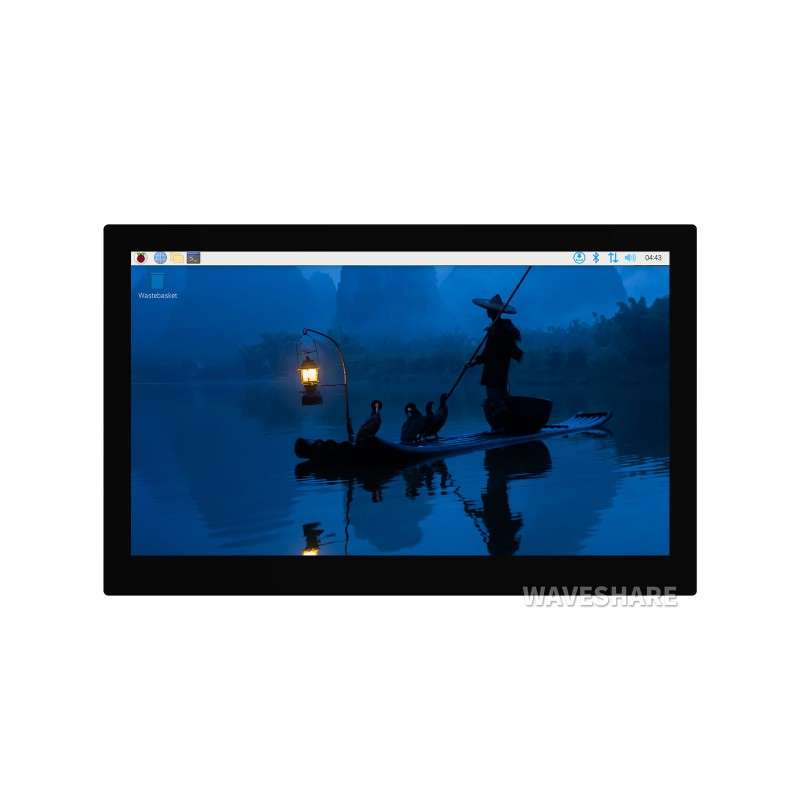

High Resolution | Multi-Point Touch | Full Color

• • Size13.3″
  • Resolution1920 × 1080
  • Display InterfaceHDMI / Type-C
  • Display PanelIPS
  • Viewing Angle178°

• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• Audio Output 13.5mm Jack
• Audio Output 2Speaker Header
• BrightnessDDC/CI Control
• EnclosureFull Metal Back Cover
• GamingXbox360 / SWITCH
• SmartphoneHuawei/Samsung/OPPO...

Working with Full-Featured Type-C PC

Working with Full-Featured Type-C Smartphone

Working with Raspberry Pi 5 / 4B

Working with Raspberry Pi 3B+

Working with Jetson series board

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example.

Step 1:
Connect the cables ①, ④, and ⑤ to the connectors on the back side of LCD display, shown in the picture above.



Step 2:
Install the Raspberry Pi 5 on the back cover via the screws included in the package.



Step 3:
Connect the HDMI adapter ② to the cable ① first (choose HDMI adapter ② or ③ according to your Raspberry Pi model), then insert it into the Raspberry Pi Micro HDMI port; Connect the cable ④ to the USB port of the Pi and connect the cable ⑤ to the GPIO 5V, 5V, GND pin header as shown above.



Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is not included.

Supports audio and video transmission, plug and play. One cable is just enough for either computer dual-screen OR Smartphone wired projection

One screen for work, one screen for study, without interfering with each other

* for reference only, please refer to the Package Content for detailed part list

IPS panel enhances the display and color performance of the monitor. 178° wide viewing angle, whether it is viewed vertically or horizontally, the display effect is still clear

A good partner for the game consoles, play video games with a wider and clearer vision. Supports Xbox360 / PS4 / SWITCH etc. (Display and Sound Only)

Support the following ways to customize the touch screen display in bulk order
