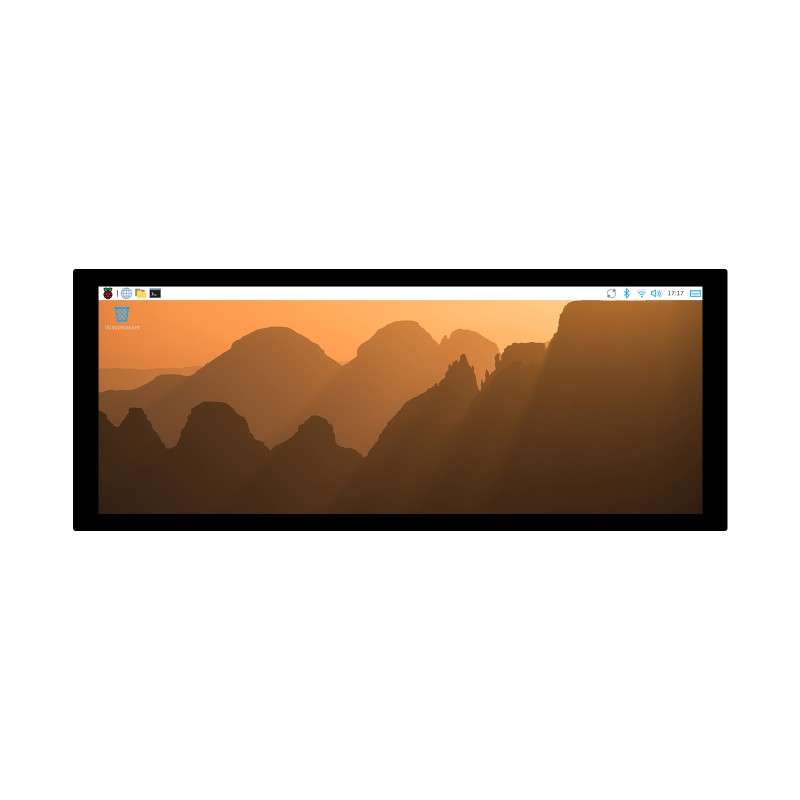

8.9inch IPS Capacitive Touch Display, 600x1600, Toughened Glass Panel, 10-point Touch, 170° Viewing Angle (WS-35978)

• Part No.:8.9inch 600x1600 LCD

8.9inch IPS capacitive touch display, 600 × 1600 resolution, toughened glass panel, 10-point touch, 170° viewing angle

8.9" Touch Display

High Resolution | Multi-Point Touch | Full Color

• • Size8.9"
  • Resolution600 × 1600
  • Display InterfaceHDMI
  • Display PanelIPS
  • Viewing Angle170°

• • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PortUSB Type-C
  • Touch PanelToughened Glass
  • OSD MenuBrightness

• Brightness500cd/m²
• Audio Output3.5mm Jack
• AudioSpeaker Header

The display orientation is portrait by default, with 600 × 1600 resolution (H × V).
Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Boards

Supports Ubuntu, single point touch, driver free
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

Core3576

Supports Linux, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working with Raspberry Pi 5

Working with Raspberry Pi 4

Working with Jetson Orin

You need to prepare additional DP-to-HDMI adapter or cable

Working with mini PC

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Interface Introduction

Outline Dimensions



Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display



* Waveshare has been focusing on display design for over 15 years.

Resources & Services

Wiki: docs.waveshare.com/8.9inch-600x1600-LCD

Balenie Obsahuje / Package Content

1. 8.9inch 600×1600 LCD x1
2. HDMI dual-plug flat cable ~1m ×1
3. USB Type-A male port to Type-C male port ~1
4. HDMI adapter ×1
5. HDMI to Micro HDMI adapter ×1
6. USB to Type-C adapter (B) ×1
7. USB to Type-C adapter (C) ×1
8. Capacitive pen x1
9. Cleaning cloth x1
10. Screws pack ×1
