Features

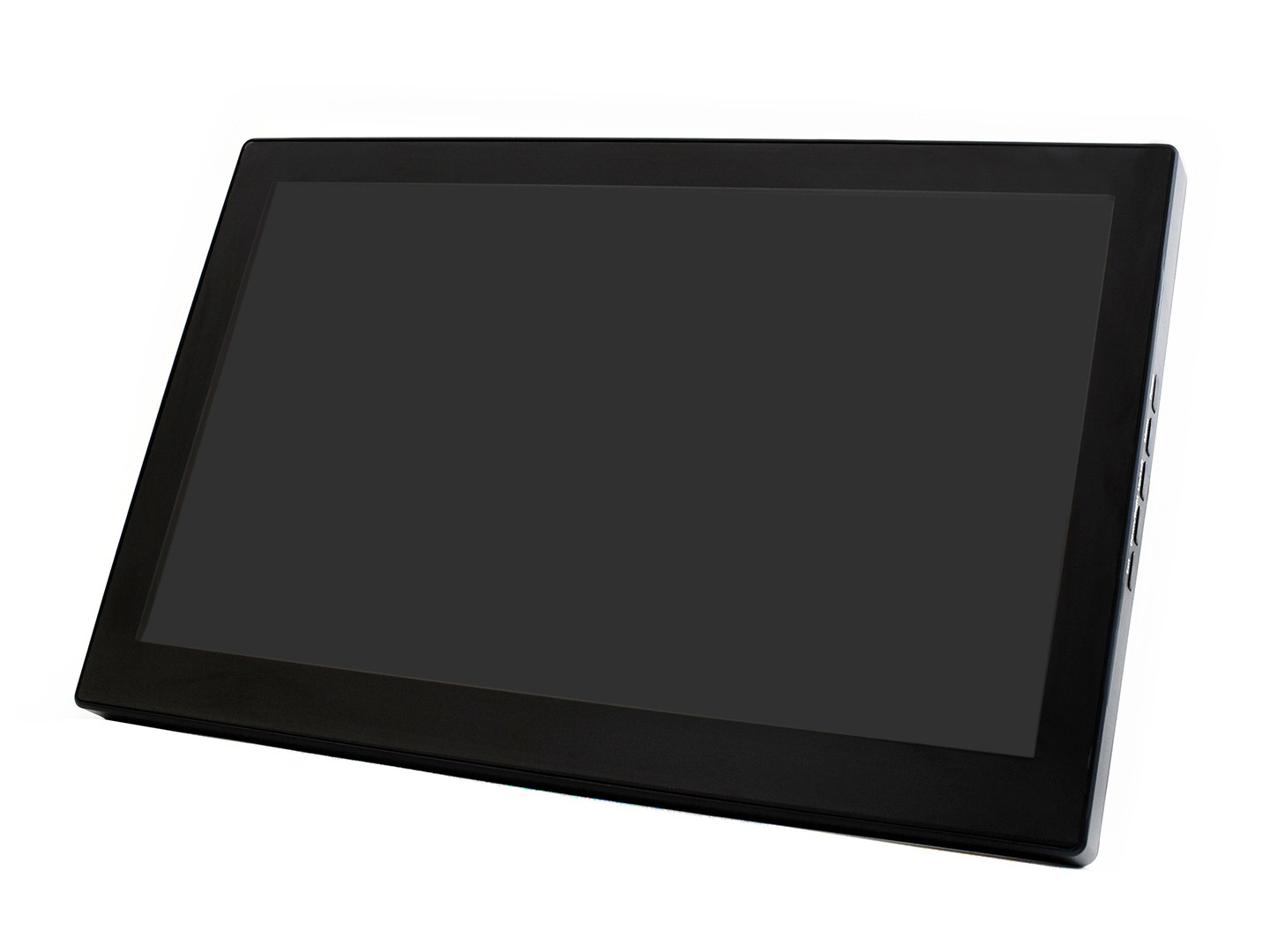

• 13.3inch IPS screen,1920x1080 hardware resolution
• Toughened glass capacitive touch panel, 6H hardness
• Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers
  • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
• Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• 3.5mm audio jack, supports HDMI audio output
• Embedded ferrite Hi-Fi speaker
• Also supports VGA input (specific cable is required and should be purchased separately)
• 100x100mm spacing mounting holes (M4 screw hole) for general wall mount
• Comes with 60° tilt angle stand

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/13.3inch_HDMI_LCD_(H)_(with_case)_V2

FAQ

Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?

It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Selection Guide

Note :

1. Pi 3B+ means Raspberry Pi 3 Model B+
2. If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
3. Toughened Glass Cover ※: the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H)uses a normal screen cover

Have a look :

1. 13.3inch HDMI LCD (H) (with case) V2 x1
2. Power adapter 12V x1
3. HDMI cable x1
4. USB type A plug to micro B plug cable x1
5. Quick start sheet x1
