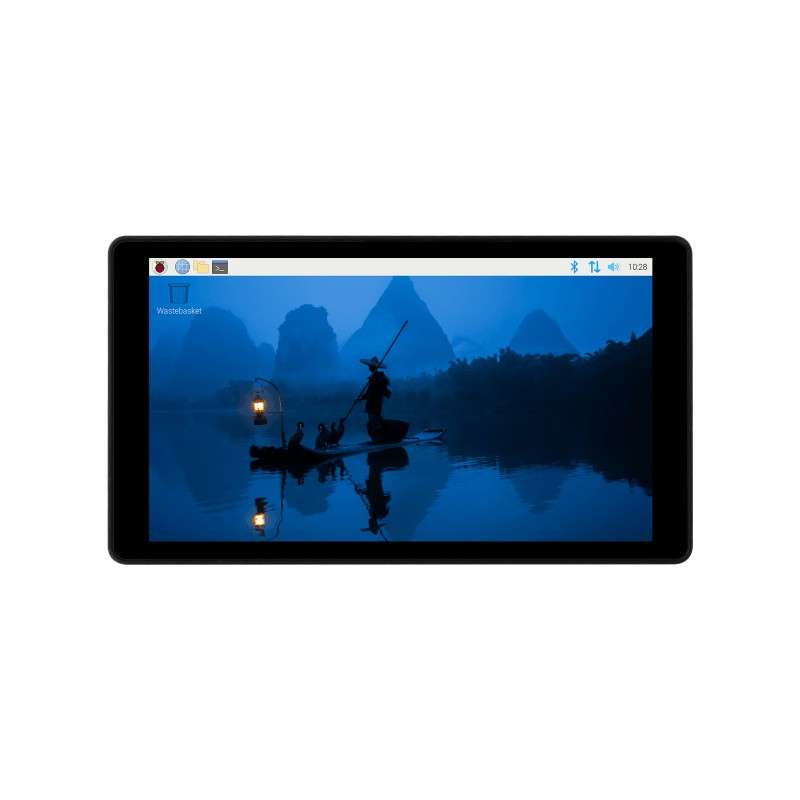

    5inch DSI Capacitive Touch Display, 720 × 1280, IPS, Optical Bonding Toughened Glass Panel, DSI Interface, 5-Point Touch, Aluminum Alloy Case

    5″ DSI Capacitive Touch Display
    5-DSI-TOUCH-A, front and back view

    The display orientation is portrait by default, with 720×1280 resolution (H×V). Change the software config for landscape display.


      • Size5-DSI-TOUCH-A, size5″
      • Resolution5-DSI-TOUCH-A resolution720×1280
      • Display Interface5-DSI-TOUCH-A display interfaceDSI
      • Display Panel5-DSI-TOUCH-A display panelIPS
      • Viewing Angle5-DSI-TOUCH-A viewing angle178°
      • Touch Type5-DSI-TOUCH-A Touch TypeCapacitive
      • Touch Points5-DSI-TOUCH-A Touch Points5-Point
      • Touch Panel5-DSI-TOUCH-A Touch panelToughened Glass
      • Touch Panel Tech5-DSI-TOUCH-A Touch panel techOptical Bonding
      • Touch Interface5-DSI-TOUCH-A touch interfaceI2C
      • Enclosure5-DSI-TOUCH-A enclosureAluminium Alloy

    Device & System Support

    5-DSI-TOUCH-A system support
    Raspberry Pi
    Supports Raspberry Pi OS, 5-point touch

    ESP32-P4
    Supports LVGL GUI programs, 5-point touch

    RK3506
    Supports Buildroot, Ubuntu, 5-point touch

    RK3576
    Supports Buildroot, Debian, Ubuntu, and Android, 5-point touch

    Connection Examples

    Working with Raspberry Pi 5

     5-DSI-TOUCH-A working with raspberry pi 5

    Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    Working with Raspberry Pi 4B

     5-DSI-TOUCH-A working with raspberry pi 4B

    Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    Working with ESP32-P4-NANO

     5-DSI-TOUCH-A working with esp32-p4-nano

    Working with Luckfox Lyra

     5-DSI-TOUCH-A working with luckfox lyra

    Working with Luckfox Omni3576

     5-DSI-TOUCH-A working with luckfox omni3576

    * for reference only, the above controller boards or hosts are NOT included


    IPS Display Panel

    Excellent Display Performance With 178° Wide Viewing Angle

    5-DSI-TOUCH-A IPS Display Panel
    5-Point Capacitive Touch
    5-DSI-TOUCH-A 5-point capacitive touch
    1. up to 5-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical bonding, provides clear image, dustproof

    Adjustable Brightness Via Software
    5-DSI-TOUCH-A adjustable brightness via software

    Thinner and space saving

    the total thickness of the LCD is only 7.8mm, lightweight and nice looking

    5-DSI-TOUCH-A Thinner and space saving
    Interface Introduction
    5-DSI-TOUCH-A interface introduction
    Dimensions
    5-DSI-TOUCH-A dimensions

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

    Resources & Services
    Wiki: www.waveshare.com/wiki/5-DSI-TOUCH-A

    Balenie Obsahuje / Package Content

    1. 5-DSI-TOUCH-A × 1
    2. MIPI-DSI-Cable-12cm × 1
    3. MX1.25 2PIN to 2.54 3P cable × 1
    4. FFC cable 22PIN 200mm × 1
    5. FFC cable 22PIN 100mm × 1
    6. MX1.25 2PIN to MX1.25 4PIN cable × 1
    7. Screws pack × 1
