Waveshare MK10 Multi-Functional AI Voice Control Panel, 10× 0.85inch LCD Keys, Secondary Screen (WS-32329)
WS-32329
€104.43
84.90 € tax excl.
Waveshare MK10 Multi-Functional AI Voice Control Panel, 10× 0.85inch LCD Keys, Secondary Screen (WS-32329)
Waveshare MK10 Multi-Functional AI Voice Control Panel, 10× 0.85inch LCD Keys, Secondary Screen (WS-32329)
Waveshare MK10 Multi-Functional AI Voice Control Panel, Onboard 10 × 0.85inch Mechanical LCD Macro Keys And A 2.01inch secondary screen, Supports Linux + QMK Dual-system Architecture
Waveshare MK10
Multi-Functional AI Voice Control Panel
Multi-Functional AI Voice Control Panel
Color Options
MK10 W
White color
MK10 B
Black color
Multi-screen display, high flexibility
10 × 0.85inch 128 × 128 resolution mechanical LCD Keys with a 2.01inch 240 × 296 resolution secondary screen, enabling highly flexible configuration
Supports 10-screen splicing display
The background supports images / videos and allows multi-layer overlay
Mechanical switches for Better
Tactile Experience
Tactile Experience
| Actuation Force | 50±10gf | Bottom-out Force | 55±10gf |
|---|---|---|---|
| Actuation Travel | 1.2±0.30mm | Total Travel | 2.8±0.25mm |
| Spring Length | 15.5mm | Lifespan | 50 million times |
* for reference only, please refer to the package content for the detailed part list.
Linux + QMK dual-system architecture
- Main Controller: T113-S3 (Dual-core A7, 1.2GHz), running Linux for complex logic processing
- Sub-Controller: GD32 MCU, running QMK to deliver a zero-latency true mechanical input experience
- Function: Single key / key combinations / macro operations, mouse control, and multi-command chaining — all natively implemented in QMK without PC software
Compatible with multiple platforms
Supports Windows / MacOS systems.
Built-in theme editor: drag-and-drop editing, no coding required
Real-time dynamic preview
Supports import / export functionality,
allowing you to share your configurations and themes
Two placement methods
Using 40° Detachable Stand
Triangular support design for comfortable long-term use
5.5° Desktop Flat Placement
Two placement options for flexible choice
Rich Resources, Supports Online Expansion
Provides an online platform for downloading themes and plugins, with continuous updates
Supports Real-Time Data Integration in Themes
Supports real-time data calls from LibreHardwareMonitor and OpenWeather
LibreHardwareMonitor: Real-time display of CPU temperature, fan speed, and other hardware information
OpenWeather: Integrates weather data for dynamic background display
Supports Speech recognition and
AI Speech Interaction
AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc
Supports Wireless Smart Home Control (HA)
Integrates with Home Assistant (HA) for one-touch smart home control
Application Scenarios
Live Streaming
Office Assistant
Image Editing
Gaming Controls
Balanced Technology and Premium Feel
Aluminum Alloy Top Case: Sturdy and durable, with a high-quality finish
2.5D High-Transparency Acrylic Lens: Hardened and anti-scratch treatment (> 3H hardness)
Outline dimensions

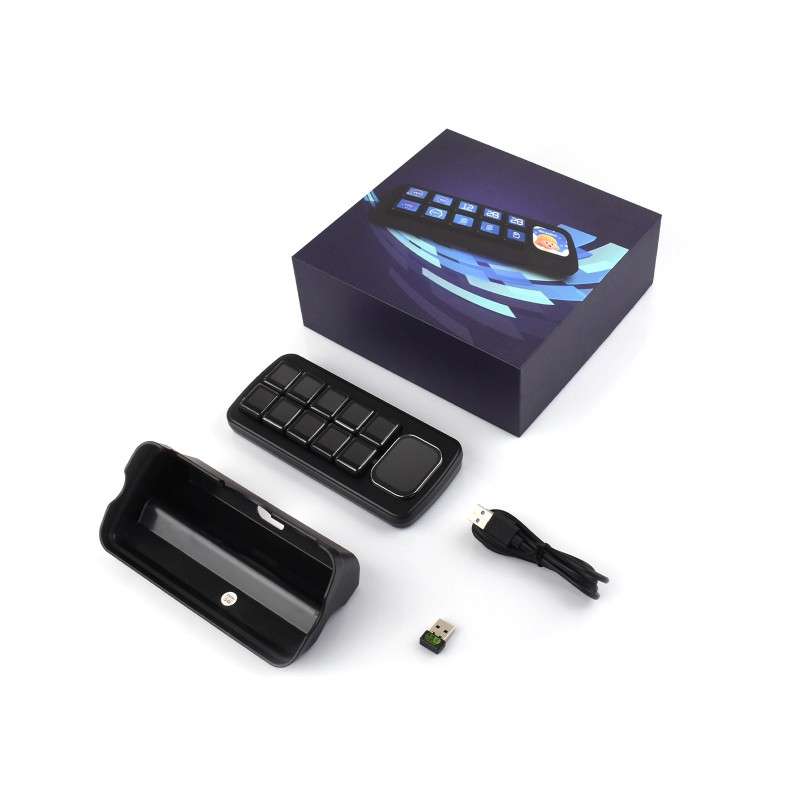

Balenie Obsahuje / Package Content
MK10-W
MK10-W (White) x1
WS-32329
