      10.1inch DSI Capacitive Touch Screen, 800×1280 IPS, With Arduino UNO Q (4GB), Supports Board-to-Board Connection (WS-36035)

      • Part No.:UNO-Q-DSI-TOUCH-10.1A-04032 (EU)
      • DSI display + UNO Q (4GB)

      10.1inch DSI capacitive touch screen, 800 × 1280 resolution, IPS panel, compatible with Arduino UNO Q, supports Board-to-Board connection

      10.1inch DSI touch screen

      Compatible with Arduino UNO Q, supports Board-to-Board Connection

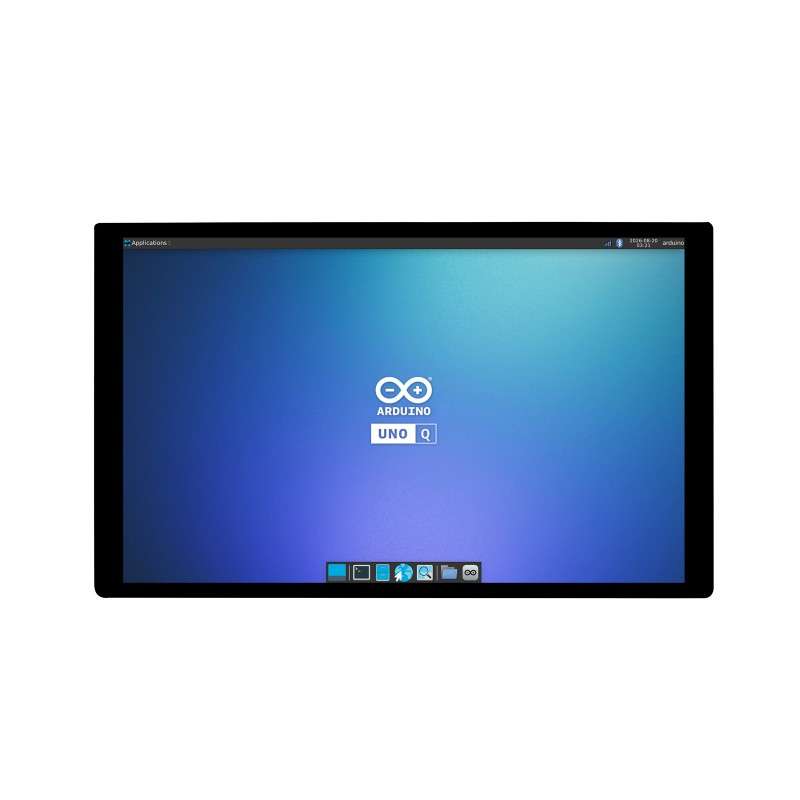

      UNO-Q-DSI-TOUCH-10.1A Front view
      • SizeDimension.png10.1″
      • ResolutionResolution.png800 × 1280
      • Display PanelIPS.pngIPS
      • Viewing AngleViewing_angle.png178°
      • BrightnessSun.png300cd/m²
      • Touch TypeCapacitive_touch.pngCapacitive
      • Touch interfaceI2C.pngI2C
      • Touch PointsMulti_Touch.pngMulti-Touch
      • Touch PanelTempered_panel.pngToughened Glass
      • Touch Panel TechFull-Fit.pngOptical Bonding
      • Compatible BoardCompatible_Board_UNO_Q.pngArduino UNO Q
      • ConnectionBoard_To_Board.pngBoard-to-Board
      • CameraCamera.pngDual Camera Interfaces
      • Audio3.5mm-Audio.pngDual 3.5mm Audio Jacks
      • SoundSpeaker.pngDual Speakers

      The display orientation is portrait by default, 800 × 1280 resolution (H×V).
      Change the software config for landscape display.

      Version Options
      Arduino UNO Q 02016

      UNO-Q-DSI-TOUCH-10.1A

      Only DSI display
      without UNO Q board

      Arduino UNO Q 02016

      UNO-Q-DSI-TOUCH-10.1A-02016

      DSI display + UNO Q (2GB)
      with 2GB RAM + 16GB eMMC

      Arduino UNO Q 02016

      UNO-Q-DSI-TOUCH-10.1A-04032

      DSI display + UNO Q (4GB)
      with 4GB RAM + 32GB eMMC

      Supports board-to-board connection
      without additional wiring

      Features the standard UNO form factor, supporting direct stacking onto the UNO Q board via the JMEDIA and JMISC connectors for compact integration

      UNO-Q-DSI-TOUCH-10.1A IPS Display Panel
      Connection Examples
      UNO-Q-DSI-TOUCH-10.1A Connection Examples

      * for reference only, please refer to the package content for the detailed part list.

      IPS Display Panel

      Excellent Display Performance, 178° wide viewing angle

      UNO-Q-DSI-TOUCH-10.1A IPS Display Panel
      Capacitive Multi-Touch
      UNO-Q-DSI-TOUCH-10.1A 10-Point Capacitive Touch
      1. Supports multi-touch, depending on the operating system
      2. Up to 6H hardness toughened glass panel
      3. Optical bonding, display well and dust-resistant
      Dual camera interfaces

      Equipped with dual 22PIN CSI camera interfaces, compatible with IMX219 camera modules, supporting vision applications such as stereo vision, multi-angle capture, and object tracking

      UNO-Q-DSI-TOUCH-10.1A Dual camera interfaces

      * for reference only, please refer to the package content for the detailed part list.

      Cameras Pin Definition
      UNO-Q-DSI-TOUCH-10.1A Cameras Pin Definition
      Interface Introduction
      UNO-Q-DSI-TOUCH-10.1A Interface Introduction
      Outline Dimensions
      UNO-Q-DSI-TOUCH-10.1A Outline Dimensions
      Resources & Services
      UNO-Q-DSI-TOUCH-10.1A wiki
      Wiki: docs.waveshare.com/UNO-Q-DSI-TOUCH-10.1A

      Balenie Obsahuje / Package Content

      UNO-Q-DSI-TOUCH-10.1A-04032

      1. UNO-Q-DSI-TOUCH-10.1A x1
      2. Arduino UNO Q 04032 x1
      3. USB Type-A male port to Type-C male port cable ~1m x1
      4. PSU-5V3A-USB-C x1
