IMX335 5MP USB Camera (C), 2K Video Recording, Sensitivity In Low-Light, Wide Dynamic Range, Distortion-Free (WS-31824)
WS-31824
€46.62
37.90 € tax excl.
IMX335 5MP USB Camera (C), 2K Video Recording, Sensitivity In Low-Light, Wide Dynamic Range, Distortion-Free (WS-31824)
IMX335 5MP USB Camera (C), 2K Video Recording, Sensitivity In Low-Light, Wide Dynamic Range, Distortion-Free (WS-31824)
IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free

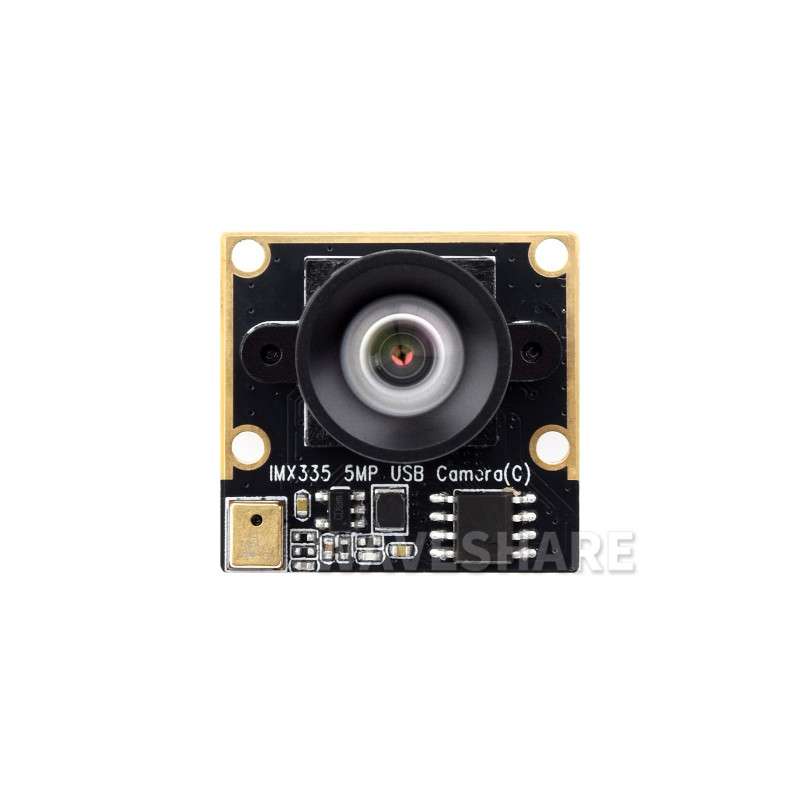

5MP USB camera module
IMX335 sensor, USB2.0 port, 91.7° distortion-free lens
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | IMX335 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 3.25mm | |
| Field of view (FOV) | 91.7° | |
| Distortion | <-1.22% | |
| Focusing | Fixed-focus | |
| Mount | M12 | |
| CONSTRUCTION | 3G2P + IR Filter (650nm) | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| Audio | onboard 1 × microphone | |
| Operating voltage | 5V ± 5% | |
| operating temperature | -10°C~60°C | |
| Module size | 25.00 × 24.30 (mm) | |
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included
5MP High resolution
Supports 30 FPS output, suitable for capturing details
Better Low-light sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Outline dimensions
Balenie Obsahuje / Package Content
IMX335 5MP USB Camera (C) x1
WS-31824
