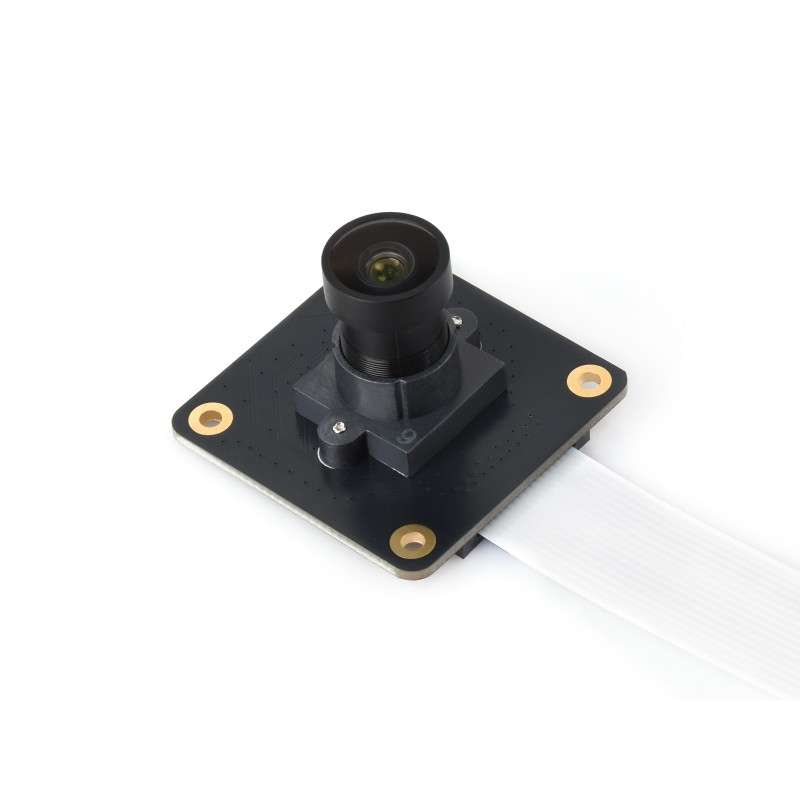

IMX296 1.6MP M12 Mono Camera, Global Shutter, Supports Raspberry Pi Series Boards (WS-32427)
WS-32427
€72.57
59.00 € tax excl.
IMX296 1.6MP M12 Mono Camera, Global Shutter, Supports Raspberry Pi Series Boards (WS-32427)
IMX296 1.6MP M12 Mono Camera, Global Shutter, Supports Raspberry Pi Series Boards (WS-32427)
IMX296 1.6MP M12 Mono Camera, Global Shutter, Supports Raspberry Pi Series Boards
IMX296 global shutter camera module
IMX296 Sensor | 1.6MP | Mono camera | Supports raspberry pi series boards
Features at a glance
This IMX296 mono global shutter camera module is based on the IMX296 sensor with 1.6MP resolution. It is capable of capturing fast moving objects without Jelly-Effect of rolling shutter, ideal for fast motion photography and machine vision applications. Adopts M12 lens offering 130° FOV, comes with dual FFC cables, compatible with all Raspberry Pi series boards.
Specifications
| Sensor | Model | IMX296 |
|---|---|---|
| Resolution | 1.58 MP (mono), 1456 × 1088 | |
| CMOS diagonal size | 6.3mm | |
| Pixel size | 3.45µm × 3.45µm | |
| Lens | Aperture (F) | 1.6 |
| Back Focal Length (BFL) | 3.0mm | |
| Field of View (FOV) | 130° (D) 99° (H) 72° (V) | |
| Distortion | <20% |
Global shutter, more clear imaging
the global shutter eliminates jelly-effect while shooting fast moving objects,
more suitable for high-speed motion capturing
Working with Raspberry Pi
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with Raspberry Pi Zero 2 W
* for reference only, the Raspberry Pi 4B, Raspberry Pi 5, Zero 2 W are NOT included.
Outline Dimensions
Balenie Obsahuje / Package Content
- IMX296-130 BW Camera x1
- 22PIN to 15PIN cable x1
- 15PIN cable x1
