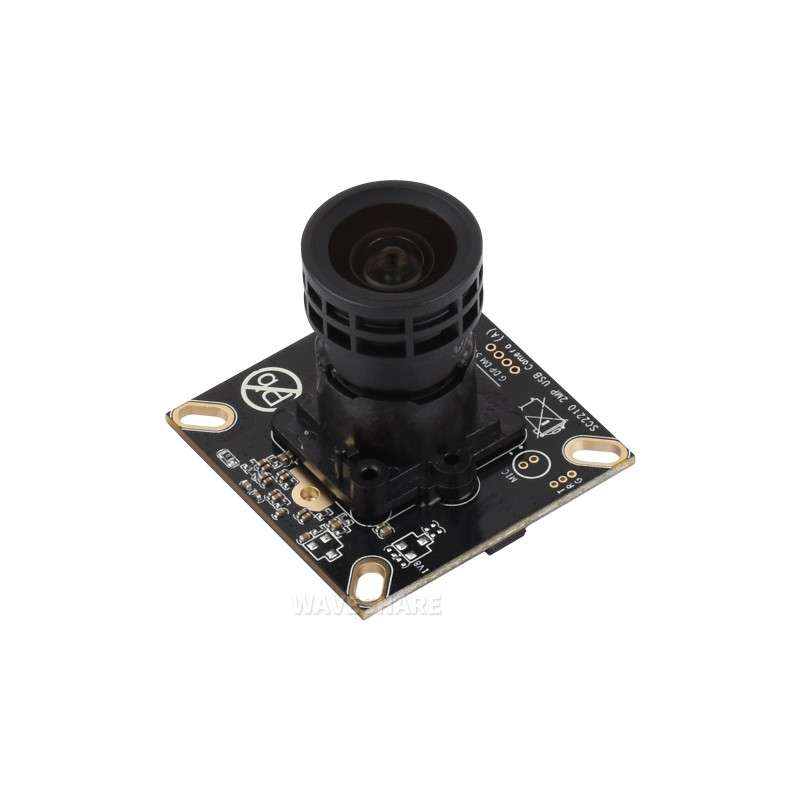

SC2210 2MP M12 USB Camera Module, SC2210 Sensor Chip, USB2.0 Port, Starlight Camera, Easy To Use (WS-32810)
WS-32810
€66.42
54.00 € tax excl.
SC2210 2MP M12 USB Camera Module, SC2210 Sensor Chip, USB2.0 Port, Starlight Camera, Easy To Use (WS-32810)
SC2210 2MP M12 USB Camera Module, SC2210 Sensor Chip, USB2.0 Port, Starlight Camera, Easy To Use (WS-32810)
SC2210 2MP M12 USB Camera Module, SC2210 Sensor Chip, USB2.0 Port, Starlight Camera, Easy To Use
2MP M12 USB camera module
SC2210 sensor | USB2.0 port | Starlight Camera
Specifications
| Pixels | 2MP | |
|---|---|---|
| sensor chip | SC2210 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/1.8inch |
| Aperture (F) | 1.0 | |
| Focal length (EFL) | 5.1mm | |
| Field of View (FOV) | 110.8° (D) 93.1° (H) 49.6° (V) | |
| Focusing | Fixed-focus | |
| Distortion | <-12.7% | |
| IR Filter | 650nm filter | |
| Shutter | Rolling shutter | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 1920 × 1080 | |
| Video recording | MJPG: 30FPS 1920×1080 30FPS 1280×720 30FPS 640×480 |
|
| YUY2: 15FPS 1280×720 20FPS 1024×576 20FPS 640×480 25FPS 640×360 25FPS 480×272 25FPS 320×240 |
||
| communication interface | MX1.25-4P USB | |
| Operating Voltage | 5V ± 5% | |
| Operating current | 180mA | |
| Dimensions | 38.00 × 38.00 × 32.20 (mm) | |
starlight-level camera with Large aperture lens
Provides a better imaging effect in low light condition, maintaining clear visuals without dark or blurry shots
* The images above are simulated for reference only, please refer to the actual shooting effect.
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
Balenie Obsahuje / Package Content
- SC2210 2MP USB Camera (A) x1
- USB Type-A to MX1.25 4PIN cable ~1.5m x1
