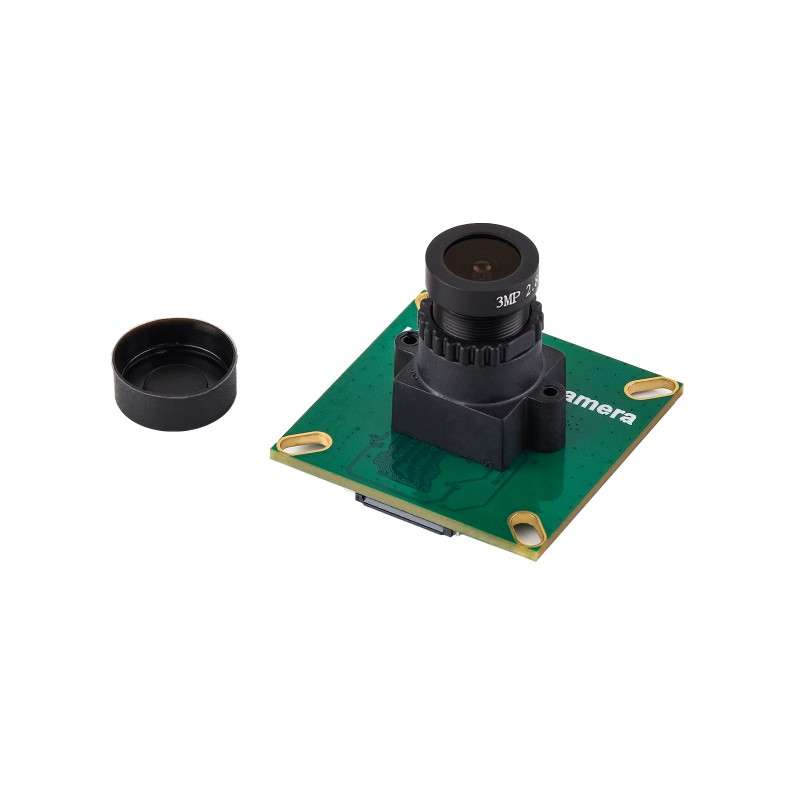

ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Raspberry Pi /Jetson (WS-35301)

ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards, Supporting AI Recognition

ISX031 3MP MIPI Camera Module



Specifications

Sensor	ISX031	CMOS Size	1/2.42 inch
Camera Type	Color	Effective Pixels	Approx. 3MP (1920 × 1536)
Diagonal Size	7.38 mm	Pixel Size	3.0 µm × 3.0 µm
Aperture	F2.0	Focal Length	2.8mm
Shutter Type	Rolling Shutter	IR Filter	Built-in
Field of View (D × H × V)	123° × 98° × 75°	Focusing	Fixed Focus
Applications	Suitable for AI applications like facial recognition, road mark recognition, license plate number recognition, and so on.

3MP Image output

The ISX031 sensor supports a 1920 × 1536 resolution and 3MP image output, preserving rich image detail for applications such as object detection, environment perception, video capture, and image analysis

Built-in ISP

The ISX031 integrates an ISP for sensor-side image processing and direct YUV output, helping reduce the processing load on the host and simplifying system development and integration

Application scenarios

Mobile Robots and Unmanned Equipment



Autonomous Driving and Driver Assistance



Industrial Vision and Equipment Inspection



Road, Vehicle, and Environmental Monitoring



AI Object Detection and Recognition



Embedded Video Capture



Intelligent Security Systems



Edge Computing Equipment

Compatible with Raspberry Pi Series Boards

Connecting with Raspberry Pi 4



Connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi 4B, Raspberry Pi 5 and yellow FPC cable are NOT included, please check the Package Content for the detailed part list.

Compatible with Mainstream Jetson Boards

Supports Jetson Orin Nano, Orin NX, Xavier NX, and other Jetson boards

* for reference only, the Jetson Xavier NX Kit and yellow FPC are NOT included, please check the Package Content for the detailed part list.

Outline Dimensions

Resources & Services

Wiki: docs.waveshare.com/ISX031-3MP-Camera

Balenie Obsahuje / Package Content

1. ISX031 3MP Camera × 1
2. FFC 22PIN cable (opposite-side) ~200mm × 1
