GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone (WS-31328)
WS-31328
€28.17
22.90 € tax excl.
GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone (WS-31328)
GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone (WS-31328)

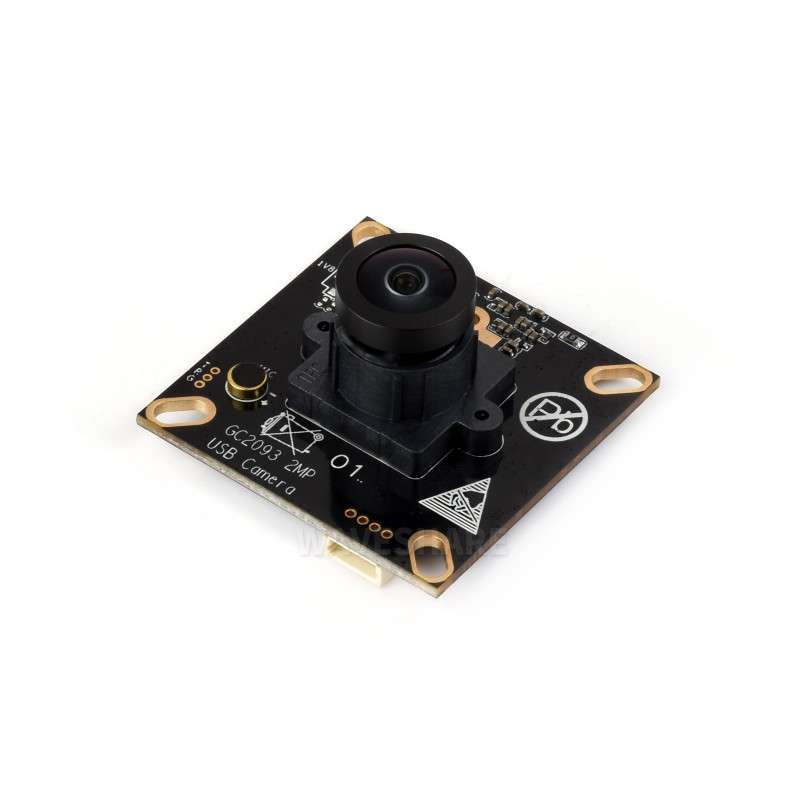

GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone
2MP USB M12 camera module
Adopts GC2093 sensor chip, onboard USB 2.0 interface,
WDR (Wide Dynamic Range) support for better backlight imaging
Specifications
| Pixels | 2MP | |
|---|---|---|
| sensor chip | GC2093 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.9 inch |
| Aperture (F) | 2.2 | |
| Effective Focal length (EFL) | 2.28 mm | |
| Field of View (FOV) | 170.2°(D) 144°(H) 77.6°(V) | |
| Focusing | Fixed-focus | |
| Distortion | <-27° | |
| Dynamic Range | 81dB Linear mode, 105dB HDR mode | |
| IR Filter | 650nm filter | |
| Image | Format support | MJPG、YUY2 |
| Static photographic resolution | 1920 × 1080 | |
| Video recording | MJPG: 30FPS 640×360 30FPS 640×480 30FPS 1024×576 30FPS 1280×720 30FPS 1920×1080 |
|
| YUY2: 25FPS 640×360 25FPS 640×480 20FPS 1024×576 15FPS 1280×720 |
||
| Audio | Onboard microphone | |
| Operating Voltage | 5V ± 5% | |
| Operating current | 180mA | |
| Dimensions | 38.00 × 38.00 × 19.01 (mm) | |
Excellent WDR with Backlight Adaptation
Featuring a high dynamic range of 81dB in Linear mode and up to 105dB in HDR mode, combined with the characteristics of GC2093, it performs impressively in backlit environments. Whether under direct sunlight or in scenes with strong contrast between light and shadow, it effectively balances image brightness and preserves detail in both highlights and shadows.
* the above picture is the WDR effect simulation, please refer to the actual imaging effect
Plug and Play, Easy Connection
Onboard USB 2.0 interface, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
Outline dimensions
Balenie Obsahuje / Package Content
- GC2093 2MP USB Camera (A) × 1
- USB-A to 5PIN cable × 1
WS-31328
