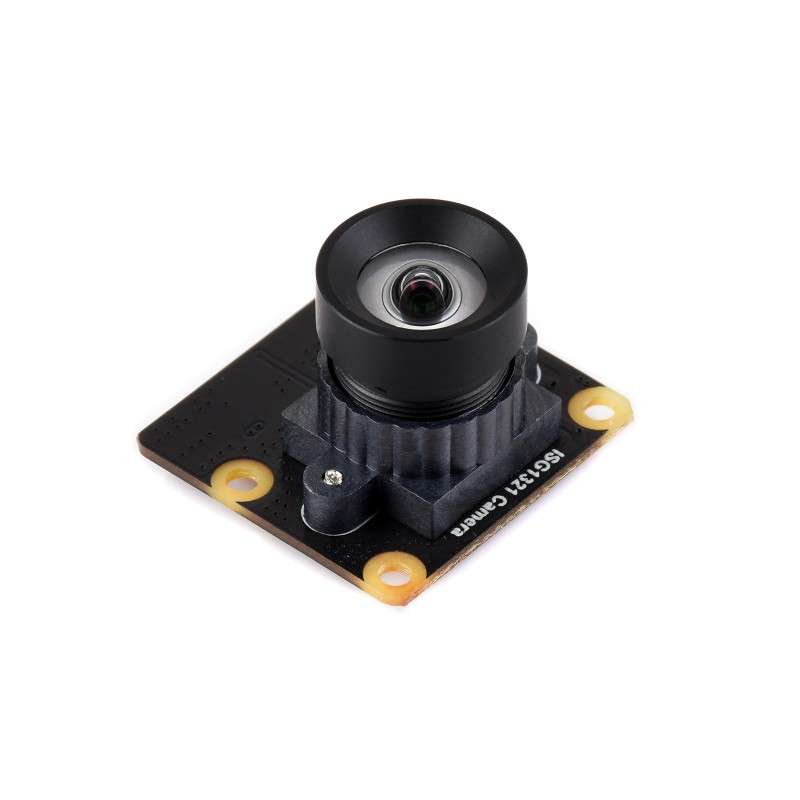

ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, 1280×1080@120fps (WS-32175)
WS-32175
€28.17
22.90 € tax excl.
ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, 1280×1080@120fps (WS-32175)
ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, 1280×1080@120fps (WS-32175)
ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, Supports 1280 × 1080@120fps Output
ISG1321 1.38MP mono
global shutter camera module
global shutter camera module
equipped with a 95.5° FOV wide angle distortion-free lens
Specifications
| Sensor | ISG1321 | CMOS size | 1/4 inch |
|---|---|---|---|
| Camera type | mono | Pixels | 1.38MP (1280 x 1080) |
| Shutter | Global Shutter | Output | 120 FPS (MAX) |
| Interface | MIPI-CSI (2-lane) | Aperture | F2.4 |
| Distortion | < 1% | FOV | 95.5° |
| Focal length | 2.88mm | Focusing | Manual focus |
| Applications | Machine Vision, Logistics Barcode Reading, and Industrial Inspection | ||
Wide field of view
Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle
Global Shutter
All pixels are exposed simultaneously, capturing images without distortion
High Frame Rate
Supports up to 1280×1080@120fps, enabling precise capture of fast-moving objects
outline dimensions
Balenie Obsahuje / Package Content
- ISG1321 Camera x1
- 22PIN FFC cable ~200mm x1
