IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition (WS-32641)
WS-32641
€72.57
59.00 € tax excl.
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition (WS-32641)
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition (WS-32641)
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition, Easy To Use

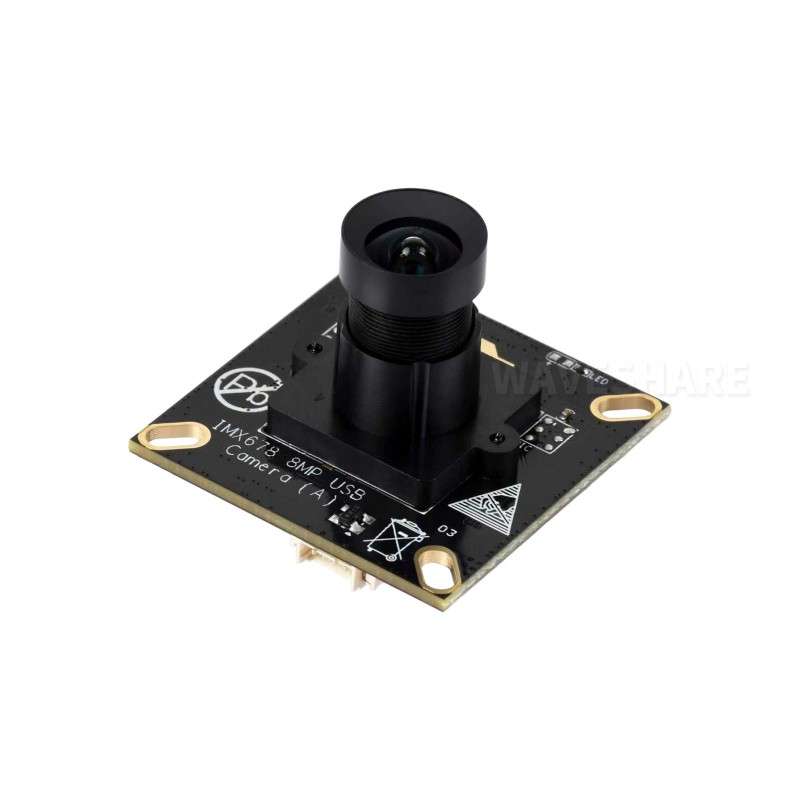

8MP M12 USB camera module
IMX678 sensor | USB2.0 port | excellent low-light performance
Specifications
| Pixels | 8MP | |
|---|---|---|
| sensor chip | IMX678 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/1.8inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 4.2mm | |
| Field of View (FOV) | 93° (D) / 86° (H) / 55° (V) | |
| Focusing | Fixed-focus | |
| Distortion | <-1.2% | |
| IR Filter | 650nm filter | |
| Shutter | Rolling shutter | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 3840 × 2160 | |
| Video recording | MJPG: 30FPS 3840 × 2160 30FPS 2880 × 2160 30FPS 2048 × 1536 30FPS 1920 × 1080 30FPS 1600 × 1200 30FPS 1280 × 960 30FPS 1280 × 720 30FPS 800 × 600 30FPS 640 × 480 |
|
| YUY2: 1.5FPS 3840 × 2160 1.5FPS 2880 × 2160 3.75FPS 2048 × 1536 3.75FPS 1920 × 1080 5FPS 1600 × 1200 7.5FPS 1280 × 960 10FPS 1280 × 720 10FPS 1024 × 768 20FPS 800 × 600 20FPS 640 × 480 |
||
| Operating Voltage | 5V ± 5% | |
| Operating current | 250mA | |
| Dimensions | 38.00 × 38.00 × 24.93 (mm) | |
8MP High resolution
IMX678 8MP resolution, captures clear images at both near and far distances
Better Low-light sensitivity
Provides a better imaging effect in low light condition, maintaining clear visuals without dark or blurry shots
* The images above are simulated for reference only, please refer to the actual shooting effect.
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
Balenie Obsahuje / Package Content
- IMX678 8MP USB Camera (A) x1
- USB Type-A to MX1.25 4PIN cable ~1.5m x1
WS-32641
Specific References
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition (WS-32641)
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition (WS-32641)
€72.57
59.00 € tax excl.
