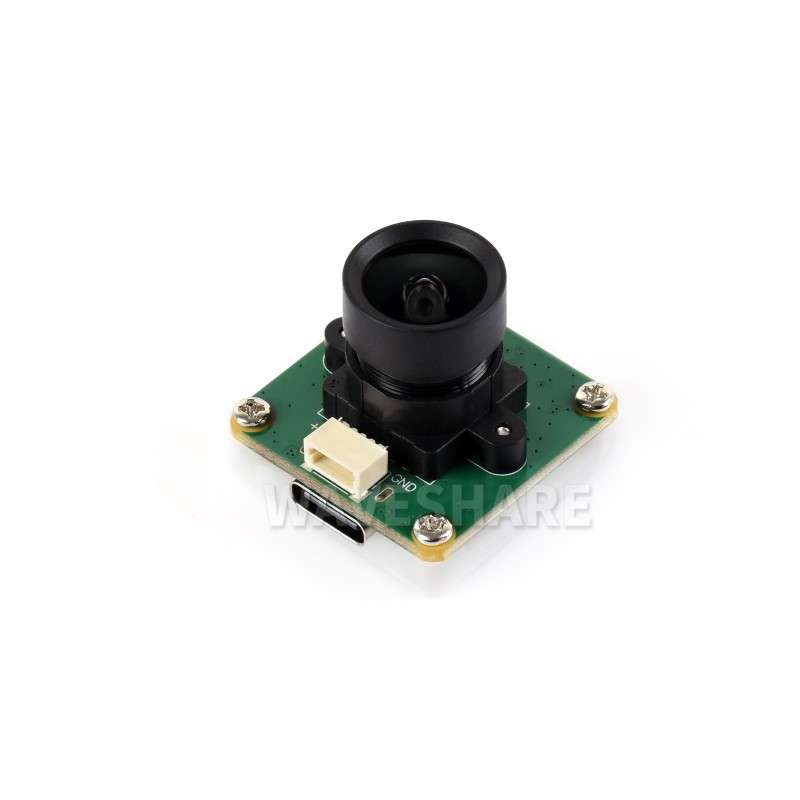

OV2735 2MP USB Camera (A), Supports USB2.0 Type-C Port And SH1.0 4PIN Header (WS-33122)
WS-33122
€18.33
14.90 € tax excl.
OV2735 2MP USB Camera (A), Supports USB2.0 Type-C Port And SH1.0 4PIN Header (WS-33122)
OV2735 2MP USB Camera (A), Supports USB2.0 Type-C Port And SH1.0 4PIN Header (WS-33122)
OV2735 2MP USB Camera (A), supports USB2.0 Type-C port and SH1.0 4PIN header
OV2735 USB camera
2MP | USB2.0 Type-C port | 96° FOV
Specifications
| Pixels | 2MP | |
|---|---|---|
| Sensor | OV2735 | |
| Interface | USB2.0 Type-C port / SH1.0 4PIN header | |
| Camera | Sensor size | 1/2.7 inch |
| Aperture (F) | 2.7 | |
| Focal length (EFL) | 2.88mm | |
| Field of view (FOV) | 96° | |
| Distortion | <-0.2% | |
| Focusing | Fixed-focus | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 1920 × 1080 | |
| Video recording | 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Operating voltage | 5V ± 5% | |
| operating temperature | 0°C ~ 50°C | |
| Module size | 25.00 × 25.00 (mm) | |
2MP resolution
Supports 1080P 30 FPS output
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -0.2%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* in the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included
Pinout Definition
Onboard two types of connectors
Connecting via USB Type-C port
Connecting via 1.0mm pitch 4PIN header
Outline dimensions
Balenie Obsahuje / Package Content
- OV2735 2MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
