2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Degree Durable (WS-34019)
WS-34019
€121.77
99.00 € tax excl.
2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Degree Durable (WS-34019)
2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Degree Durable (WS-34019)

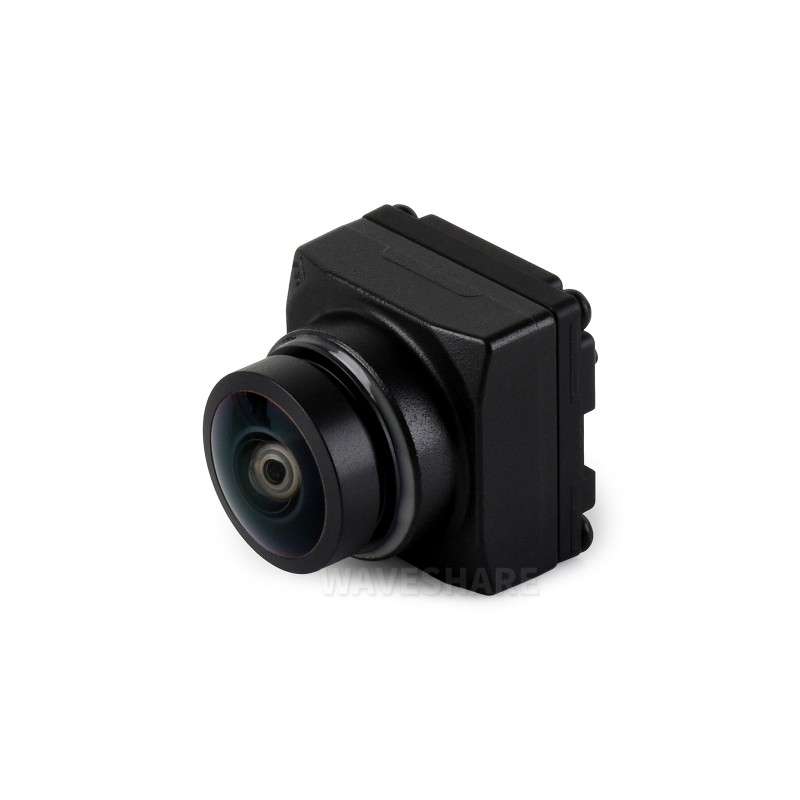

2MP GMSL Camera Module, Automotive-grade Image Sensor, Built-in ISP, AA Lens, IP67 Protection Degree And More Durable
GMSL 2MP Camera
2MP | IP67 Water-resistant | GMSL2 communication protocol
Product Introduction
The GMSL-2MP-Camera-A camera module adopts a 2MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717F GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
Specifications
| Sensor | Model | 2.51MP RGGB | |||
|---|---|---|---|---|---|
| Resolution | 1920 × 1080 | ||||
| CMOS Size | 1/2.57inch | ||||
| Pixel Size | 3.0 × 3.0 (um) | ||||
| Camera | FOV | 195°(H) × 152°(V) | |||
| Aperture | 2 | ||||
| Focal Length | 1.51mm | ||||
| Depth of Field | 0.083 m ~ ∞ (fixed focus at 0.4 m) | ||||
| Distortion | < -155% | ||||
| ISP | Built-in | ||||
| Frame Rate | 1920 × 1080 at 30fps | ||||
| High Dynamic Range | Supported | ||||
| LED Flicker Mitigation | Supported | ||||
| Output Format | YUV422 at 8bit | ||||
| Serializer | Model | MAXIM MAX96717F | |||
| I2C Address | 0x80 (8-bit address) | ||||
| Camera Interface | Fakra Z-Coded connector | ||||
| Operating Voltage | 9 ~ 12V PoC | ||||
| Operating current | < 200mA@12V | ||||
| Operating Temperature | -40°C ~ 85°C | ||||
| Protection Grade | IP67 | ||||
Application Example
* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
Balenie Obsahuje / Package Content
- GMSL-2MP-Camera-A x1
- GMSL camera cable ~2m (coaxial cable with dual female connectors) x1
